Revision 4 Foundation Fieldbus RMA803 Remote Indicator User's Guide Page 117
Table 42: Remote Indicator Major Assemblies
(Refer to Figure 27)
Key No.
Part Number Description
Quantity
Per Unit
2 50049832-501
50049832-521
End Cap, Display (Aluminum)
End Cap, Display (Stainless Steel)
1
See Fig. 26
3 50075472-533
50075472-534
Terminal Assy FF/PB without Lightning protection
Terminal Assy FF/PB with Lightning protection
1
4 50049846-501 Advanced Display 1
See Fig. 26
5 50049849-507
50049849-508
FF Electronics Module Assembly (PWA) without Reed sensor
FF Electronics Module Assembly (PWA) with Reed sensor
1
See Fig. 26
6 50049915-501 External Zero, Span & Config Buttons 1
K1 30757503-005 Electronics housing seals kit (includes O-rings) 1

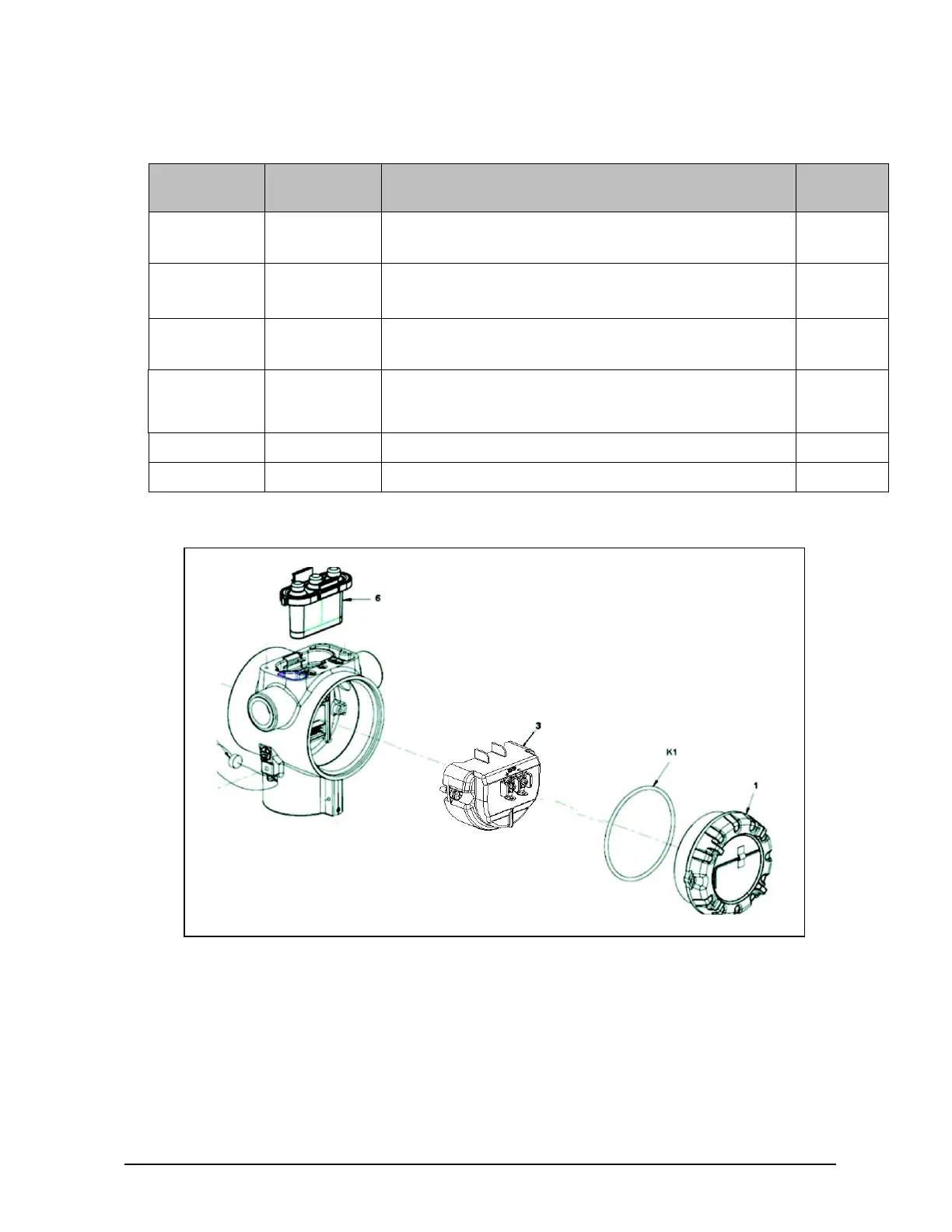

Figure 27: Electronic Housing, Terminal Block End
