Page 12 Foundation Fieldbus RMA803 Remote Indicator User's Guide Revision 4
Mounting Dimensions
Refer to Honeywell drawing number 51455045
*
for detailed electronic housing dimensions. Refer
to Honeywell drawing numbers 32306827
*
for detailed pipe mounting dimensions and 50124813
*
for detailed wall mounting dimensions. Abbreviated overall dimensions are also shown on the
Specification Sheets for the Remote Indicator models. This section assumes that the mounting
dimensions have already been taken into account and the mounting area can accommodate the
Remote Indicator.
* Honeywell drawings can be supplied on request.
Bracket Mounting Procedure
1. Align the two mounting holes in the Remote Indicator with the two slots in the mounting bracket
and assemble the (2) M8 hex cap screws, (2) lockwashers and (2) flat washers provided. Rotate
Remote Indicator assembly to the desired position and torque the M8 hex cap screws to 27,0
Nm/20,0 Lb-ft maximum.
Pipe Mount Option: Refer to Figure 4
2. Position the bracket on a 2-inch (50.8 mm) horizontal or vertical pipe, and install a “U” bolt around
the pipe and through the holes in the bracket. Secure the bracket with the nuts, flat washers and lock
washers provided.
3. Wall Mount Option: Position the bracket on the mounting surface at the desired location and secure
the bracket to the mounting surface using the appropriate hardware (Wall mounting hardware
requirements to be determined and supplied by the end user).

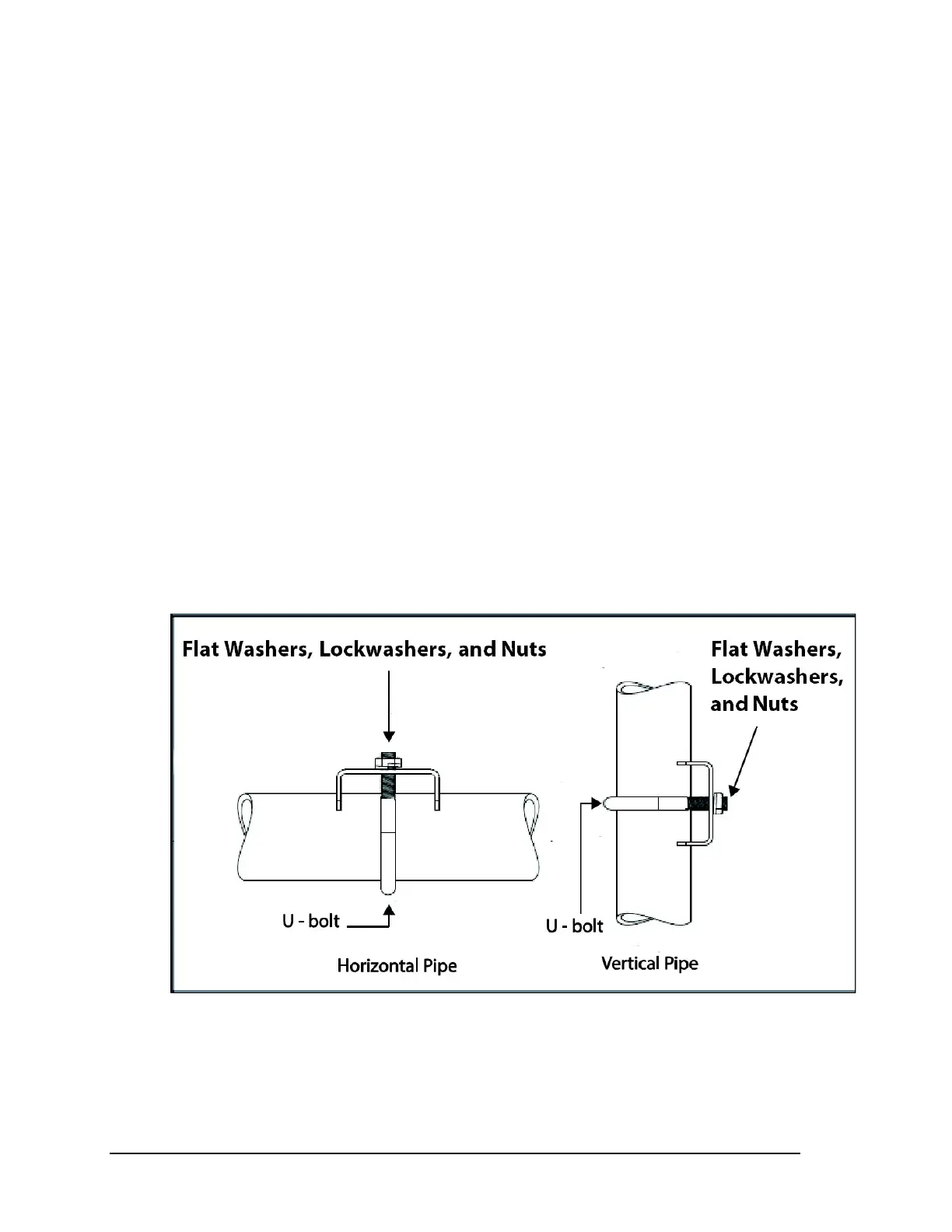

Figure 4: Pipe Mounting Bracket Secured to a Horizontal or Vertical Pipe
