Honeywell SmartLine RMA800 User Manual

Revision 4 Foundation Fieldbus RMA803 Remote Indicator User's Guide Page 23
The following procedure outlines the steps for positioning the write protect and failsafe jumpers on
the electronics module. See Figure 7 for the locations of the failsafe and write protect jumpers.

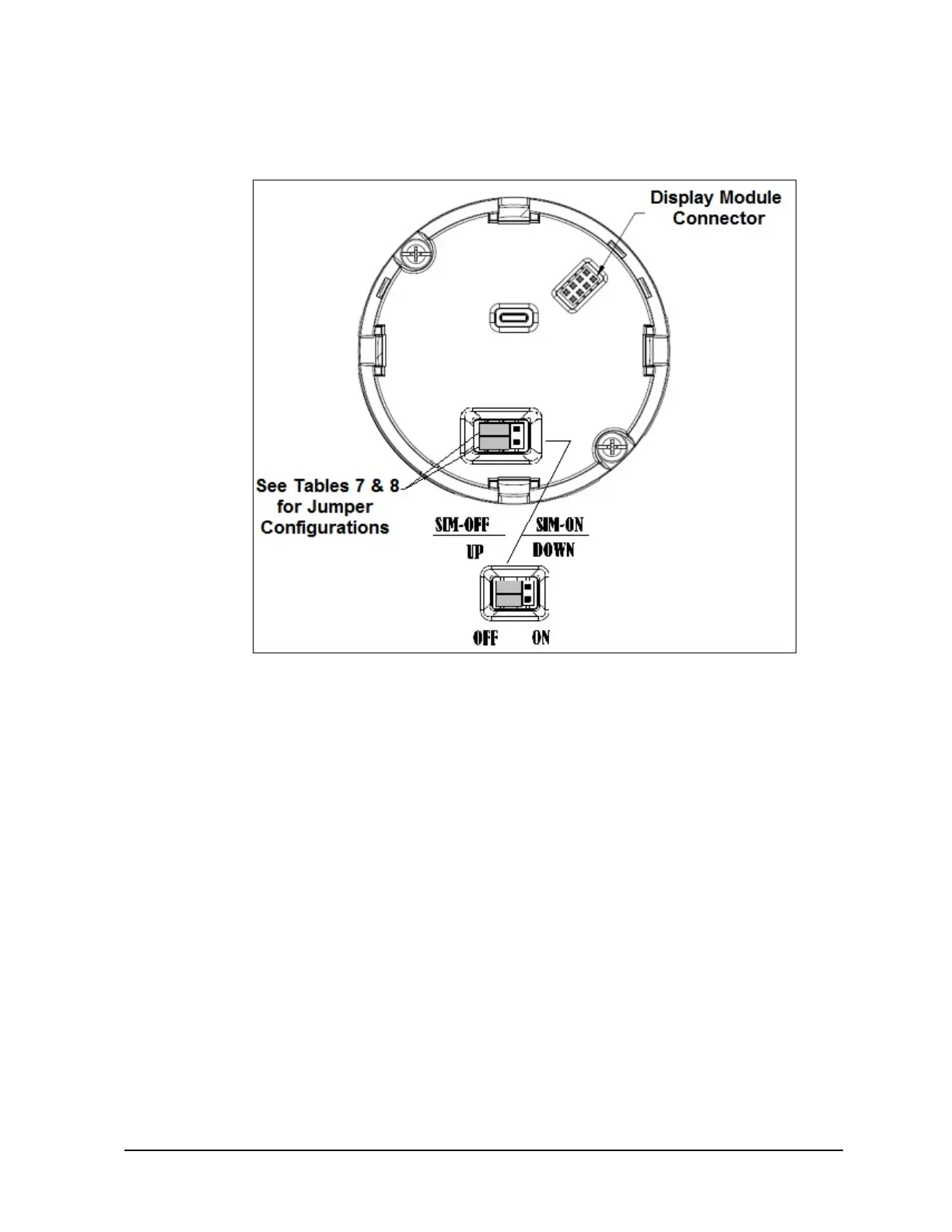

Figure 7: Locating Simulation and Write Protect Jumpers

Honeywell SmartLine RMA800 Specifications

General

Brand	Honeywell
Model	SmartLine RMA800
Category	Touch Panel
Language	English
