Page 24 Foundation Fieldbus RMA803 Remote Indicator User's Guide Revision 4

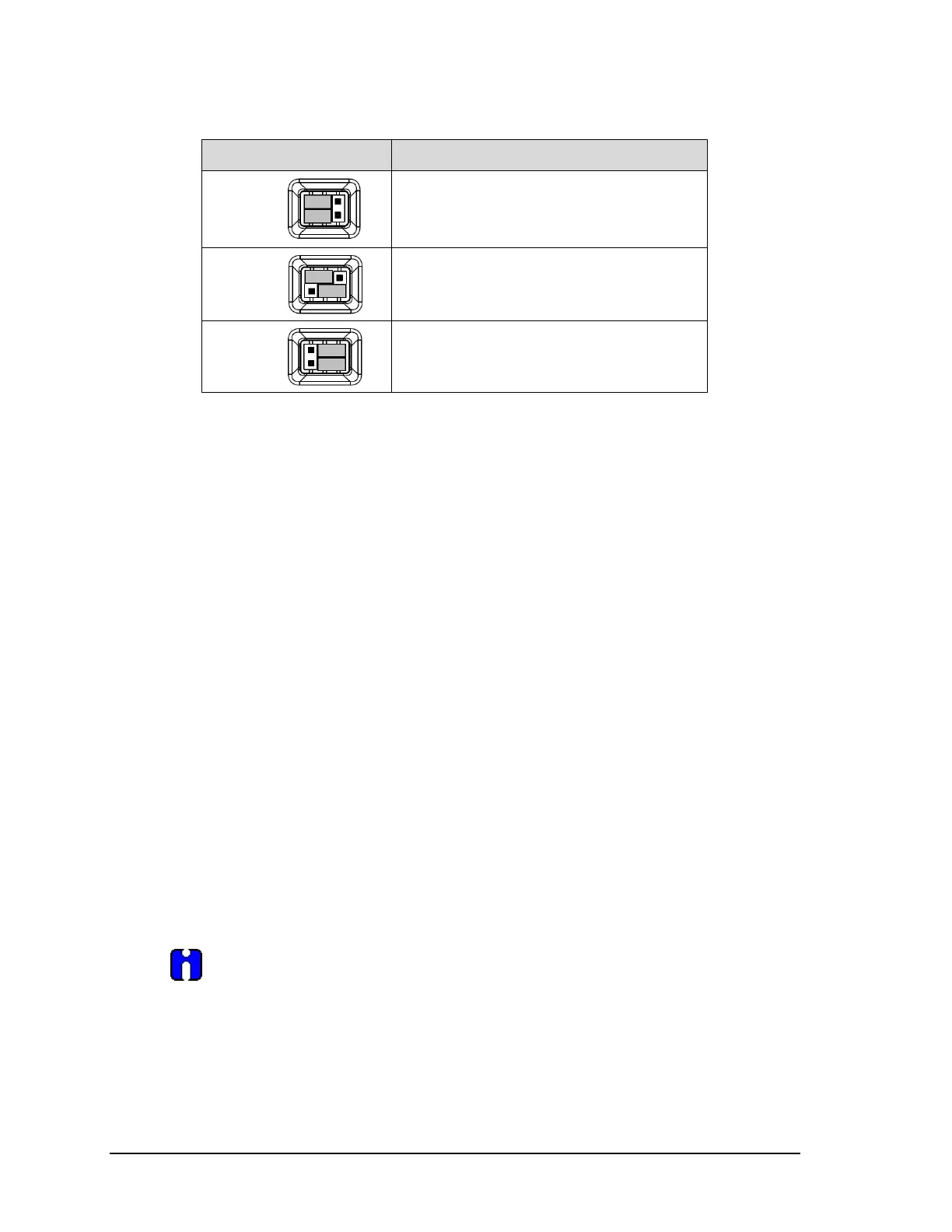

Table 11: Fieldbus Simulation and Write Protect Jumpers
Image Description
Fieldbus Simulation Mode = OFF
Write Protect = OFF (Not Protected)
Fieldbus Simulation Mode = OFF
Write Protect = ON (Protected)
Fieldbus SIM Mode = ON
Write Protect = ON (Protected)
1. Turn OFF Remote Indicator power (Power removal is only required in accordance with
area safety approvals. Power removal is only required in Class 1 Div 1 Explosion proof
and Class 1 Div 2 environments).
2. Loosen the end cap lock, and unscrew the end cap from the electronics side of the Remote
Indicator housing.
3. If equipped with a Display module, carefully depress the two tabs on the sides of the
Display Module, and pull it off.
4. If necessary, unplug the interface connector from the Communication module. Do not
discard the connector.
Set the Failsafe Jumper (top jumper) to the desired position (UP or DOWN).
If applicable, re-install the Display module as follows:
• Orient the display as desired.
• Install the Interface Connector in the Display module such that it will mate with the
socket for the display in the Communication module.
• Carefully line up the display, and snap it into place. Verify that the two tabs on the
sides of the display latch.
NOTE: Installing a Display Module into a powered Remote Indicator may cause a temporary upset
to the loop output value.
Orient the Display for proper viewing through the end cap window. You can rotate the meter
mounting orientation in 90
o
increments.
5. Restore Indicator power if removed.
