Honeywell SPZ-8000 - Inertial System Display Unit Leading Particulars

2. c.
I

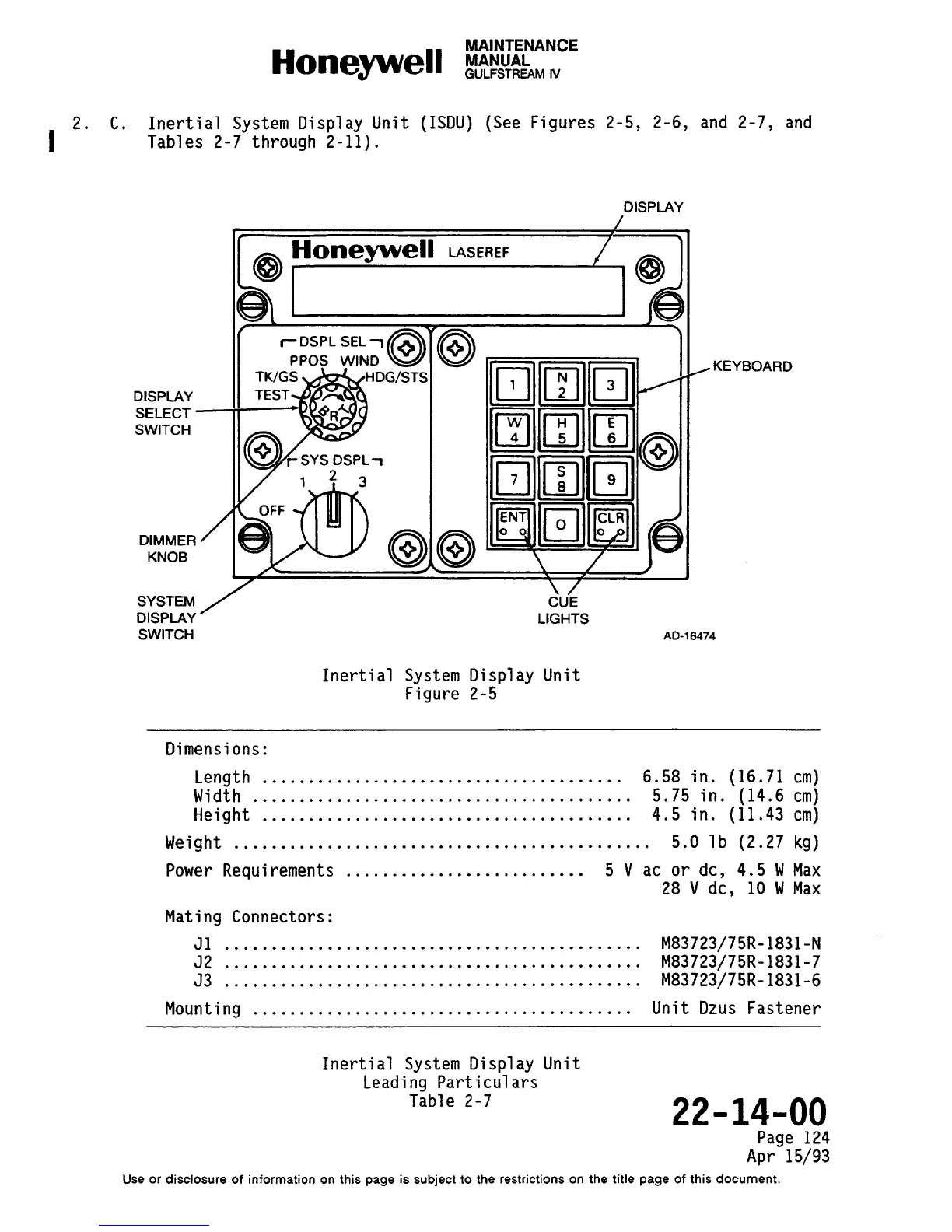

Inertial System Display Unit (ISDU) (See Figures 2-5, 2-6, and 2-7, and
Tables 2-7 through 2-11).
DISPLAY
SELECT
SWITCH
DIMMER
KNOB
DISPLAY
*
@l
Honeywell LASEREF
‘d
e
DG/STS
I
@@
KEYBOARD
SYSTEM /
DISPLAY
SWITCH
Inertial
CUE
LIGHTS
AD- I 6474
System Display Unit
Figure 2-5
Dimensions:
Length .......................................
6.58 in. (16.71 cm)
Width
.........................................
5.75 in. (14.6 cm)
Height ........................................
4.5 in. (11.43 cm)
Weight .............................................
5.0
lb (2.27 kg)
Power Requirements .......................... 5Vacordc, 4.5 WMax
Mating Connectors:
J1 .......................................
......
.............................................
:; .............................................
Mounting .........................................
28 V dc, 10 W Max
M83723/75R-1831-N
M83723/75R-1831-7
M83723/75R-1831-6
Unit Dzus Fastener
Inertial System Display Unit
Leading Particulars
Table 2-7
22-14-00
Page 124
Apr 15/93
Use or disclosure of information on this page is subject to the restrictions on the title page of this document.
