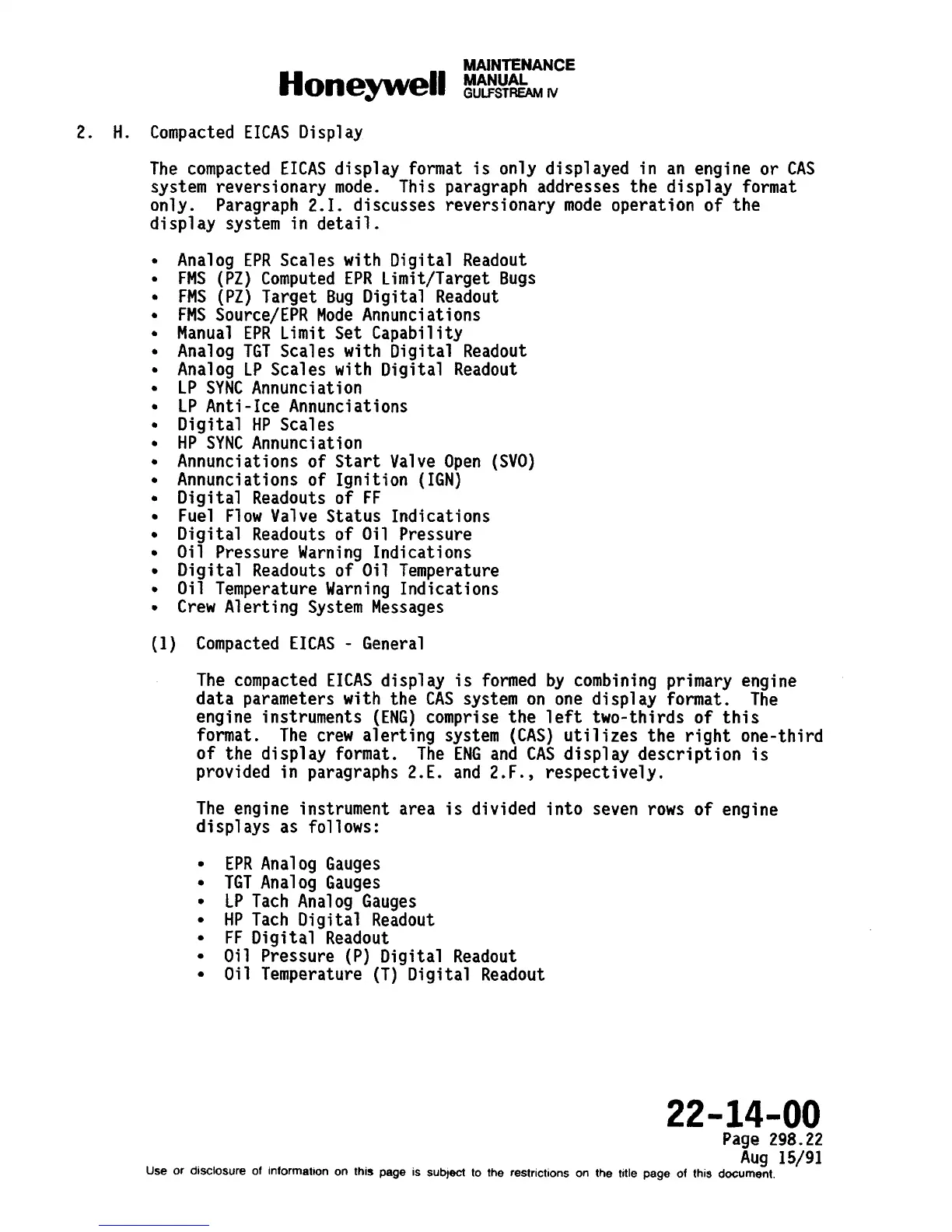

2. H. Compacted EICAS Display
The compacted EICAS display format is only displayed in an engine or CAS
system reversionary mode.
This paragraph addresses the display format
only. Paragraph 2.1. discusses reversionary mode operation of the
display system in detail.
(1)
Analog EPR Scales with Digital Readout
FMS (PZ) Computed EPR Limit/Target Bugs
FMS (PZ) Target Bug Digital Readout
FMS Source/EPR Mode Annunciations
Manual EPR Limit Set Capability
Analog TGT Scales with Digital Readout
Analog LP Scales with Digital Readout
LP SYNC Annunciation
LP Anti-Ice Annunciations
Digital HP Scales
HP SYNC Annunciation
Annunciations of Start Valve Open (SVO)
Annunciations of Ignition (IGN)
Digital Readouts of FF
Fuel Flow Valve Status Indications
Digital Readouts of Oil Pressure
Oil Pressure Warning Indications
Digital Readouts of Oil Temperature
Oil Temperature Warning Indications
Crew Alerting System Messages
Compacted EICAS - General
The compacted EICAS display is formed by combining primary engine
data parameters with the CAS system on one display format. The
engine instruments (ENG) comprise the left two-thirds of this
format.
The crew alerting system (CAS) utilizes the right one-third
of the display format.
The ENG and CAS display description is
provided in paragraphs 2.E. and 2.F., respectively.
The engine instrument area is divided into seven rows of engine
displays as follows:
● EPR Analog Gauges
● TGT Analog Gauges
● LP Tach Analog Gauges
. HP Tach Digital Readout
. FF Digital Readout
“ Oil Pressure (P) Digital Readout
. Oil Temperature (T) Digital Readout
22-14-00
Page 298.22
Aug 15/91
