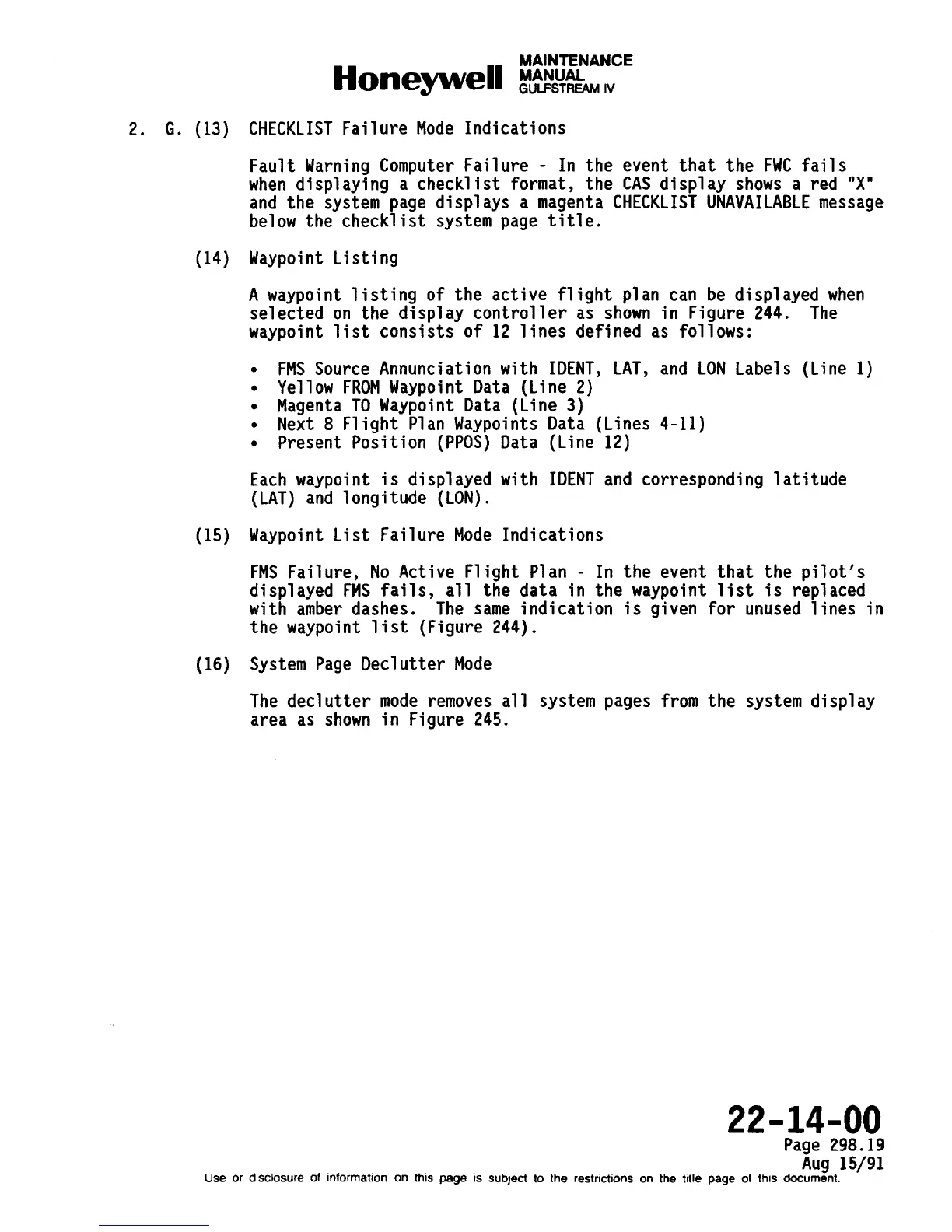

2. G. (13) CHECKLIST Failure Mode Indications
Fault Warning Computer Failure - In the event that the
FWC fails
when displaying a checklist format, the CAS display shows a red “X”
and the system page displays a magenta CHECKLIST UNAVAILABLE message
below the checklist system page title.
(14)
Waypoint Listing
A waypoint listing of the active flight plan can be displayed when
selected on the display controller as shown in Figure 244. The
waypoint list consists of 12 lines defined as follows:
. FMS Source Annunciation with IDENT, LAT, and LON Labels (Line 1)
. Yellow FROM Waypoint Data (Line 2)
. Magenta TO Waypoint Data (Line 3)
c Next 8 Flight Plan Waypoints Data (Lines 4-11)
c Present Position (PPOS) Data (Line 12)
Each waypoint is displayed with IDENT and corresponding latitude
(LAT) and 1
ongi tude (LON).
(15) Waypoint List Failure Mode Indications
FMS Failure, No Active Flight Plan - In the event that the pilot’s
displayed FMS fails, all the data in the waypoint list is replaced
with amber dashes. The same indication is given for unused lines in
the waypoint list (Figure 244).
(16) System Page Declutter Mode
The declutter mode removes all system pages from the system display
area as shown in Figure 245.
22-14-00
Page 298.19
Aug 15/91
