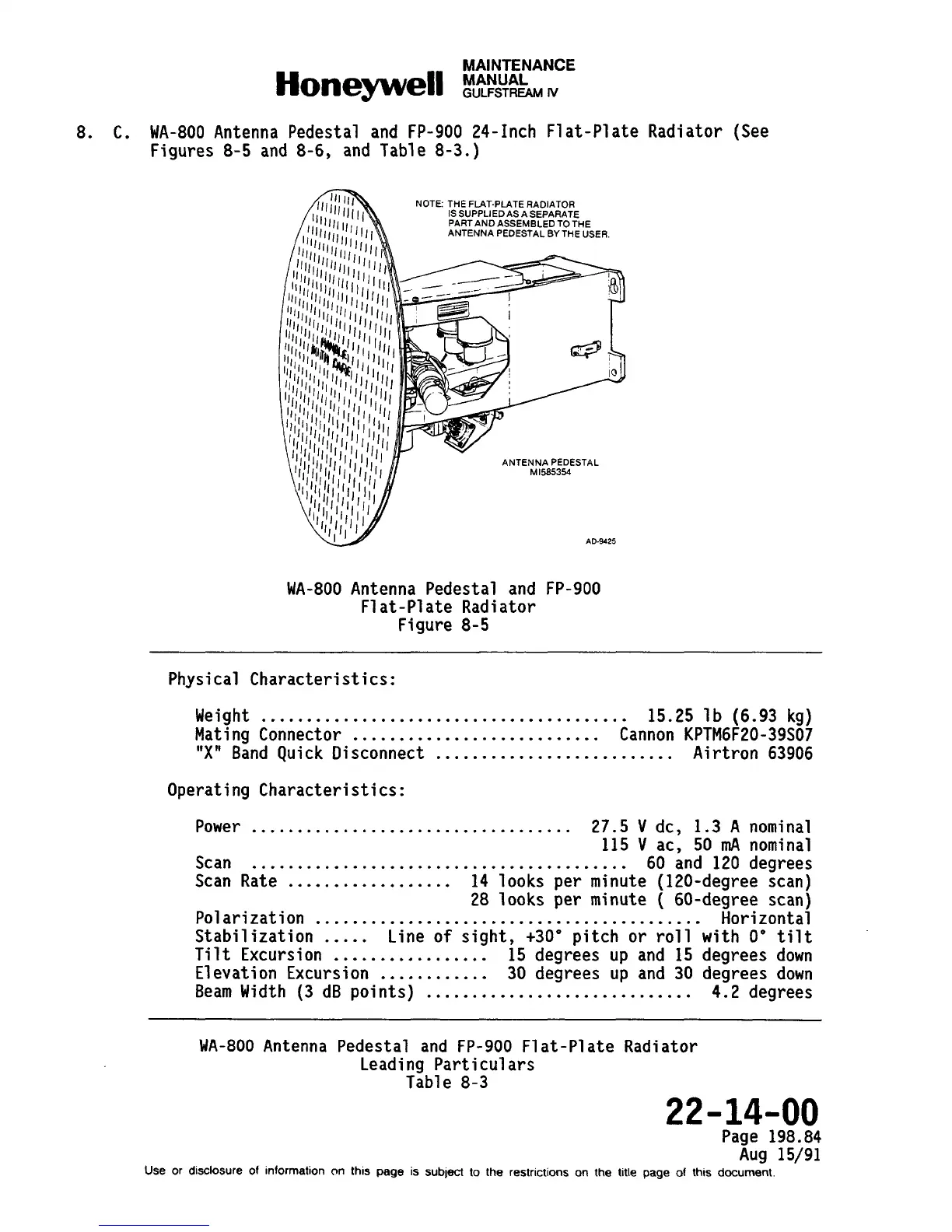

8. C. WA-800 Antenna Pedestal and FP-900 24-Inch Flat-Plate Radiator (See
Figures 8-5 and 8-6, and Table 8-3.)
D
111//];/(,,
NOTE: THE FLAT-PLATE RAOIATOR
‘111111,, ,
IS SUPPLIED AS A SEPARATE
Ill,,
PART AND ASSEMBLED TOTHF
,I; ;:! II IJ,}]
ANTENNA PEDESTAL BY iH”i i.kER,
i~!ij~
\
ANTENNA PEDESTAL
M15S5354
u
‘W’ll,l,,,,,
“1] .,,, !
ll’’1l’11,},,
“1
‘4,41,
01,
11, ,
‘h 11,I
‘1
AD.9425
WA-800 Antenna Pedestal and FP-900
Flat-Plate Radiator
Figure 8-5
Physical Characteristics:
Weight
........
● ...............................
15.25
lb (6.93 kg)
Mating Connector
.. .. .......... .. ... .. .. ....
Cannon KPTM6F20-39S07
“X” Band Quick Disconnect
...... .......... .. .. ......
Airtron 63906
Operating Characteristics:
Power
...................................
27.5 V dc, 1.3 A nominal
115 V ac, 50 mA nominal
Scan
.........................................
60 and 120 degrees
Scan Rate ..................
14 looks per minute (120-degree scan)
28 looks per minute ( 60-degree scan)
Polarization
..........................................
Horizontal
Stabilization .....
Line of sight, +30° pitch or roll with 0° tilt
Tilt Excursion .................
15 degrees up and 15 degrees down
Elevation Excursion ............
30 degrees up and 30 degrees down
Beam Width (3 dB points)
.............................
4.2 degrees
WA-800 Antenna Pedestal and FP-900 Flat-Plate Radiator
Leading Particulars
Table 8-3
22-14-00
Page 198.84
Aug 15/91
Use or disclosure of information cm this page is subpecf to the restrictions on the title page of thm document,
