4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms. 143
Vigilon 4/6 loops & Compact (VA) panels & network nodes
Appendix C - Guidelines for standalone system commands
Sectors
¨
There can be up to 32 sectors per loop
¨
a Sector is a collection of devices on the same loop having a common action
¨
a Sector that is actioned ON will activate its alarm
devices, such as interface outputs, S Cubed, S-Quad and
DAU devices.
a sector can be configured to give one of three signals
•
Signal 1 Alert (priority 3)
•
Signal 2 Evacuate (priority 2)
•
Signal 3 Continuous (priority 1).
¨
Sectors 1-28 operate automatically with ‘Sound Alarms’
and ‘Silence Alarms’ buttons
¨
a Sector (any one of 1-28) that is configured for NO
action on ‘Sound Alarms’ button being pressed will be
silenced on operation of the ‘Reset’ button
¨
the Sectors 29-32 are independent of the ‘Sound Alarms’
button and are primarily used for the control of plant
equipment. However, the Sectors 29-30 can be
configured to normal sector operation
¨
sensors, call points and interface inputs may be assigned
to more than one Sector
¨
a loop powered interface is assigned to a Sector and
consequently the inputs and outputs lines of that interface
will be assigned to the same Sector
¨
S4 devices having alarm sounder and interface outputs are
restricted to one Sector only
¨
for Voice alarm panel there can be up to 10 Voice Alarm
Zones
¨
Voice alarm zone are push button switches on the Voice
alarm control panel that can be assigned to Sectors
¨
any normal Sector (1-28) can be assigned to any Voice
alarm zone (1-10).

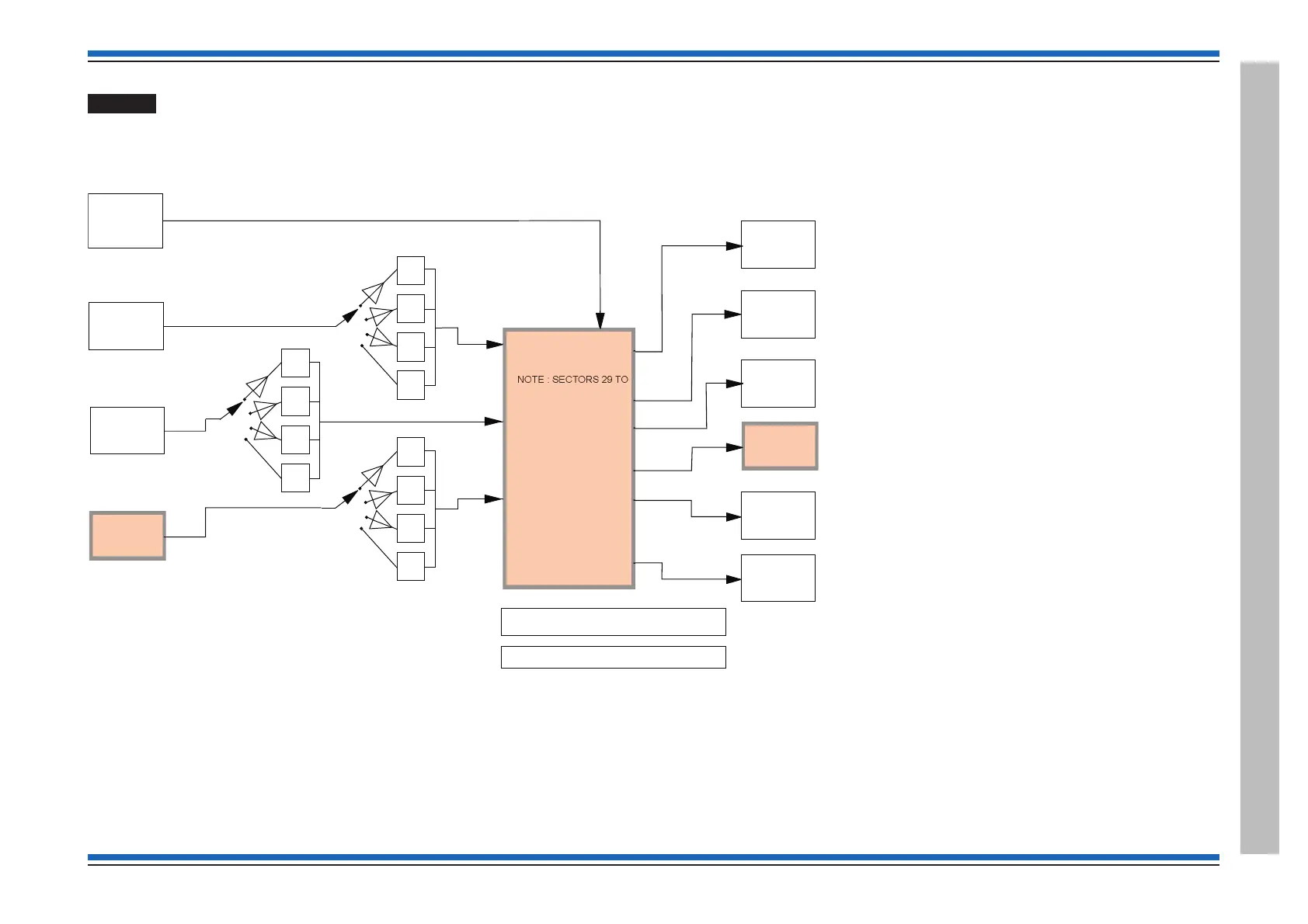

* I/O LINES MAY BE SECTORED INDIVIDUALLY FOR STANDARD MAINS POWERED
INTERFACE UNITS AND NOT FOR LOOP POWERED INTERFACE UNITS.
DELAY
BLOCK
COMMAND
BUILD
TRIGGER
ACTION
ACTION
ASSIGN
NOTE : SECTORS 29 TO
DELAY
BLOCK
ACTION
COMMAND
BUILD
SECTOR
That has just
come into fire
SIGNAL
1
2
SIGNAL
3
SIGNAL
SIGNAL
1
2
SIGNAL
3
SIGNAL
NO
ACTION
SIGNAL
1
2
SIGNAL
3
SIGNAL
ACTION
ACTION
DEVICES
& I/O LINES
WITHIN A
SECTOR
*
DEFAULT: SIGNAL-1 = ALERT
SIGNAL-2 = EVACUATE
SIGNAL-3 = CONTINUAL
SECTOR
NOTE : A SECTOR CAN ONLY ACTION OTHER LINKS
IF THE FIRE IS AT A DEVICE ASSIGNED TO THAT SECTOR.
ASSIGN
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
MASTER
SECTOR
ASSIGN
VOICE ALARM
ZONES
NOTE: VOICE ALARM ZONES ARE PUSH BUTTON
CONTROLS ON THE MAIN PANEL.
AUX
RELAYS
ACTION
SECTOR
32 SECTORS
PER LOOP
32 ARE FOR
SPECIAL USE
SETUP THE SECTOR
TO DE-ENERGIZE ON
SILENCE ALARMS
OR RESET
BUTTON
NO
ACTION
NO
ACTION
