Honeywell Vigilon 4 loop - Fitting the Inner Door

Fitting the inner door
¨

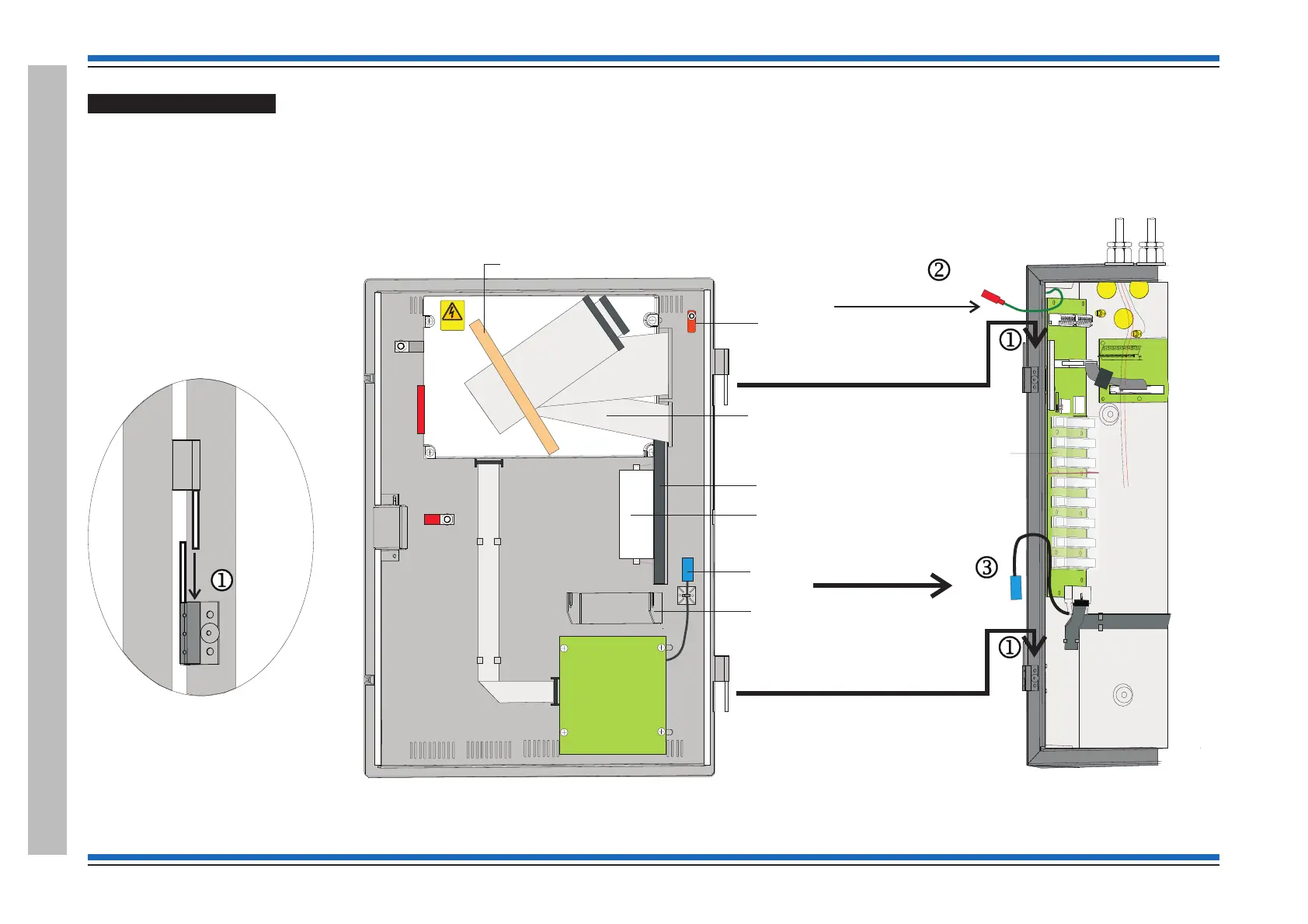

Locate the hinge pins on the inner door assembly into the two hinge pin holes j on the backbox outer face.
¨
Fit the earth lead from the backbox to the inner door spade connector k.
¨
Fit together the two blue connectors of the printer 0V leads l, the leads are located at the inner door and backbox intersection.
Commissioning instructions
24 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Vigilon 4/6 loop Panels
Earth to
inner door
Cables of external circuits
Printer 0V
Transparent
cover over
backplane
WARNING
REMOVAL OF COVER
EXPOSES HIGHVH
VOLTAGES
Transit position of
printer paper roll
and holder pin held
together with an elasticband
Hinge point
Paper roll
holder bracket
Connector for
printer 0V
Earth spade
for connection from
backbox
Inner door
Preformed ribbon
cables held together
under masking tape
to be fitted during
commissioning
Card guide
Danger
Masking tape
BACKBOX (Part view)
Backbox
Inner
door
locating
the hinge pin
