Vigilon Compact Panel
The following procedures assume the fire alarm control panel is installed, with cables terminated at the backbox and with the inner and outer doors fitted. Also the protective cover fitted over the Master
control board (MCB) inside in the backbox has been removed.
¨

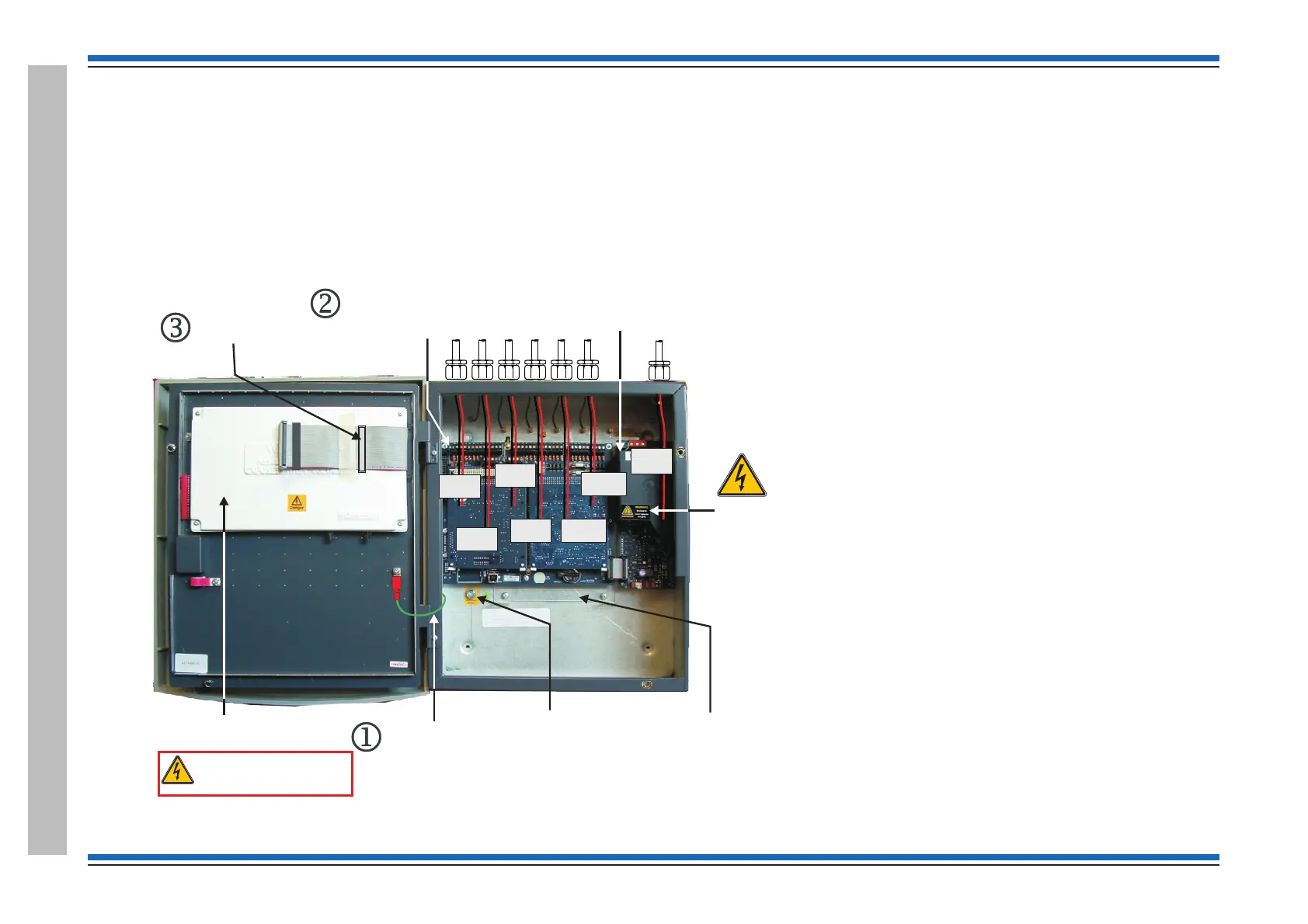

Connect the flying earth lead j from the back box to the inner door spade connector.
¨
If not already done remove the protective cover k fitted over the Master control board inside in the backbox.
¨
Connect the ribbon cable l from the Display KEYBOARD (DKC) to the socket marked 'KEYBOARD' on the Master control board. Secure the ribbon cable to the side of the
enclosure using the cable clamp provided.
Commissioning instructions
34 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Vigilon Compact Panel
ESD Earth
Bonding point
Inner door
Cardboard cover protecting
the Master Control Board
and Loop Card
Plastic cover
protecting PSU
REMOVAL OF COVER
EXPOSES HIGH VOLTAGE
WARNING
Earth lead from
back box to inner door
Cover to protect the
Display and keyboard PCB
Warning
removal
of cover
exposes
live parts
Battery
bracket
Back box
Ribbon cable
and clamp
MAINS
SUPPLY
LOOP 1
END 1
LOOP 1
END 2
Master
alarms 1
Master
alarms 2
NET 1
END 2
NET 1
END 1
