Settings on the DKC
The links and pot on the DKC are factory configured as shown below.
Control buttons
&
The emergency control buttons MUST always be left in an enabled state, with the
'control buttons' link fitted.
There is no indication given at the panel when the links are set for inactive
controls.
Display Contrast
¨
The display contrast is set using the Pot RV1 on the DKC, which is factory adjusted
for optimum contrast. You can also adjust the contrast using the menu option under
[Test/Eng].
"
The contrast adjustment function using the menu options may not be
applicable for some older build of panels.
Address and baud rate
"
The node and domain addresses can be changed from the factory settings to
a required address using the panel [Test/Eng] menus.
Zone indicators
The Zone indicators are enabled for normal operation at the control panel and must NOT be
disabled.
The Zone indicators are not applicable for a Network node or BS panel so the zone indicator links
are set in the disabled position.
Commissioning instructions
38 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.

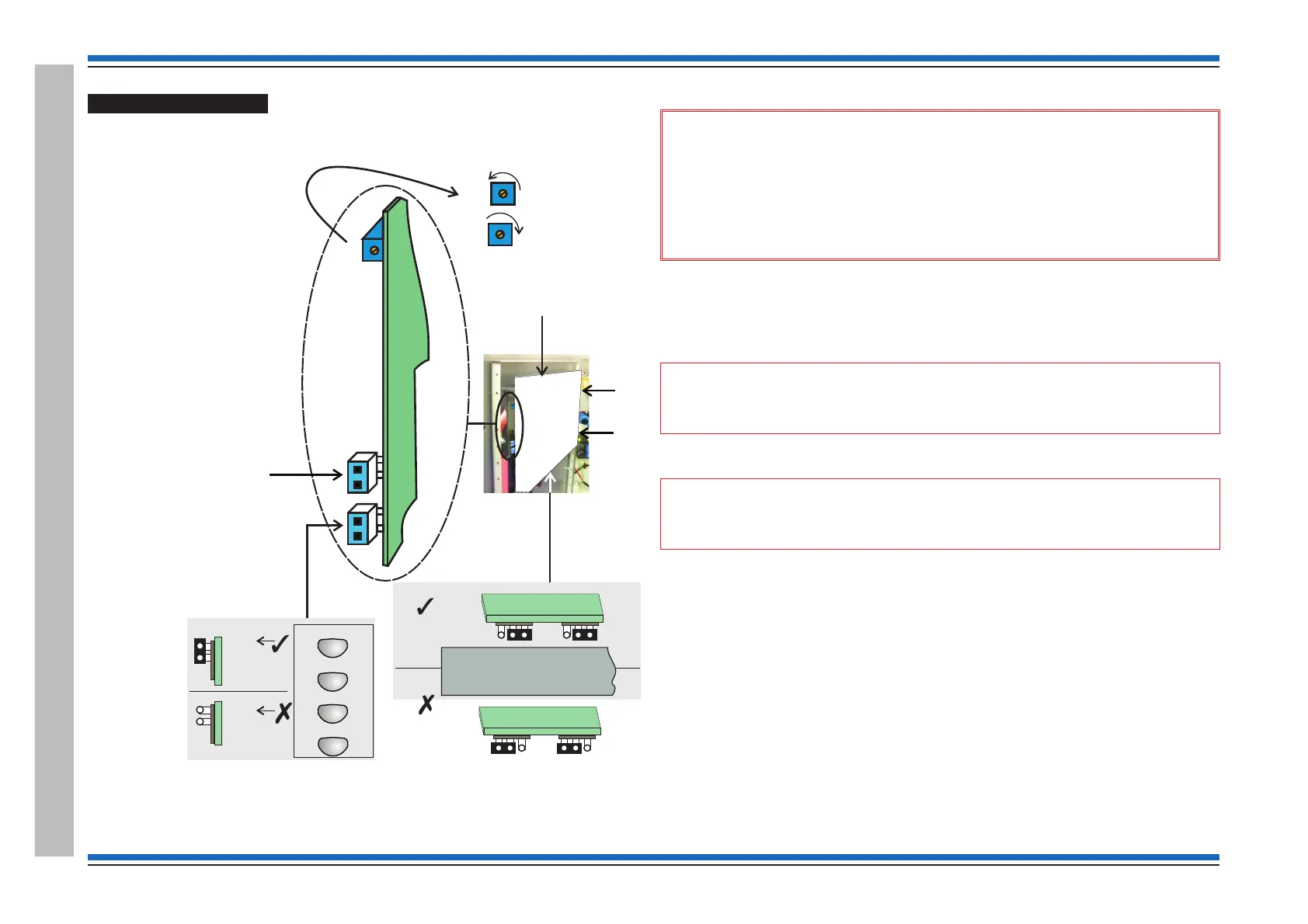

Vigilon Compact Panel
RV1
Sound Alarms
Silence Alarms
Reset
Verify
Control buttons
Inner door
1234
17 18 19 20
Zones
With Zone
indicators
(EN)
Display and
keyboard Card (DKC)
Without Zone
indicators
Network node
P6
P1
Buttons
enabled
Buttons
disabled
Factory setting
is with link fitted
RV1
LCD Contrast adjust
Clockwise -
Darker
Anti-Clockwise -
Lighter
This link is used
for keyswich application
only. Leave link fitted.
