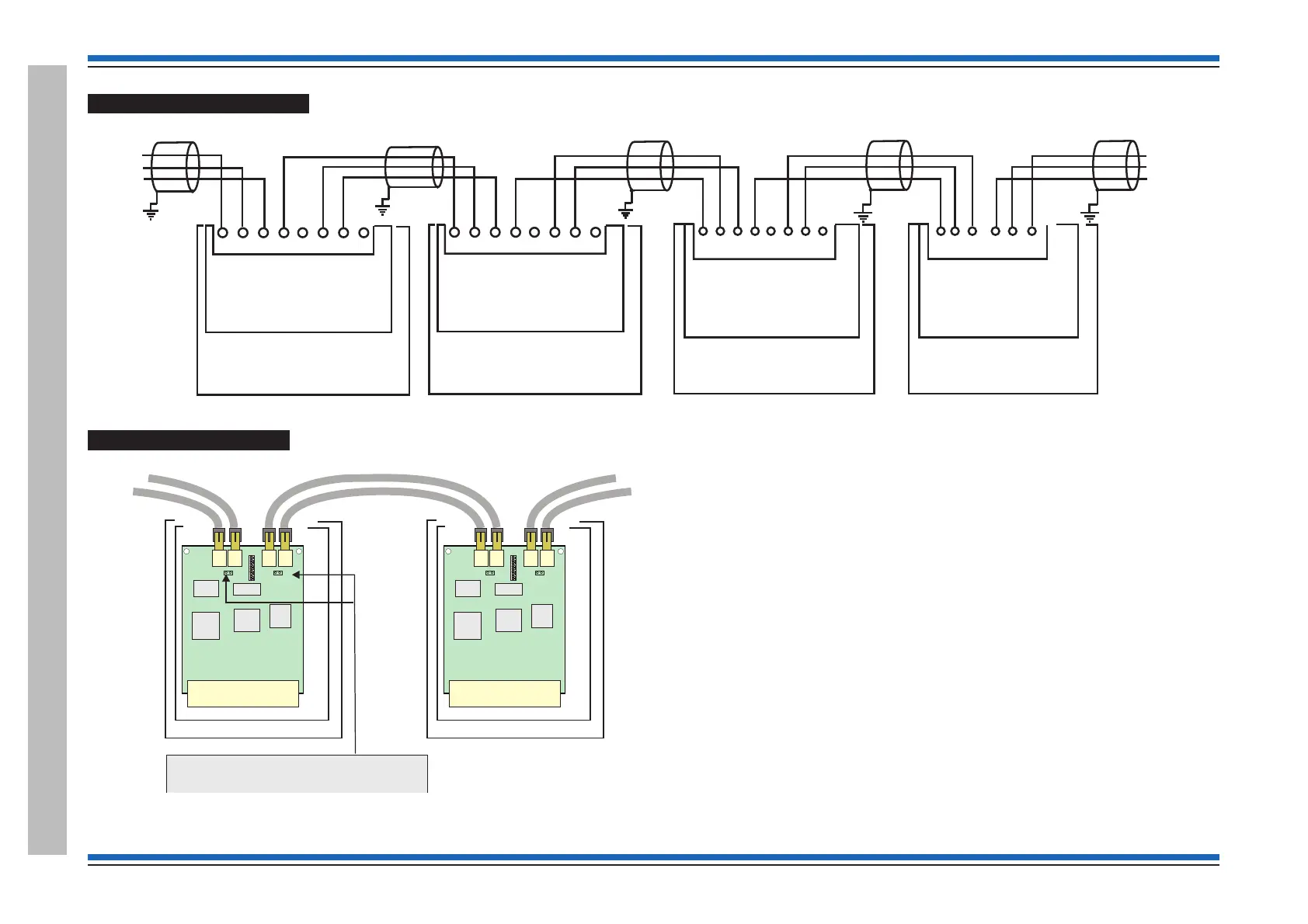

Wiring a Copper network
Wiring a Fibre network
Commissioning instructions
90 4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms.
Single Vigilon Network
C
8
7654321
BACKPLANE
Control Panel
Side 1
(End 1)
P7
Rx
P4
Tx
P6
Rx
P5
Tx
P3
P2
Links P2 and P3 are booster links.
Normally the links are not fitted, however for
distance exceeding 750m the links must be fitted.
Rx
Tx
C
8
7654321
BACKPLANE
Control Panel
P7
Rx
P4
Tx
P6
Rx
P5
Tx
P3
P2
Rx
Tx
Side 2
(End 2)
Side 1
(End 1)
Side 2
(End 2)
Cable screen
N/C
0V1 +VE1 -VE1 0V2 N/C +VE2 -VE2 N/C
P10
Connections for
Network card in
Socket P8 (Card 6)
Control Panel
P10
Connections for
Network card in
Socket P8 (Card 6)
BACKPLANE(post 08-2006)
Control Panel
0V1 +VE1 -VE1 0V2 N/C +VE2 -VE2 N/C
BACKPLANE(post 08-2006)
From
previous
panel
or node
No
connection
P10
(Pre 08-2006) BACKPLANE
OLD Legacy Control Panel
Connections for
Network card in
Socket P8 (Card 6)
12345678
0V -ve +ve 0V I -ve +ve |
Compact Control Panel
Connections for
Network card in
Socket Card 2 of MCB
0V L2- L2+ 0V L1- L1+
To Next
panel
or node
