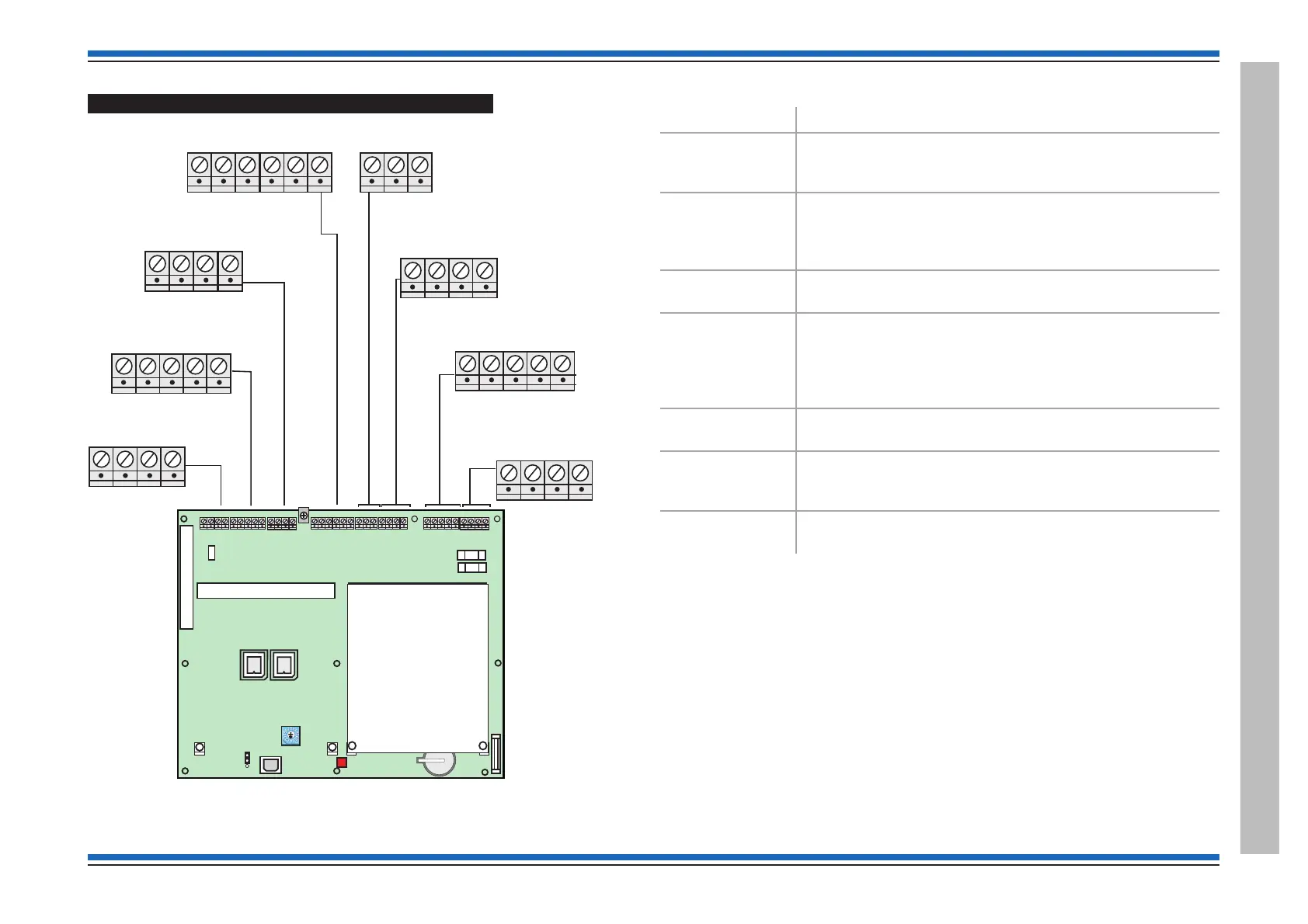

Terminals on the Master Control Board (MCB)
Descriptions of MCB terminals
Terminals Description
24V, 0V, B and A These terminals accept the connection of a repeat indicator
panel (Port 0). Also the power terminals may be used on a
Network node to supply BACnet Gateway.
NC, C and NO
Aux 1- 2-sets
Aux 2 - 1set
These are auxiliary relay contacts. The auxiliary relay 1 is
normally de-energised and operates with any fire event. The
auxiliary relay 2 is normally energised and operates
(de-energises) with any fault event.
0V, TX, A, RX
and B
These are terminals for RS232 or RS485 (Port 1 or 2
respectively).
L1, 0V, L2, 0V
(Loop 1 and
Loop 2)
These terminals accept the connection of system devices on
a loop circuit that starts at L1 and ends at L2. Devices that
are connected to the loop circuit include addressable fire
sensor/sounders, manual call points, interface units and
repeat/mimic panels.
MA1+, MA1-,
MA2+ and MA2-
These terminals can accept two master alarm circuits that
can operate 24V conventional alarm devices.
0V and MIP These are monitored input terminals that can accept the
connection of a switch. An active input will trigger Command
build 250.
NC, C and NO
(clean contact)
These are voltage free relay contacts (output) that operate
with a fire event.
4188-856_issue 7_07/15_Generic Vigilon (Compact + VA) Comms. 37
Vigilon 4/6 loops & Compact (VA) panels & network nodes
Vigilon Compact Panel
PB15
REPEAT
INDICATOR
RS-485
24V B A
0V
Master Control Board
PB8
MASTER ALARMS
MA1+
MA1- MA2+
MA2-
PB9
MONITORED INPUT
and CLEAN CONTACTS
0V
MIP
NC C NO
PB10
AUXILIARY RELAY 1
PB7
LOOP 1
L1 0V L2 0V
PB14
LOOP 2
L1 0V L2 0V
NC
C
NO
NC
C
NO
NC
C
NO
PB11
AUXILIARY RELAY 2
PB6
RS-232
TX1 RX1
0V
TX2 RX2
BATT3
PB15 PB6
PB9
P2 CARD 1
IC3
KEYBOARD
IC16
POWER
SUPPLY
P12
MA2 - FS2 250mA
MA1 - FS1 250mA
P1 CARD 2
P16
P13
SW1
RESET
24V B A
0V
TX1 RX1
0V
PB8
MA1+
MA1- MA2+
MA2-
0V
MIPNC C
NO
FIRMWARE
BACKUP
PB10
PB7
L1 0V L2 0V
24V
FS3 200mA
TX2 RX2
PB14
L1 0V L2 0V
NC
C
NO
NC
C
NO
NC
C
NO
PB11
SW2
MODE
