Honeywell XNX Technical Manual

XNX Universal Transmitter

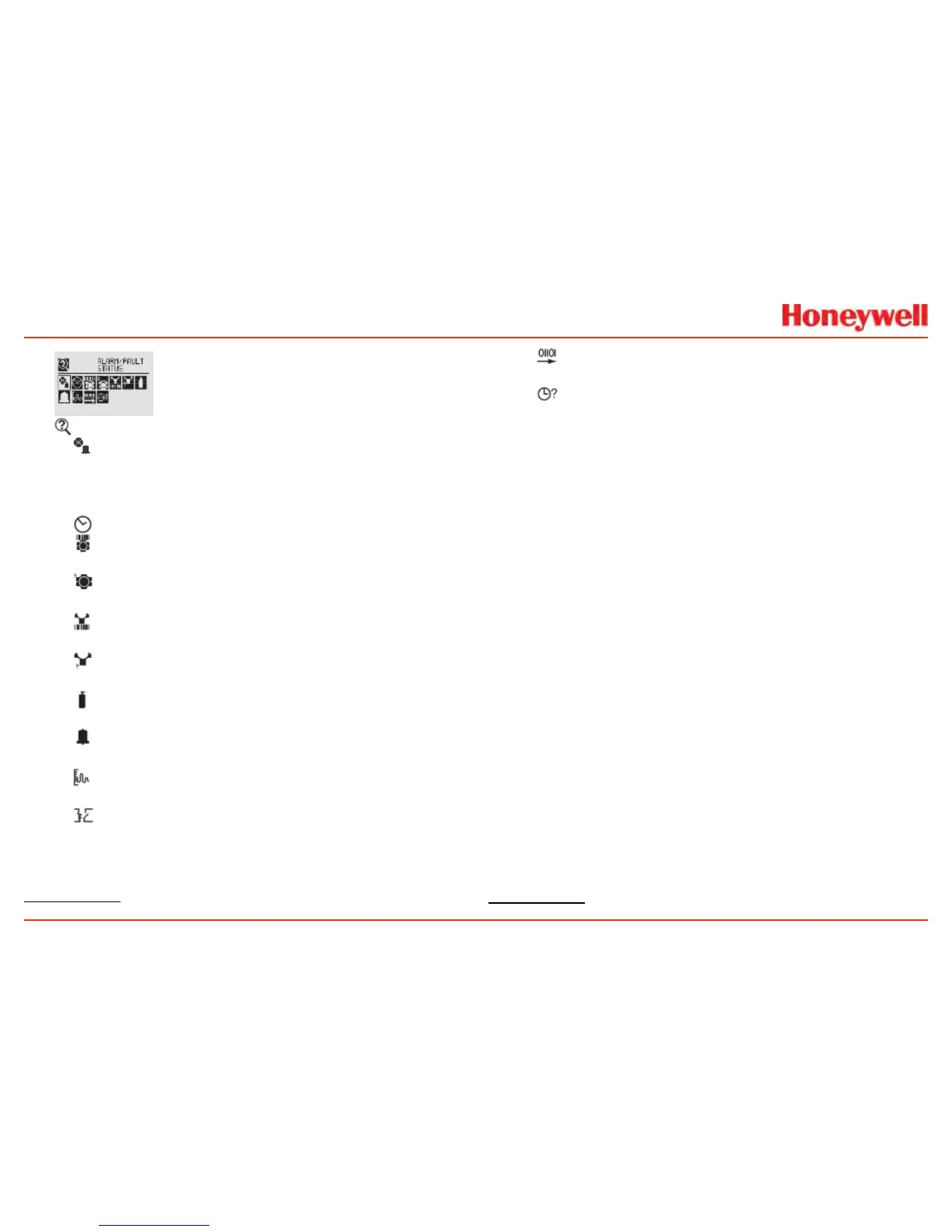

Section 1 - Introduction
24
InformationMode

Alarm/FaultStatus
  Alarm/Fault
   ConrmAlarm/FaultReset
   ResetAlarm/Fault

Date&Time

TransmitterID,Serial#,Revision
  TransmitterData

TransmitterStatus
  TransmitterStatus

SensorType,Serial#,Revision
  SensorData

SensorStatus
  SensorStatus

GasName,ID,Range
  GasData

RangeSettings,AlarmSettings
  Range/AlarmSettings

mALevelSettings
  mALevelSettings

RelaySettings
5
  RelaySettings
5Optionalrelayonly
 FieldbusSettings
6
  FieldbusSettings

EventHistory
  IncrementNext/PreviousEvent
  IncrementNext/PreviousHour
  IncrementNext/PreviousDay
  IncrementNext/PreviousAlarm
  IncrementNextPreviousFault
6

OptionalFoundationFieldbusandModbusonly

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
