Honeywell XNX Technical Manual

XNX Universal Transmitter
Section 2 - Installation and Operation
58


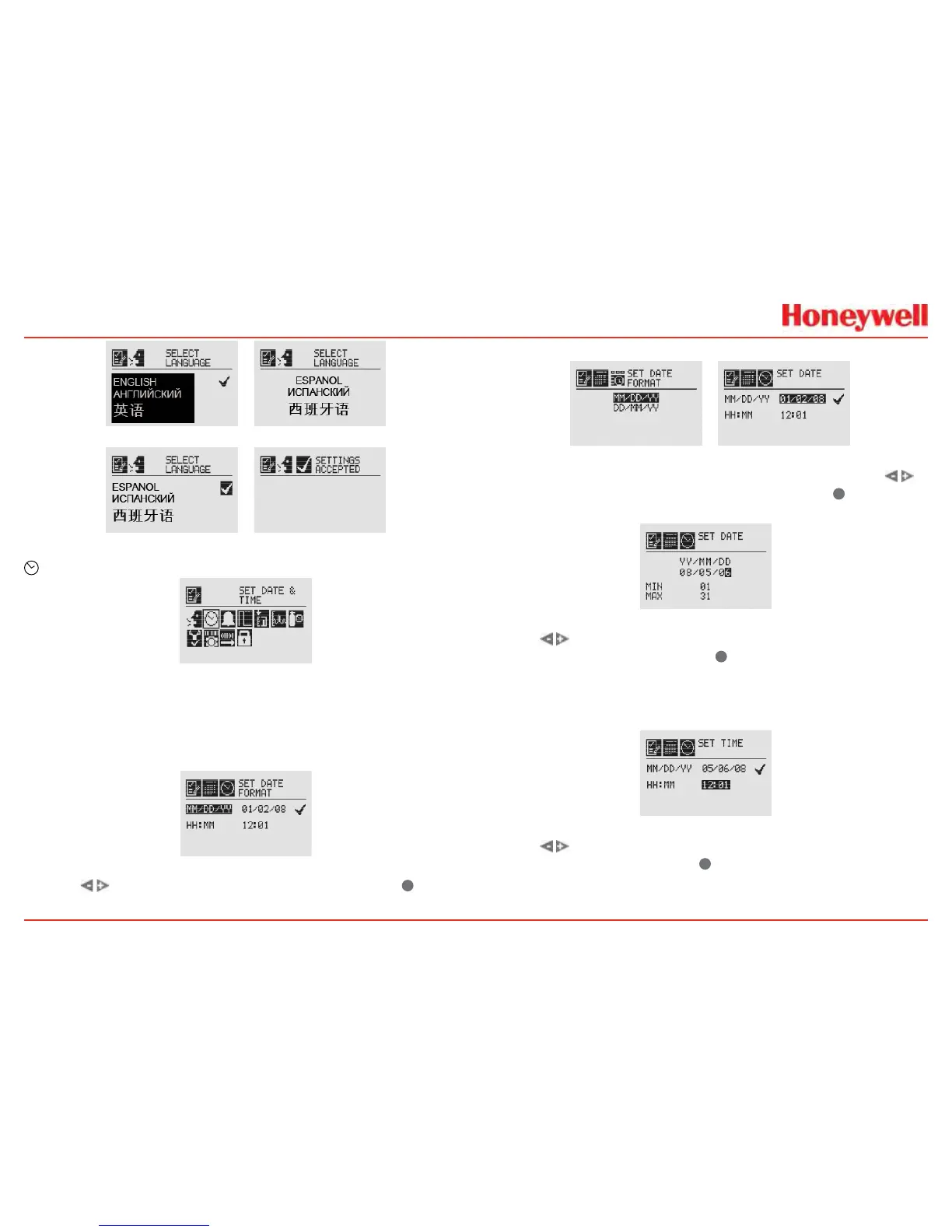

Figure 65. Language Selection Screen

Figure 66. Accept Language Change Screen
Set Date & Time
Figure 67. Set Date & Time Menu
Select“SetDateandTime”tochangethedateformatandset
thecurrenttime/dateintotheXNX�
Set Date Format
Figure 68. Set Date Format Menu
Usethe  switchestohighlight“MM/DD/YY�”Select
✓
toset
thedateformat�
Set Date


Figure 69. Set Date Format Screen / Set Date Menu
UsetheSetDateselectiontosetthecurrentdate�Usethe  
switchestoselecttheyear,month,andday�Select
✓
tosetthe
desireddate�
Figure 70. Setting the Date Screen
Usethe  switchestodecrementorincrementthevaluesuntil
thedesiredvalueappears�Select
✓
tosetthevalueandmoveto
thenextcharacter�Repeatforeachcharactertobechanged�
Set Time
Figure 71. Set Time Menu
Usethe  switchestodecrementorincrementthevaluesuntil
thedesiredvalueappears�Use
✓
toselectthevalueandmove
tothenextcharacter�Repeatforeachcharactertobechanged�


Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
