Honeywell XNX Technical Manual

XNX Universal Transmitter
Section 2 - Installation and Operation
86

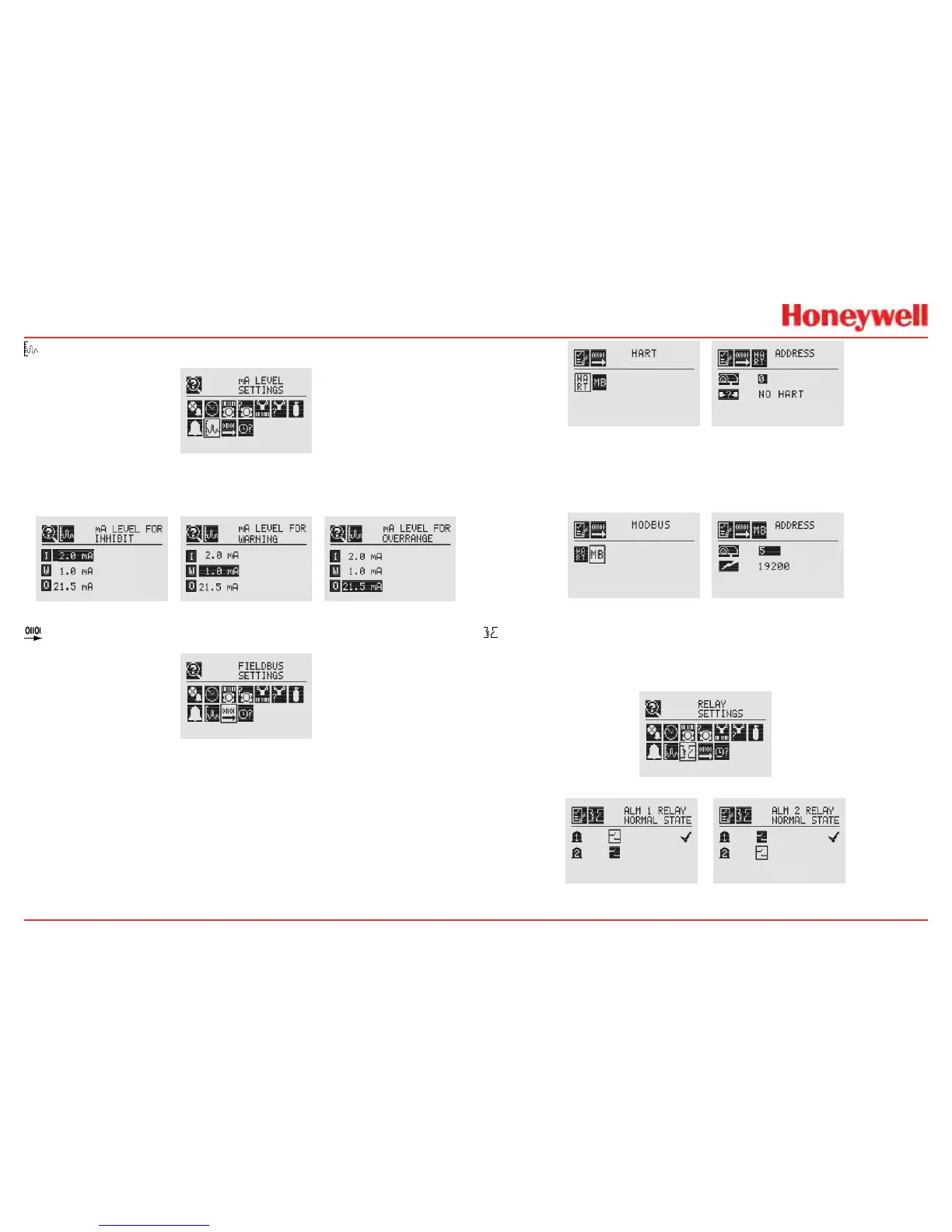

mA Level Settings
Figure 180. mA Level Settings Screen
mALevelSettingsshowsthecurrentvaluesformAoutputfor
Inhibit,Warning,andOverrangeoutput�
 
Figure 181. mA Output Inhibit, Warning and Overrange Screens.
Fieldbus Settings
Figure 182. Fieldbus Settings
FieldbusSettingsdisplaysthecurrentcongurationofboth
HARTandModbus�TochangethesettingsseeFieldbus
Options�HARTdisplaysthecurrentHARTaddressassignedto
thetransmitter�

Figure 183. HARTConfiguration Settings
Modbusdisplaysthecurrentaddressandcommunicationdata
rateassignedtothetransmitter�

Figure 184. Modbus Conguration Display Screen
Relay Data
TheRelayMenuisenabledonlyiftheXNXtransmitteris
equippedwiththeoptionalrelays�
Figure 185. Relay Data Screen

Figure 186. Relay State Screens

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
