Honeywell XNX Technical Manual

XNX Universal Transmitter
Section 2 - Installation and Operation
85
Sensor Data

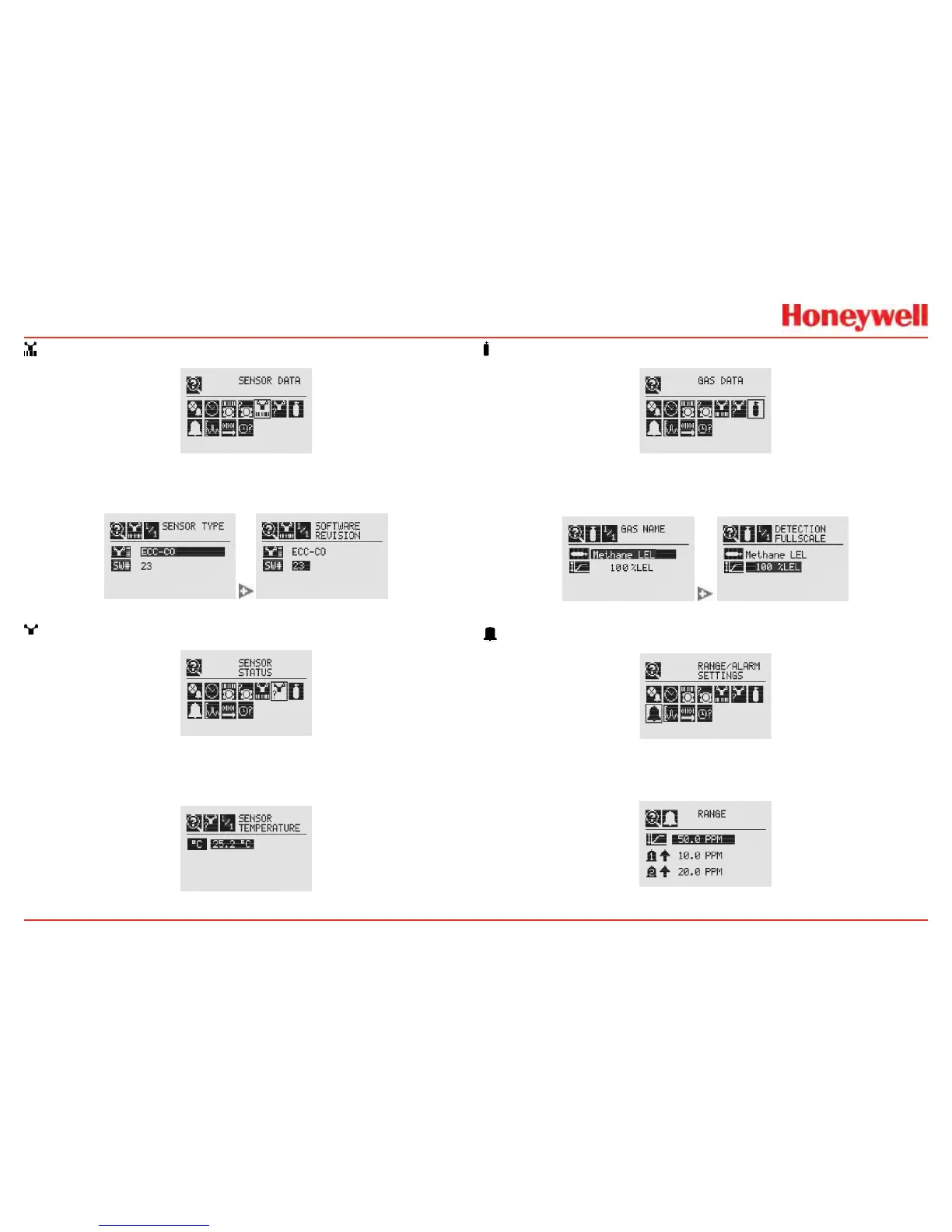

Figure 172. Sensor Data Screen
SensorDatadisplaysinformationaboutthetransmitterincluding
sensortypeandsensorsoftwarerevision�
Figure 173. Sensor Type and Software Screens
?
Sensor Status
Figure 174. Sensor Status Screen
SensorStatusdisplaysthetemperatureofthesensorattached
tothetransmitter�WhenequippedwithanECormVsensor,
sensorlifeisalsodisplayed�
Figure 175. Sensor Temperature Screen
Gas Data
Figure 176. Gas Settings Screen
GasDatadisplaysthecurrentdetectablegasasconguredfor
theattachedsensor�
 
Figure 177. Gas Abbreviation and Full Scale Screens
Range/Alarm Settings
Figure 178. Range/Alarm Settings Screen
Range/AlarmSettingsdisplaysthecurrentlyconguredalarm
information�
Figure 179. Alarm Display Range Screen

Honeywell XNX Specifications

General

Ingress Protection	IP66/67
Product Type	Universal Transmitter
Enclosure Rating	IP66/67
Display	LCD
Communication Protocols	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC nominal, 18-32 VDC
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Material	Aluminum or Stainless Steel
Gas Types	Toxic, Oxygen, and Combustible gases
Output	4-20 mA
Relays	3 programmable relays
Approvals	ATEX, IECEx, UL, CSA
Sensor Compatibility	Electrochemical, catalytic, infrared, and other sensor types
