178

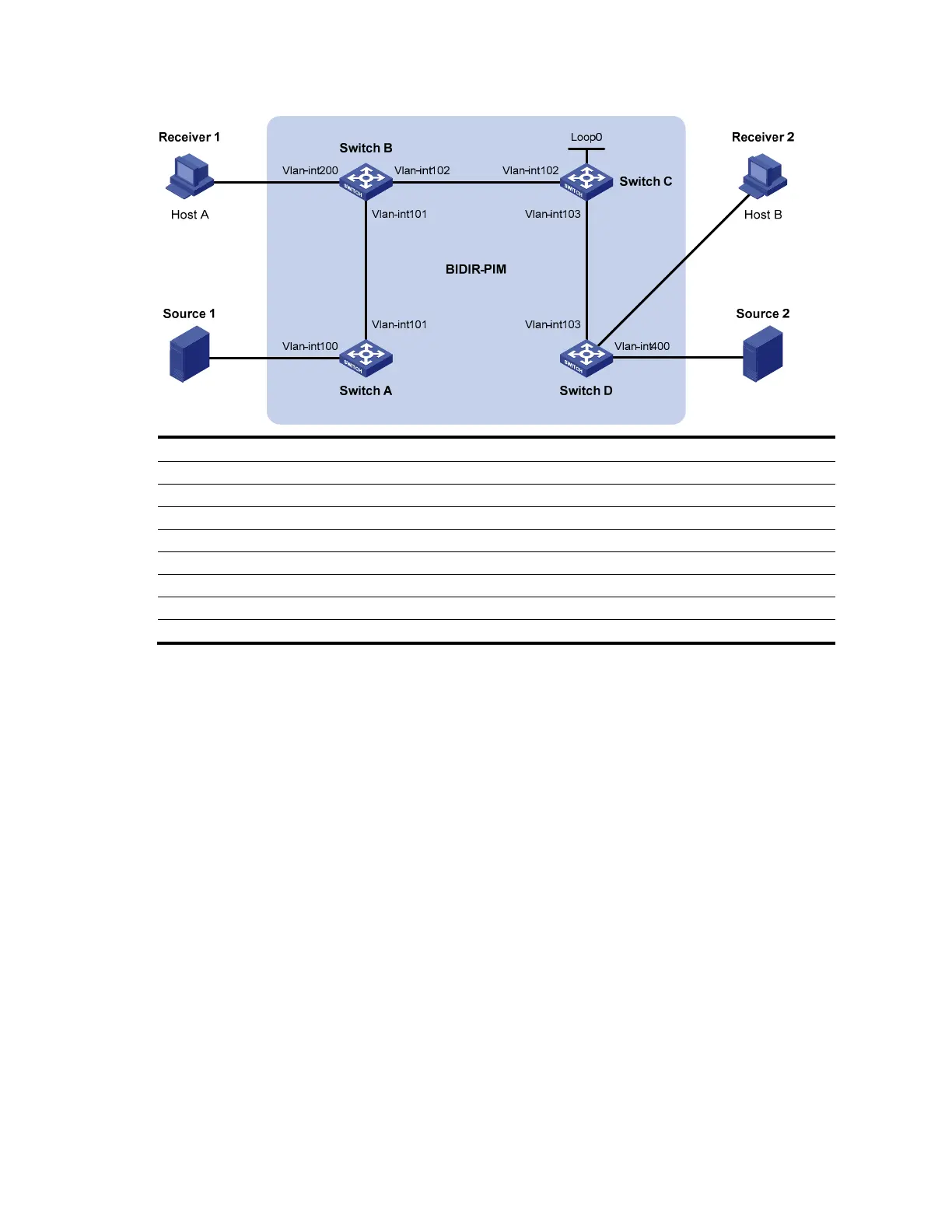

Figure 52 Network diagram for BIDIR-PIM configuration

Vlan-in

Device Interface IP address Device Interface IP address

Switch A Vlan-int100 192.168.1.1/24 Switch D Vlan-int300 192.168.3.1/24

Vlan-int101 10.110.1.1/24 Vlan-int400 192.168.4.1/24

Switch B Vlan-int200 192.168.2.1/24 Vlan-int103 10.110.3.2

Vlan-int101 10.110.1.2/24 Source 1 - 192.168.1.100/24

Vlan-int102 10.110.2.1

24 Source 2 - 192.168.4.100/24

Switch C Vlan-int102 10.110.2.2

24 Receiver 1 - 192.168.2.100/24

Vlan-int103 10.110.3.1/24 Receiver 2 - 192.168.3.100/24

Loop0 1.1.1.1

Configuration procedure

1. Configure IP addresses and unicast routing.

Configure the IP address and subnet mask for each interface according to Figure 52 (details not shown).

Configure OSPF on the switches in the BIDIR-PIM domain to ensure network-layer reachability among

them (details not shown).

2. Enable IP multicast routing, PIM-SM, BIDIR-PIM, and IGMP.

# On Switch A, enable IP multicast routing, enable PIM-SM on each interface, and enable BIDIR-PIM.

<SwitchA> system-view

[SwitchA] multicast routing-enable

[SwitchA] interface vlan-interface 100

[SwitchA-Vlan-interface100] pim sm

[SwitchA-Vlan-interface100] quit

[SwitchA] interface vlan-interface 101

[SwitchA-Vlan-interface101] pim sm

[SwitchA-Vlan-interface101] quit

[SwitchA] pim

[SwitchA-pim] bidir-pim enable

[SwitchA-pim] quit
