HP A5500 SI Switch Series User Manual

265

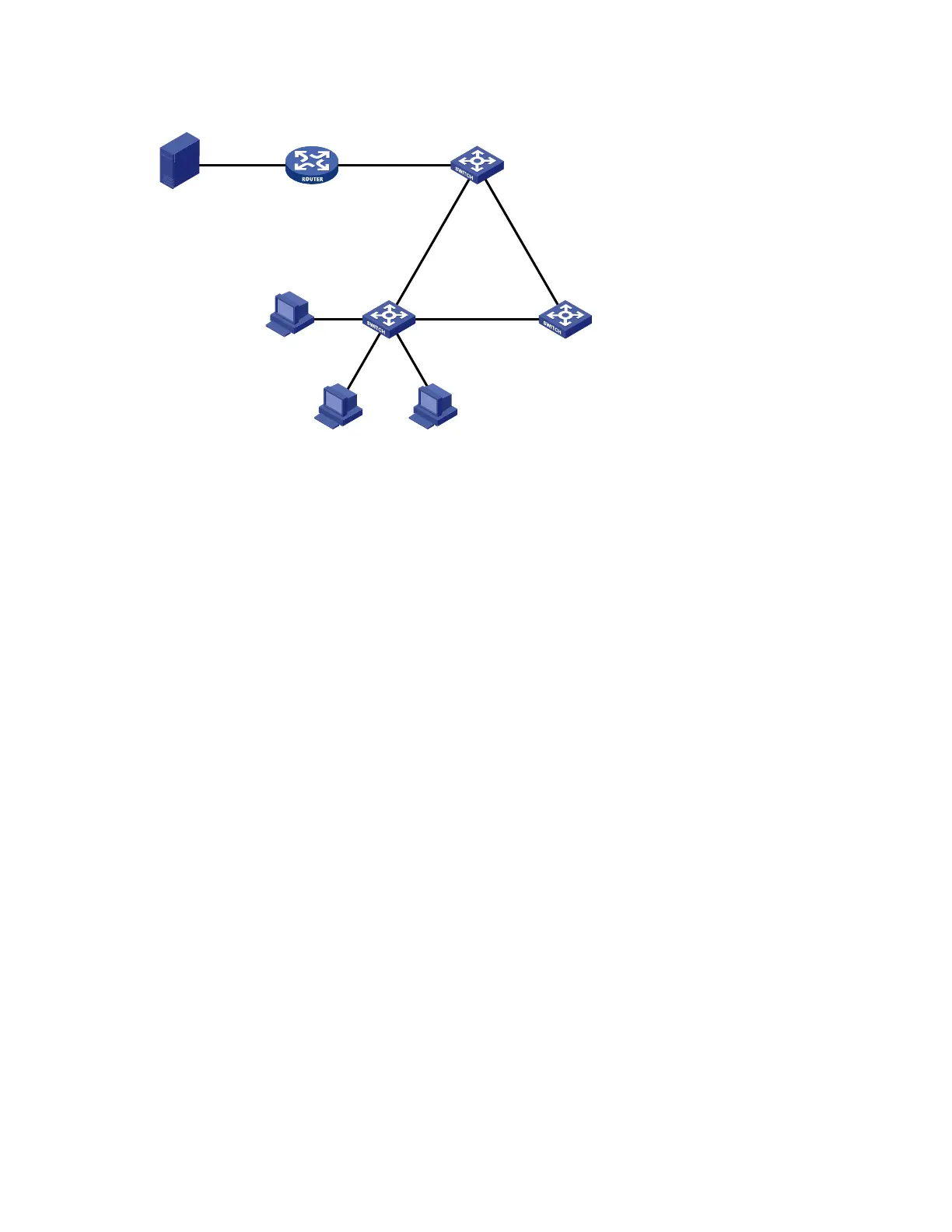

Figure 67 Network diagram for static port configuration
Source
1::1/64
Router A
MLD querier
GE1/0/1
2001::1/64
GE1/0/2
1::2/64
Switch A
Switch C
Switch B
GE1/0/1
G
E
1
/
0
/
2
G
E
1
/
0
/
3
G
E
1
/
0
/
1
GE1/0/2
G
E
1
/
0
/
1
GE1/0/2
Host C
Host B Host A
Receiver
Receiver
G
E
1
/
0
/
3
G
E
1
/
0
/
4
GE1/0/5
Configuration procedure
1. Enable IPv6 forwarding and configure IPv6 addresses
Enable IPv6 forwarding and configure an IPv6 address and prefix length for each interface according to
Figure 67.
2. Configure Router A
# Enable IPv6 multicast routing, enable IPv6 PIM-DM on each interface, and enable MLD on
GigabitEthernet 1/0/1.
<RouterA> system-view
[RouterA] multicast ipv6 routing-enable
[RouterA] interface gigabitethernet 1/0/1
[RouterA-GigabitEthernet1/0/1] mld enable
[RouterA-GigabitEthernet1/0/1] pim ipv6 dm
[RouterA-GigabitEthernet1/0/1] quit
[RouterA] interface gigabitethernet 1/0/2
[RouterA-GigabitEthernet1/0/2] pim ipv6 dm
[RouterA-GigabitEthernet1/0/2] quit
3. Configure Switch A
# Enable MLD snooping globally.
<SwitchA> system-view
[SwitchA] mld-snooping
[SwitchA-mld-snooping] quit
# Create VLAN 100, assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3 to this VLAN, and
enable MLD snooping in the VLAN.
[SwitchA] vlan 100
[SwitchA-vlan100] port gigabitethernet 1/0/1 to gigabitethernet 1/0/3
[SwitchA-vlan100] mld-snooping enable
[SwitchA-vlan100] quit

HP A5500 SI Switch Series Specifications

General

Layer Support	Layer 2 and Layer 3
MAC Address Table	16K entries
Routing Protocol	RIP, OSPF, BGP, IS-IS
Management	Web, CLI, SNMP
Input Voltage	100-240 V AC
Operating Temperature	0°C to 45°C
Ports	48 x 10/100/1000 ports, 4 x 10-Gigabit SFP+ ports
Dimensions	440 x 430 x 44 mm
Weight	5.5 kg
Operating Humidity	10% to 95% (non-condensing)
