HP A5500 SI Switch Series User Manual

286

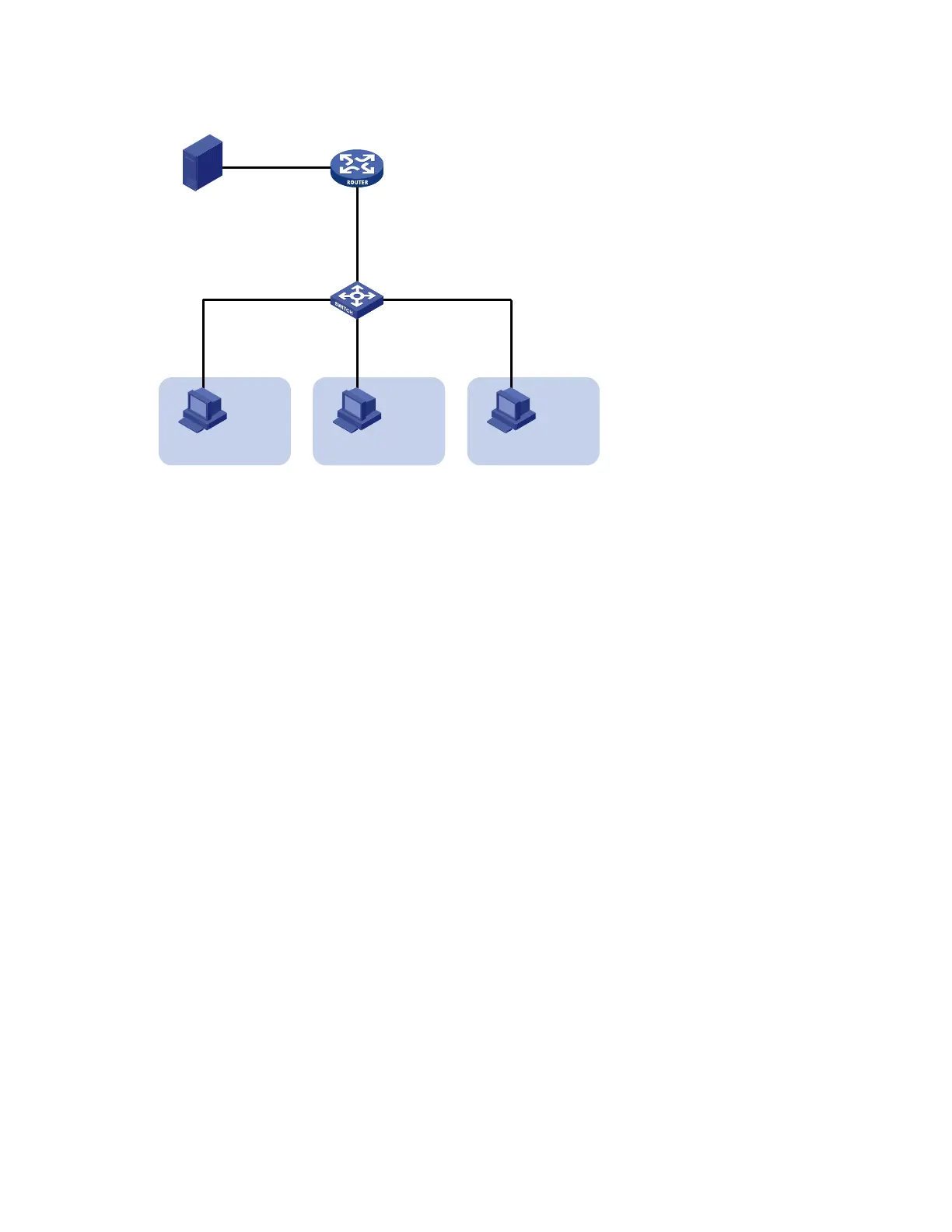

Figure 74 Network diagram for sub-VLAN-based IPv6 multicast VLAN configuration
Source
Receiver
Host A
VLAN 2
GE1/0/2
GE1/0/3
GE1/0/4
Switch A
MLD querier
Router A
GE1/0/1
1:2/64
GE1/0/2
2001::1/64
1::1/64
Receiver
Host B
VLAN 3
Receiver
Host C
VLAN 4
GE1/0/1
Configuration procedure
1. Enable IPv6 forwarding, and configure IPv6 addresses
Enable IPv6 forwarding on each device and configure an IPv6 address and address prefix for each
interface according to Figure 74 (details not shown).
2. Configure Router A
# Enable IPv6 multicast routing, enable IPv6 PIM-DM on each interface and enable MLD on the host-side
interface GigabitEthernet 1/0/2.
<RouterA> system-view
[RouterA] multicast ipv6 routing-enable
[RouterA] interface gigabitethernet 1/0/1
[RouterA-GigabitEthernet1/0/1] pim ipv6 dm
[RouterA-GigabitEthernet1/0/1] quit
[RouterA] interface gigabitethernet 1/0/2
[RouterA-GigabitEthernet1/0/2] pim ipv6 dm
[RouterA-GigabitEthernet1/0/2] mld enable
3. Configure Switch A
# Enable MLD snooping globally.
<SwitchA> system-view
[SwitchA] mld-snooping
[SwitchA-mld-snooping] quit
# Create VLAN 2 and assign GigabitEthernet 1/0/2 to this VLAN.
[SwitchA] vlan 2
[SwitchA-vlan2] port gigabitethernet 1/0/2
[SwitchA-vlan2] quit
The configuration for VLAN 3 and VLAN 4 is similar to the configuration for VLAN 2.
# Create VLAN 10, assign GigabitEthernet 1/0/1 to this VLAN and enable MLD snooping in the VLAN.

HP A5500 SI Switch Series Specifications

General

Layer Support	Layer 2 and Layer 3
MAC Address Table	16K entries
Routing Protocol	RIP, OSPF, BGP, IS-IS
Management	Web, CLI, SNMP
Input Voltage	100-240 V AC
Operating Temperature	0°C to 45°C
Ports	48 x 10/100/1000 ports, 4 x 10-Gigabit SFP+ ports
Dimensions	440 x 430 x 44 mm
Weight	5.5 kg
Operating Humidity	10% to 95% (non-condensing)
