HP A5500 SI Switch Series User Manual

289
• Configure the port-based IPv6 multicast VLAN feature so that Router A sends IPv6 multicast data to
Switch A through the IPv6 multicast VLAN, and Switch A forwards the IPv6 multicast data to the
receivers that belong to different user VLANs.

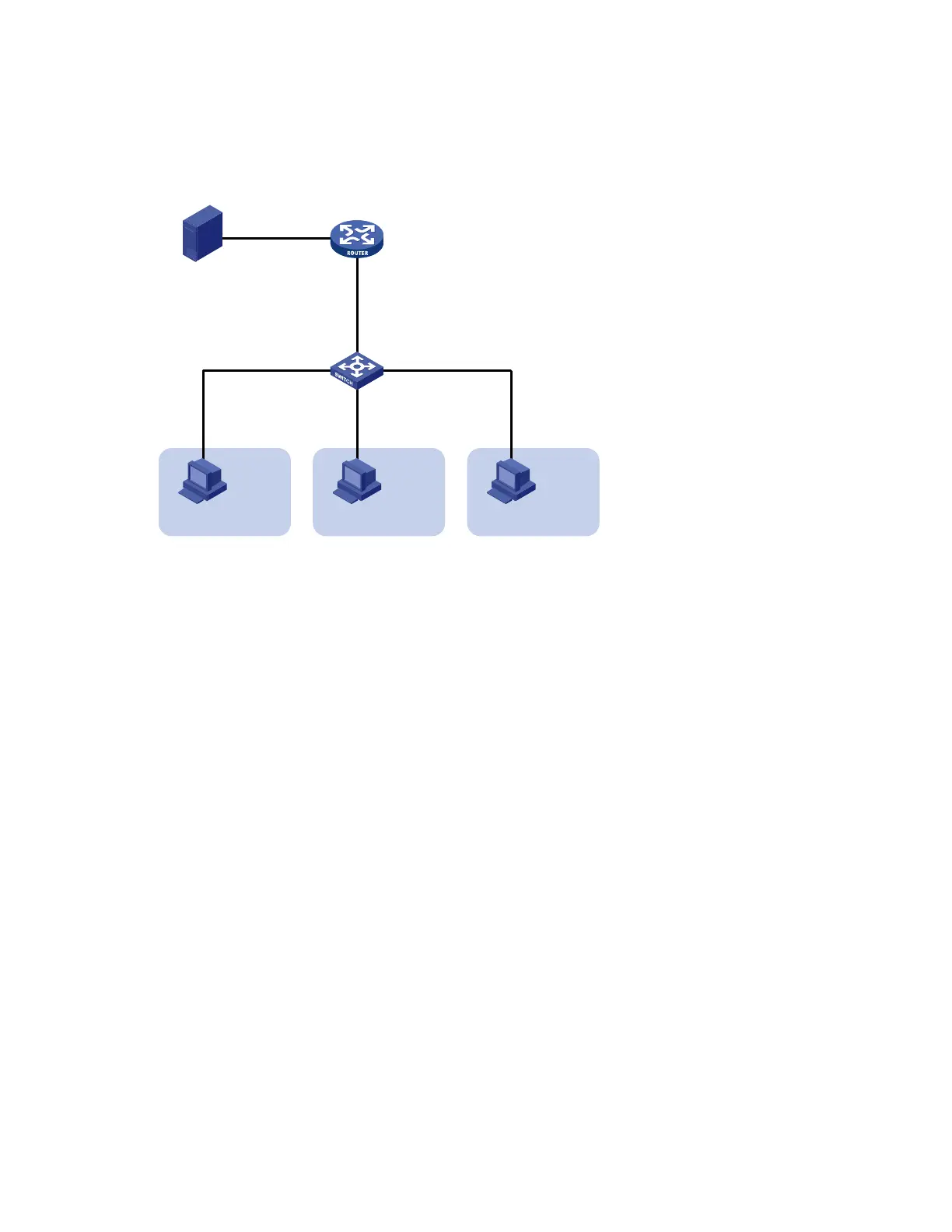

Figure 75 Network diagram for port-based IPv6 multicast VLAN configuration
Source
Receiver
Host A
VLAN 2
GE1/0/2
GE1/0/3
GE1/0/4
Switch A
MLD querier
Router A
GE1/0/1
1:2/64
GE1/0/2
2001::1/64
1::1/64
Receiver
Host B
VLAN 3
Receiver
Host C
VLAN 4
GE1/0/1
Configuration procedure
1. Enable IPv6 forwarding, and configure IPv6 addresses
Enable IPv6 forwarding on each device, and configure the IPv6 address and address prefix for each
interface according to Figure 75 (details not shown).
2. Configure Router A
# Enable IPv6 multicast routing, enable IPv6 PIM-DM on each interface, and enable MLD on the host-
side interface GigabitEthernet 1/0/2.
<RouterA> system-view
[RouterA] multicast ipv6 routing-enable
[RouterA] interface gigabitethernet 1/0/1
[RouterA-GigabitEthernet1/0/1] ipv6 pim dm
[RouterA-GigabitEthernet1/0/1] quit
[RouterA] interface gigabitethernet 1/0/2
[RouterA-GigabitEthernet1/0/2] ipv6 pim dm
[RouterA-GigabitEthernet1/0/2] mld enable
3. Configure Switch A
# Enable MLD snooping globally.
<SwitchA> system-view
[SwitchA] mld-snooping
[SwitchA-mld-snooping] quit
# Create VLAN 10, assign GigabitEthernet 1/0/1 to VLAN 10, and enable MLD snooping in this
VLAN.
[SwitchA] vlan 10
[SwitchA-vlan10] port gigabitethernet 1/0/1

HP A5500 SI Switch Series Specifications

General

Layer Support	Layer 2 and Layer 3
MAC Address Table	16K entries
Routing Protocol	RIP, OSPF, BGP, IS-IS
Management	Web, CLI, SNMP
Input Voltage	100-240 V AC
Operating Temperature	0°C to 45°C
Ports	48 x 10/100/1000 ports, 4 x 10-Gigabit SFP+ ports
Dimensions	440 x 430 x 44 mm
Weight	5.5 kg
Operating Humidity	10% to 95% (non-condensing)
