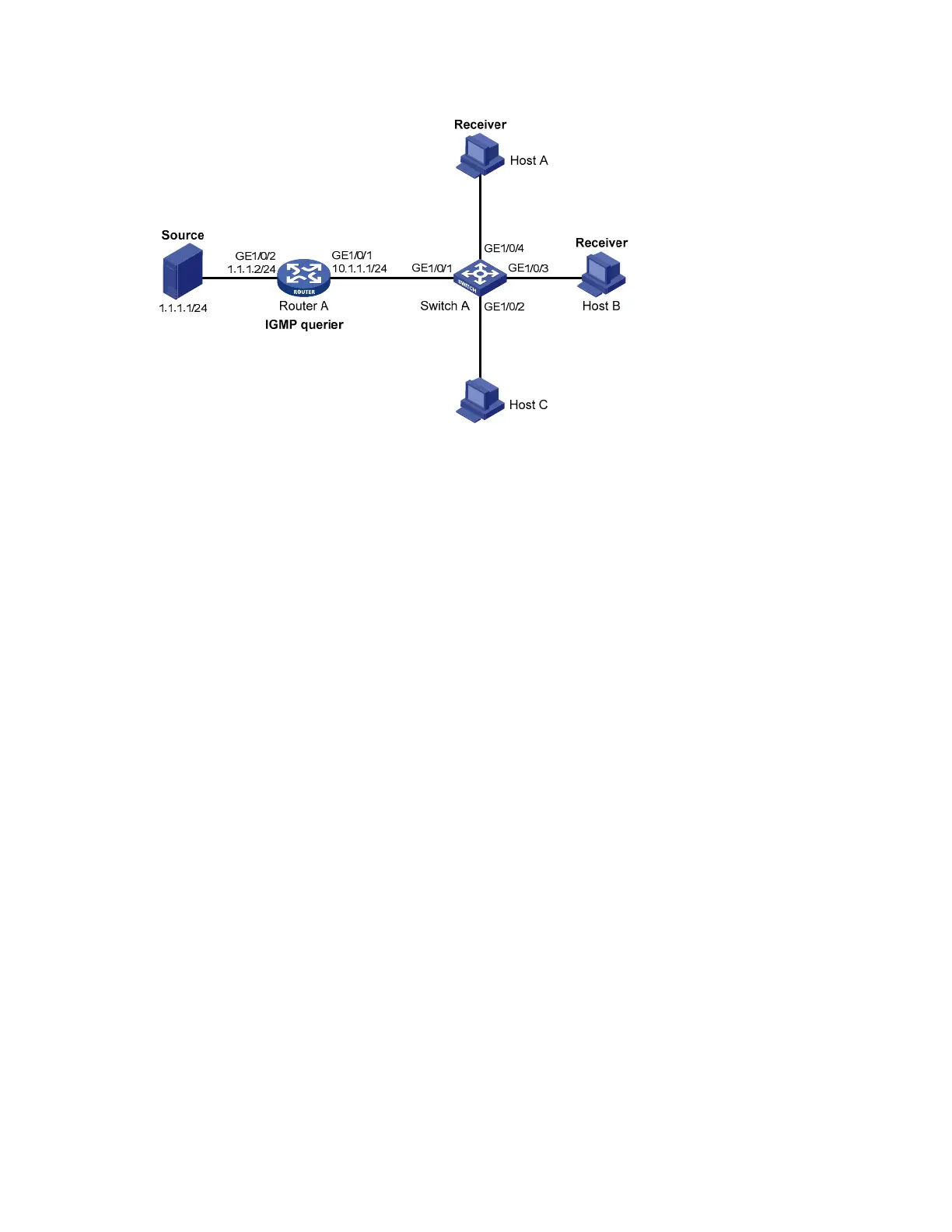

Figure 14 Network diagram for group policy simulated joining configuration

Configuration procedure

1. Configure IP addresses

Configure an IP address and subnet mask for each interface according to Figure 14 (details not shown).

2. Configure Router A

# Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on GigabitEthernet

1/0/1.

<RouterA> system-view

[RouterA] multicast routing-enable

[RouterA] interface gigabitethernet 1/0/0/1

[RouterA-GigabitEthernet1/0/1] igmp enable

[RouterA-GigabitEthernet1/0/1] pim dm

[RouterA-GigabitEthernet1/0/1] quit

[RouterA] interface gigabitethernet 1/0/0/2

[RouterA-GigabitEthernet1/0/2] pim dm

[RouterA-GigabitEthernet1/0/2] quit

3. Configure Switch A

# Enable IGMP snooping globally.

<SwitchA> system-view

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Create VLAN 100, assign GigabitEthernet 1/0/1 through GigabitEthernet 1/0/4 to this VLAN, and

enable IGMP snooping and the function of dropping unknown multicast traffic in the VLAN.

[SwitchA] vlan 100

[SwitchA-vlan100] port gigabitethernet 1/0/1 to gigabitethernet 1/0/4

[SwitchA-vlan100] igmp-snooping enable

[SwitchA-vlan100] igmp-snooping drop-unknown

[SwitchA-vlan100] quit
