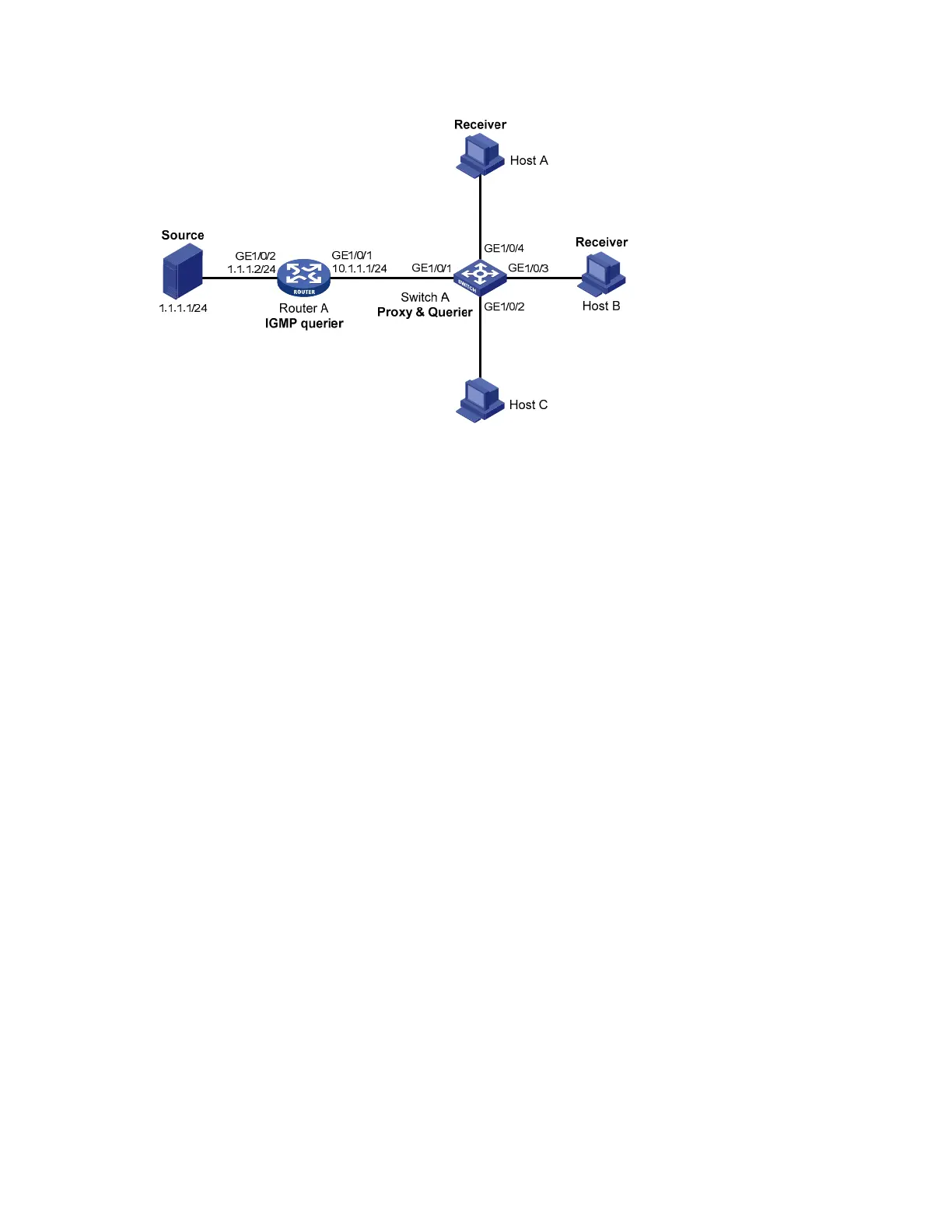

Figure 17 Network diagram for IGMP snooping proxying configuration

Configuration procedure

1. Configure IP addresses for interfaces

Configure an IP address and subnet mask for each interface according to Figure 17 (details not shown).

2. Configure Router A

# Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on GigabitEthernet

1/0/1.

<RouterA> system-view

[RouterA] multicast routing-enable

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] igmp enable

[RouterA-GigabitEthernet1/0/1] pim dm

[RouterA-GigabitEthernet1/0/1] quit

[RouterA] interface gigabitethernet 1/0/2

[RouterA-GigabitEthernet1/0/2] pim dm

[RouterA-GigabitEthernet1/0/2] quit

3. Configure Switch A

# Enable IGMP snooping globally.

<SwitchA> system-view

[SwitchA] igmp-snooping

[SwitchA-igmp-snooping] quit

# Create VLAN 100, assign ports GigabitEthernet 1/0/1 through GigabitEthernet 1/0/4 to this VLAN,

and enable IGMP snooping and IGMP snooping proxying in the VLAN.

[SwitchA] vlan 100

[SwitchA-vlan100] port gigabitethernet 1/0/1 to gigabitethernet 1/0/4

[SwitchA-vlan100] igmp-snooping enable

[SwitchA-vlan100] igmp-snooping proxying enable

[SwitchA-vlan100] quit
