• IGMPv2 runs on Router A. IGMPv2 snooping runs on Switch A. Router A acts as the IGMP querier.
• Switch A’s GigabitEthernet 1/0/1 belongs to VLAN 10, GigabitEthernet 1/0/2 through
GigabitEthernet 1/0/4 belong to VLAN 2 through VLAN 4 respectively, and Host A through Host
C are attached to GigabitEthernet 1/0/2 through GigabitEthernet 1/0/4 of Switch A respectively.
• The multicast source sends multicast data to multicast group 224.1.1.1. Host A, Host B, and Host C
are receivers of the multicast group.
• Configure the port-based multicast VLAN feature so that Router A just sends multicast data to Switch
A through the multicast VLAN and Switch A forwards the multicast data to the receivers that belong
to different user VLANs.

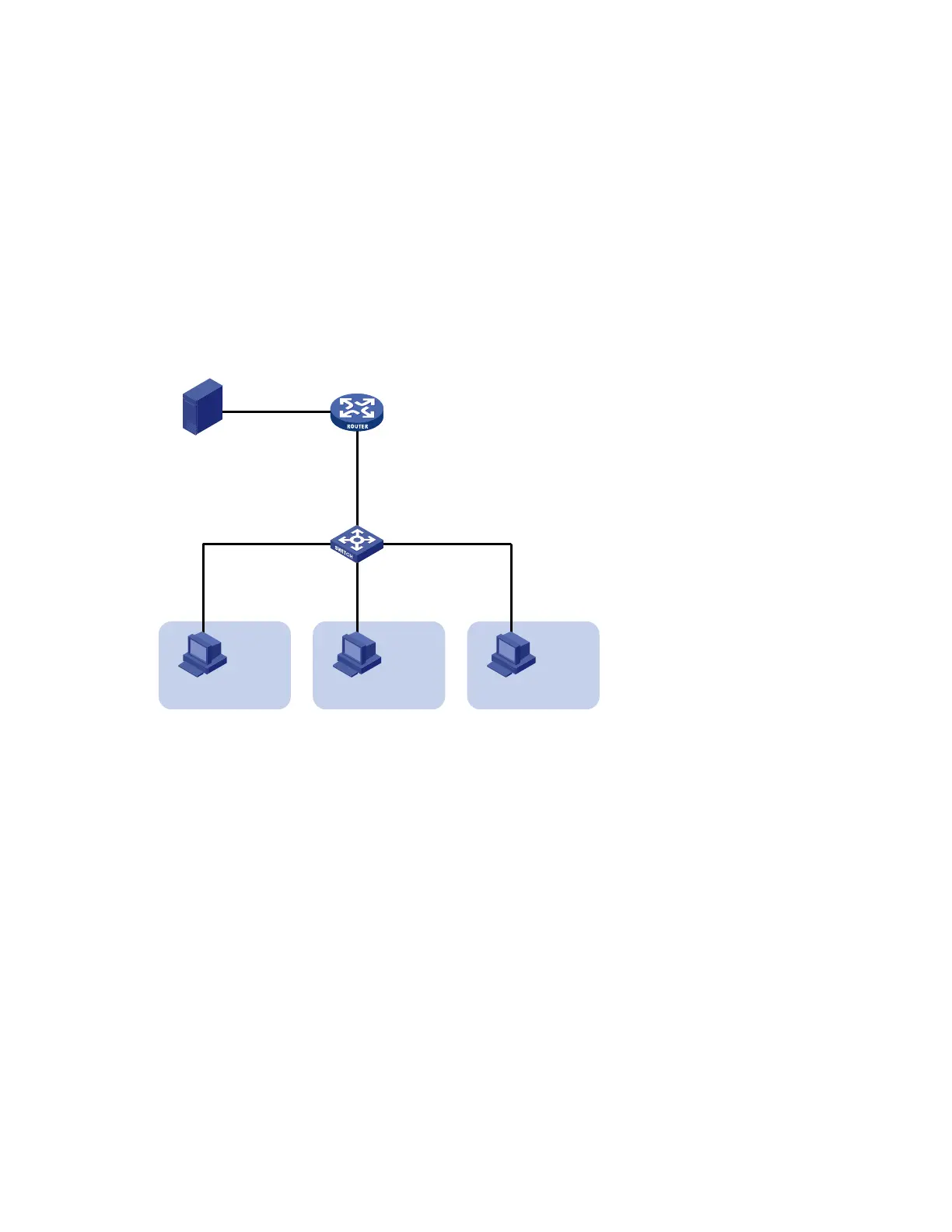

Network diagram
Figure 23 Network diagram for port-based multicast VLAN configuration
Source
Receiver
Host A
VLAN 2
GE1/0/2
GE1/0/3
GE1/0/4
Switch A
IGMP querier
Router A
GE1/0/1
1.1.1.2/24
GE1/0/2
10.110.1.1/24
1.1.1.1/24
Receiver
Host B
VLAN 3
Receiver
Host C
VLAN 4
GE1/0/1
Configuration procedure
1. Configure IP addresses
Configure the IP address and subnet mask for each interface according to Figure 23 (details not shown).
2. Configure Router A
# Enable IP multicast routing, enable PIM-DM on each interface, and enable IGMP on the host-side
interface GigabitEthernet 1/0/2.
<RouterA> system-view
[RouterA] multicast routing-enable
[RouterA] interface gigabitethernet 1/0/1
[RouterA-GigabitEthernet1/0/1] pim dm
[RouterA-GigabitEthernet1/0/1] quit
[RouterA] interface gigabitethernet 1/0/2
[RouterA-GigabitEthernet1/0/2] pim dm
[RouterA-GigabitEthernet1/0/2] igmp enable
3. Configure Switch A
# Enable IGMP snooping globally.
