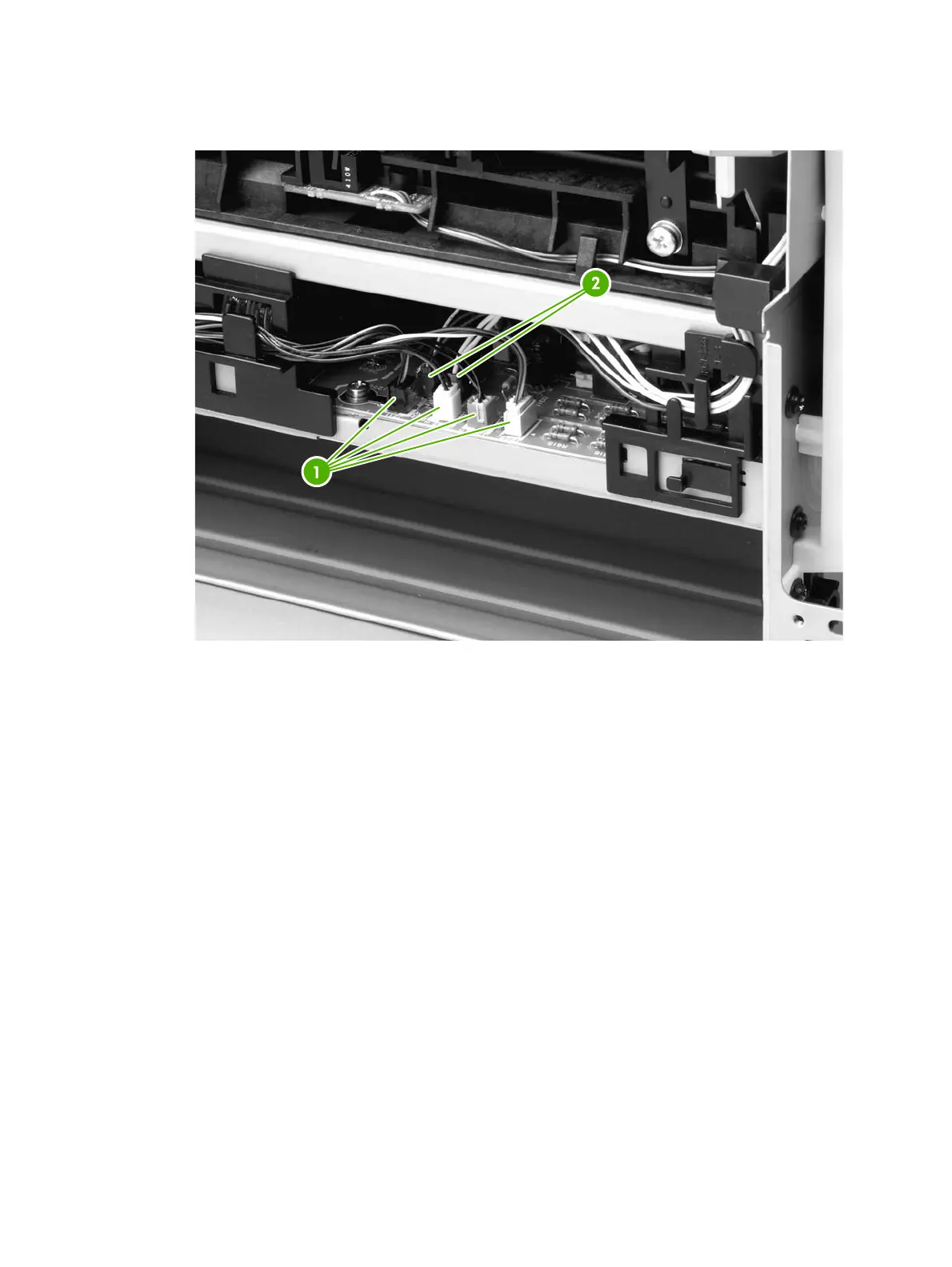

7. Disconnect four cables (1) from the ECU, and then disconnect two more cables (2) that were
behind the first set.
Figure 6-24 Removing the fuser (2 of 10)
8. Pull the tab on the cable holder (1) at the left side of the printer and slide it toward the center to
release it from the frame, and then unroute the cables.
ENWW Fuser 109
