HP LaserJet P2015 Series

9. Pull the tab on the cable holder (2) and slide it toward the center to release it from the frame,
and then unroute the cables.

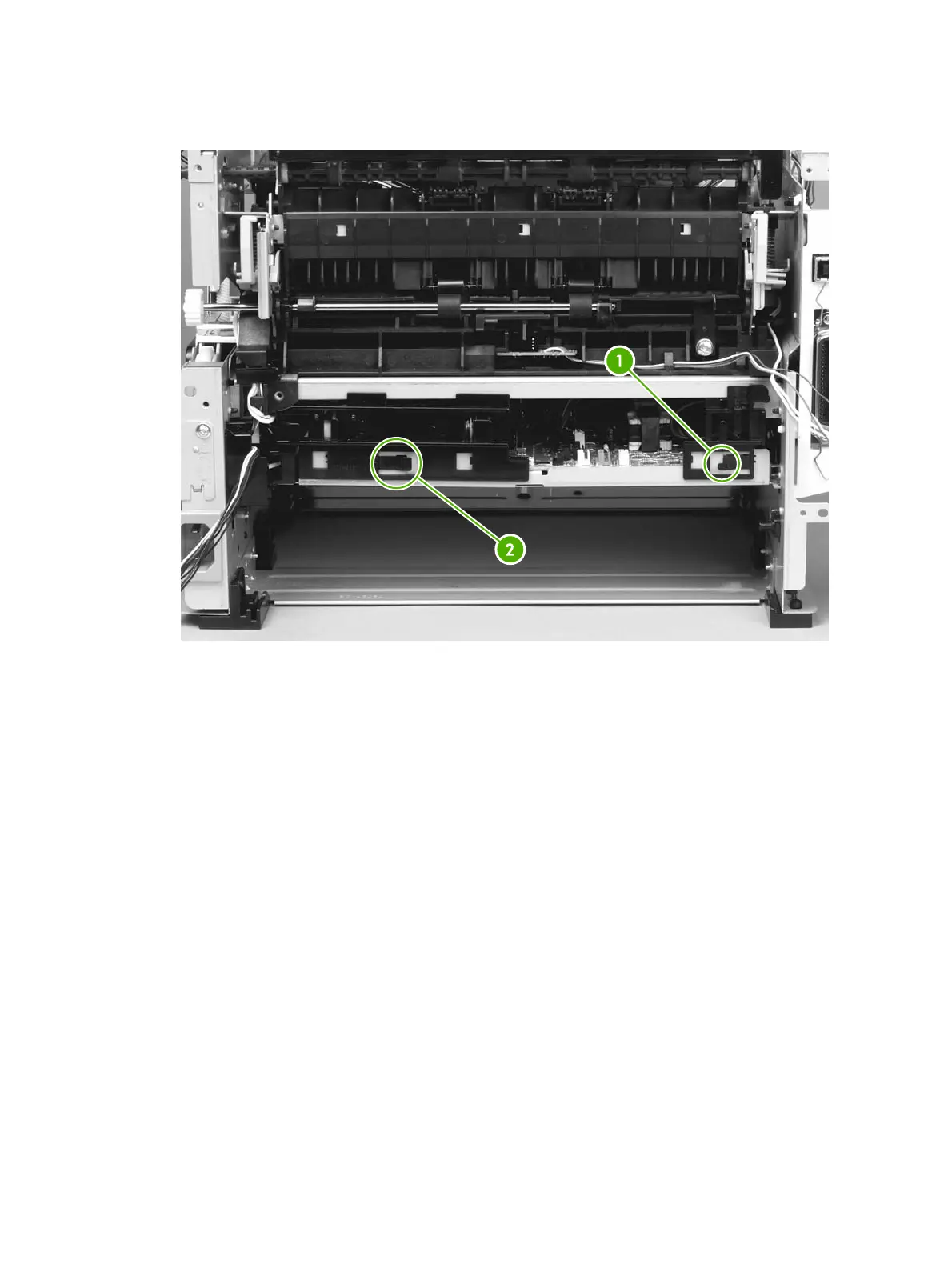

Figure 6-25 Removing the fuser (3 of 10)
110 Chapter 6 Removal and replacement ENWW
