HP StorageWorks 6100 - Enterprise Virtual Array

Figure 71 HP Continuous Access EVA 3–site configuration with eight MPX200 routers
.

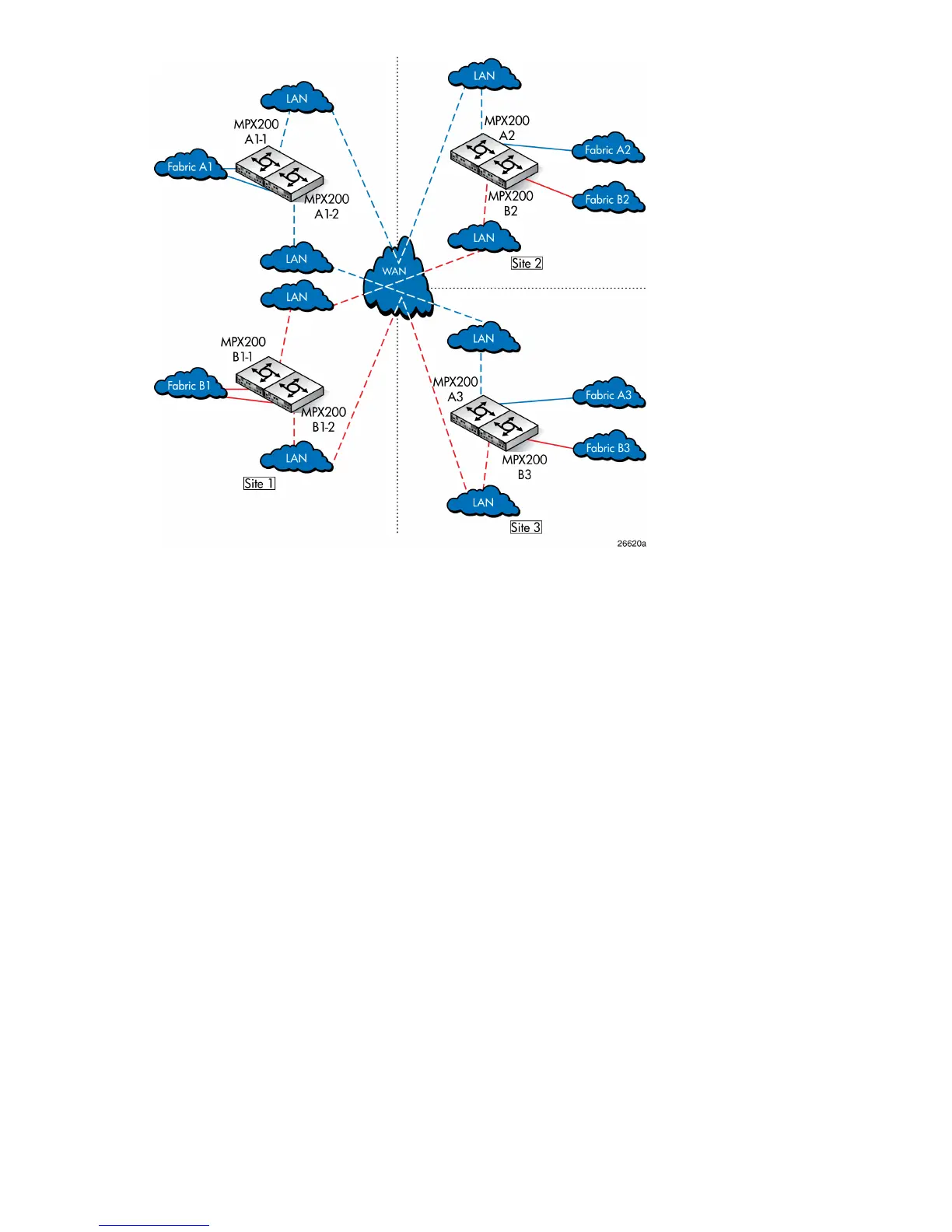

3-site configuration with six MPX200 routers and full inter-site connectivity
Figure 72 provides long-distance link redundancy and full connectivity between all three sites.
MPX200 Multifunction Router 111
