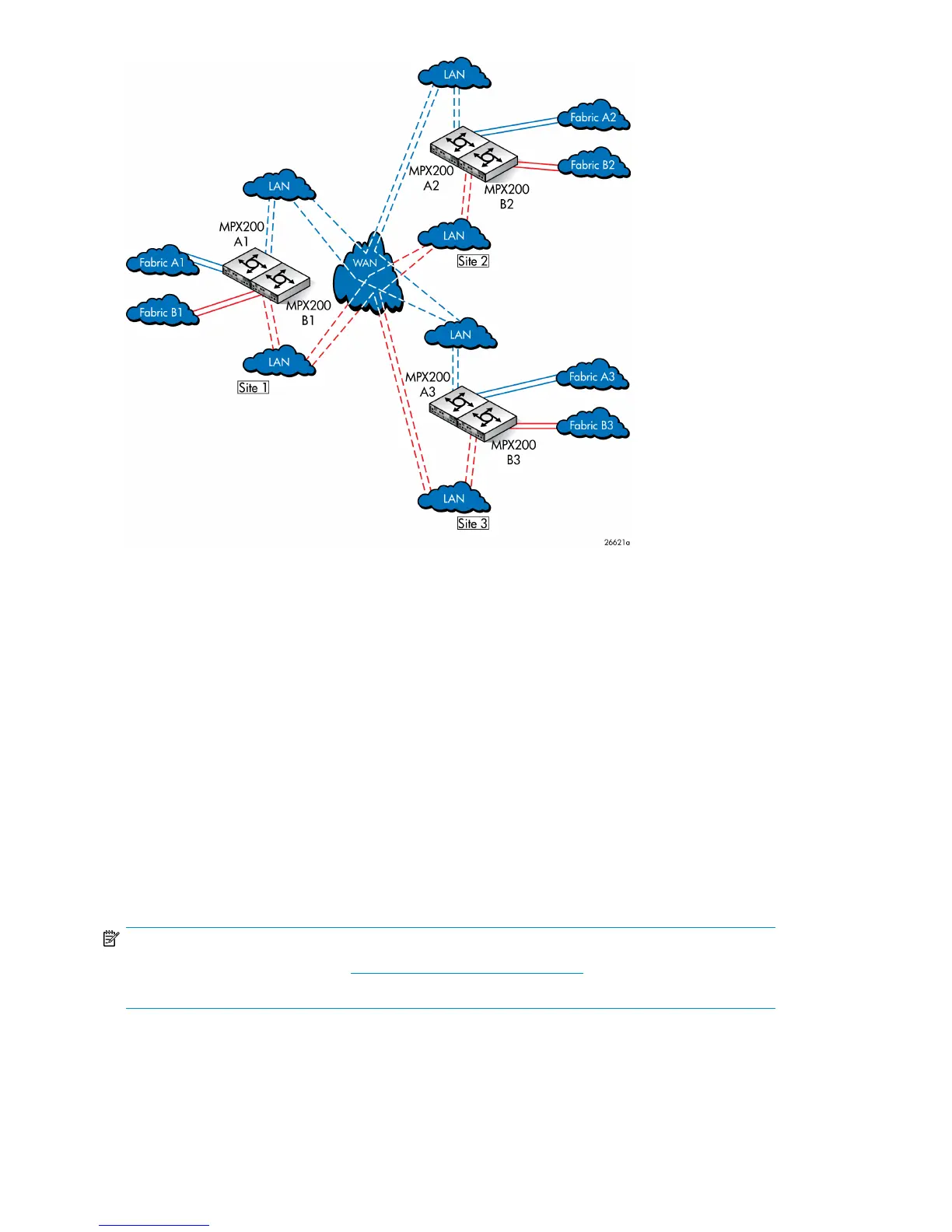

Figure 72 HP Continuous Access EVA 3–site configuration with six MPX200 router full peer-to-peer
connectivity
.
Configuration rules and guidelines
This section defines the configuration rules for using the MPX200 Multifunction Router.
General configuration rules
The following general configuration rules apply:
• All MPX200 configurations require a minimum of two gateways. These can be two MPX200s or
one MPX200 and one IP Distance Gateway (mpx110), one local and one remote, connected
through an IP network. HP does not support FCIP connectivity between other gateway models.
• FCIP is supported on GbE ports only (GE1, GE2).
• The MPX200 Multifunction Router is supported for FCIP extension with HP Continuous Access EVA
(see EVA storage system rules and guidelines, page 113).
NOTE:
For current support, see SPOCK at http://www.hp.com/storage/spock. You must sign up for an HP
Passport to enable access.
MPX200 FCIP112
