Installation Procedures - for all MSA1000 Deployments
40 MSA1000 Installation Guide
2. On the hard drive to be installed, press the ejector button 1 and pivot the lever
to a full open position 2.

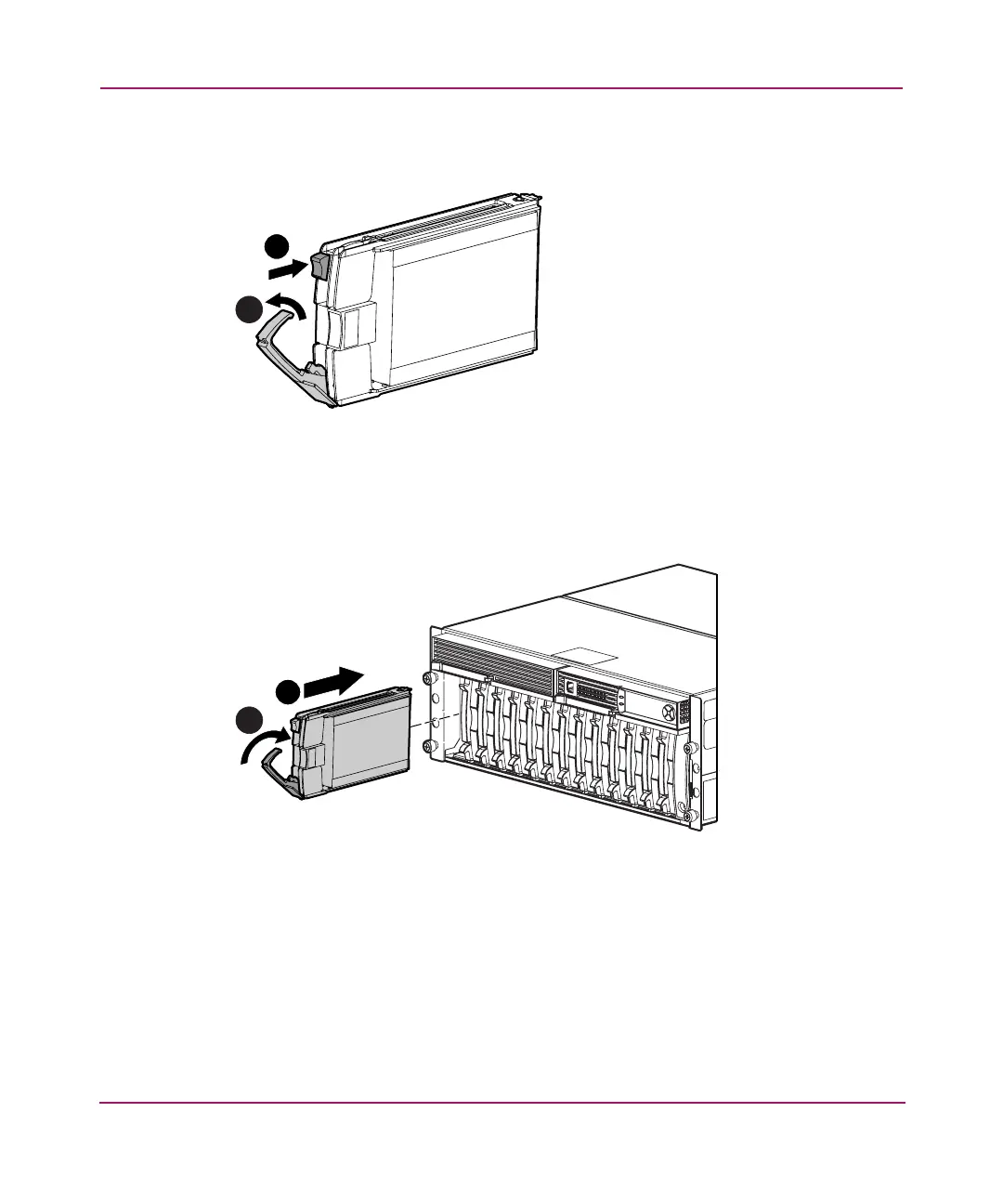

Figure 12: Preparing the hard drive
3. Insert the hard drive into the vacant bay, sliding it in as far as it will go 1.
Make sure that the ejector lever is in the full open position and press firmly on
the front of the hard drive to properly seat the drive in the drive bay.
Figure 13: Installing the Hard Drive
4. Close the ejector lever against the front of the drive 2.
1
2
1
2

HP StorageWorks MSA1000 Specifications

General

RAID levels	0, 1, 0+1, 5
Certification	Microsoft Cluster Server Certification\\r Hewlett Packard Data Protector\\r VERITAS Backup Exec and NetBackup\\r Legato NetWorker for Windows\\r Computer Associates BrightStor Enterprise Backup
Internal memory	256 MB
Memory clock speed	- MHz
Internal memory type	-
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Supported storage drive interfaces	SCSI
Windows operating systems supported	Yes
Harmonized System (HS) code	84733080

Weight and Dimensions

Depth	52.1 mm
Width	48.3 mm
Height	17.5 mm
Weight	31210 g
