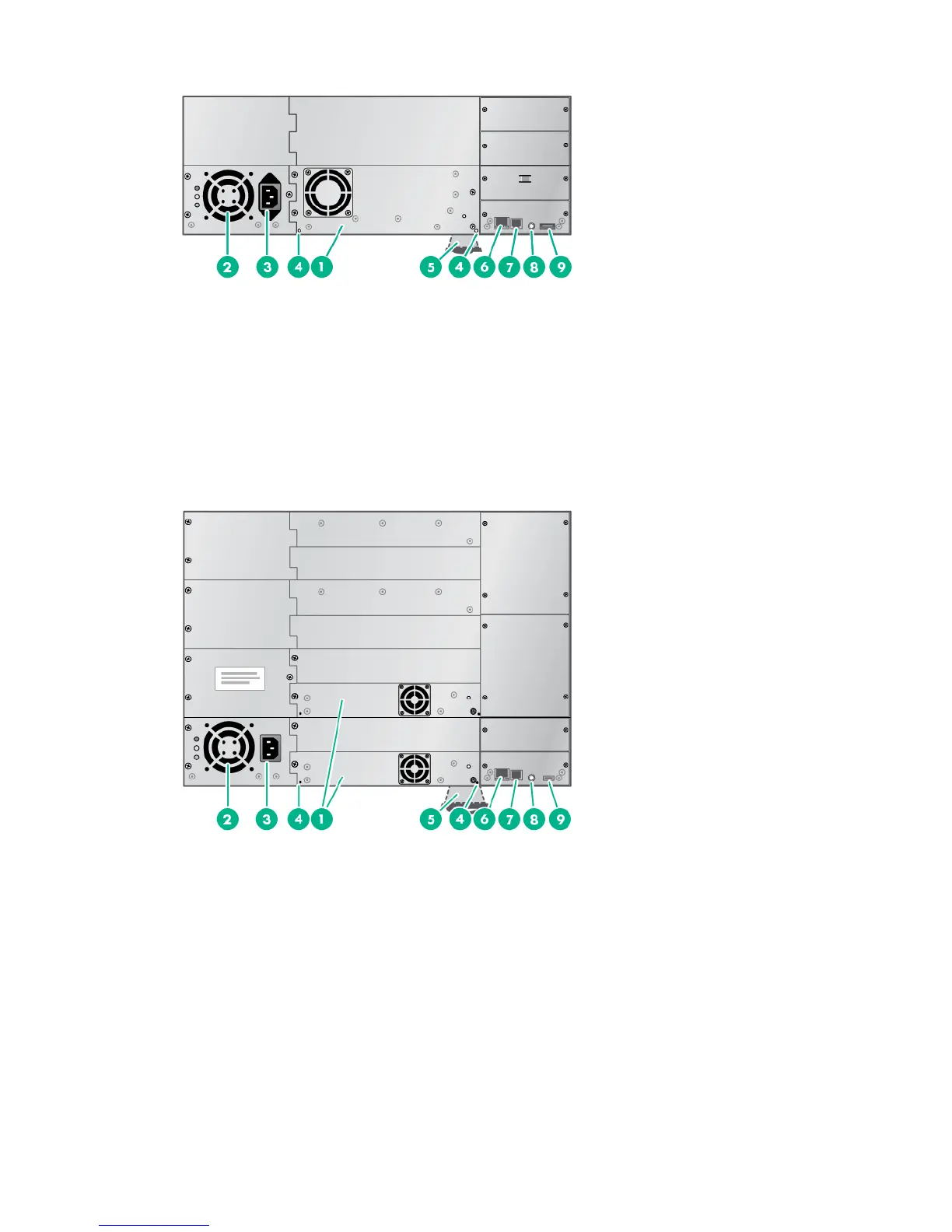

Figure 6 MSL4048 back panel overview
2. Fan1. Tape drive assembly
4. Magazine release hole3. Power connector
6. Ethernet port5. Pull-out tab containing the serial number and other
product information
8. Controller health status indicator7. Serial port (Factory use only)
9. USB port
Figure 7 MSL8084 or MSL8096 back panel overview
2. Fan1. Tape drive assembly
4. Magazine release hole3. Power connector
6. Ethernet port5. Pull-out tab containing the serial number and other
product information
8. Controller health status indicator7. Serial port (Factory use only)
9. USB port
Controller health status indicator
The controller health status indicator is a green LED that pulses on and off in approximately one
second cycles during normal operation. The LED is located on the back panel in the lower right
corner.
