1. Place the cover on a flat, level surface behind the device.
2. Slide the device into the cover until the front panel of the device is aligned with the cover
(see Figure 16 (page 33)).

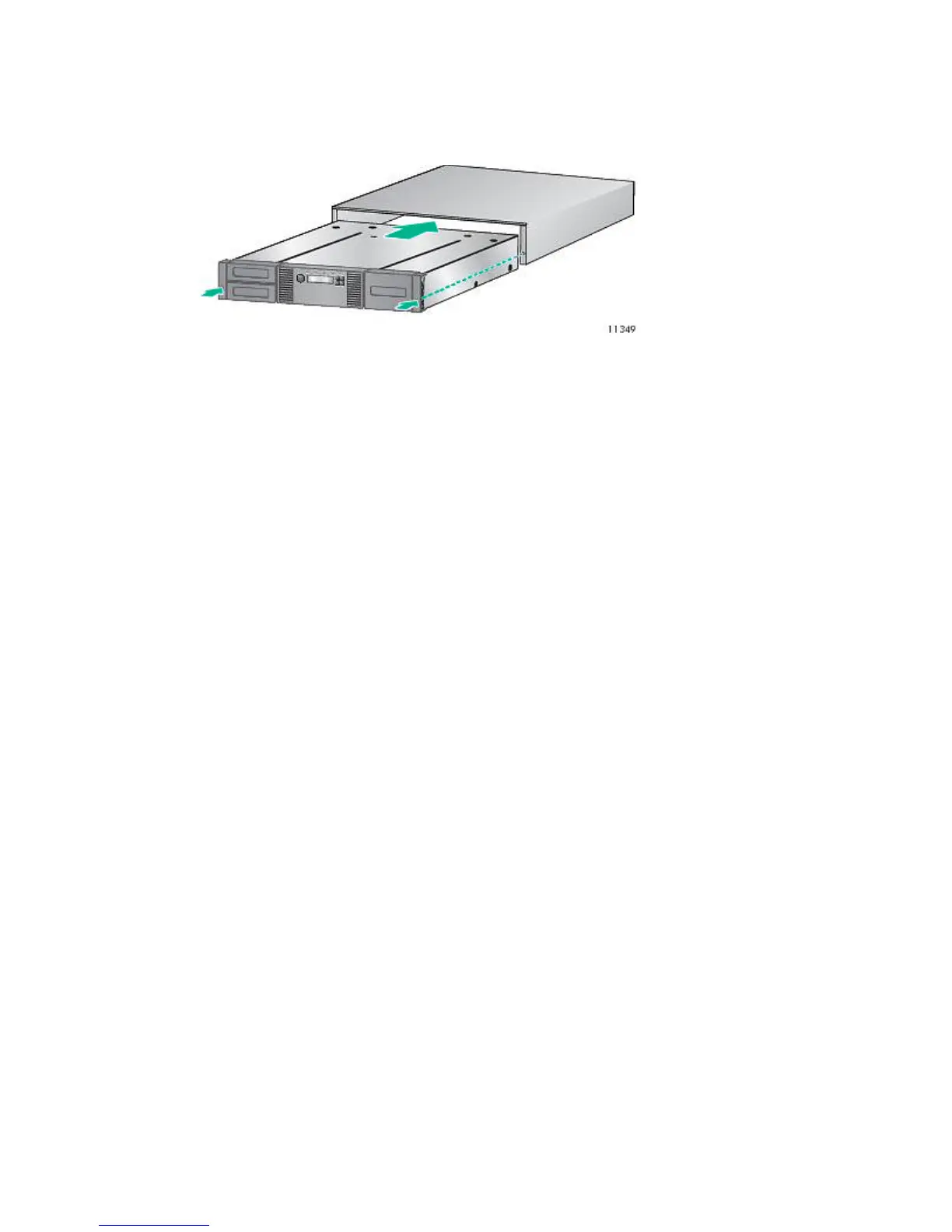

Figure 16 Installing the tabletop conversion cover
3. Tighten the captive screws on the front panel until the cover is secure.
Installing tape drives
If the library does not have a tape drive installed, install the tape drives now. If the library already
has a tape drive and you purchased additional tape drives, you can install them now or wait until
after the library installation is complete.
To install tape drives:
Installing tape drives 33

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
