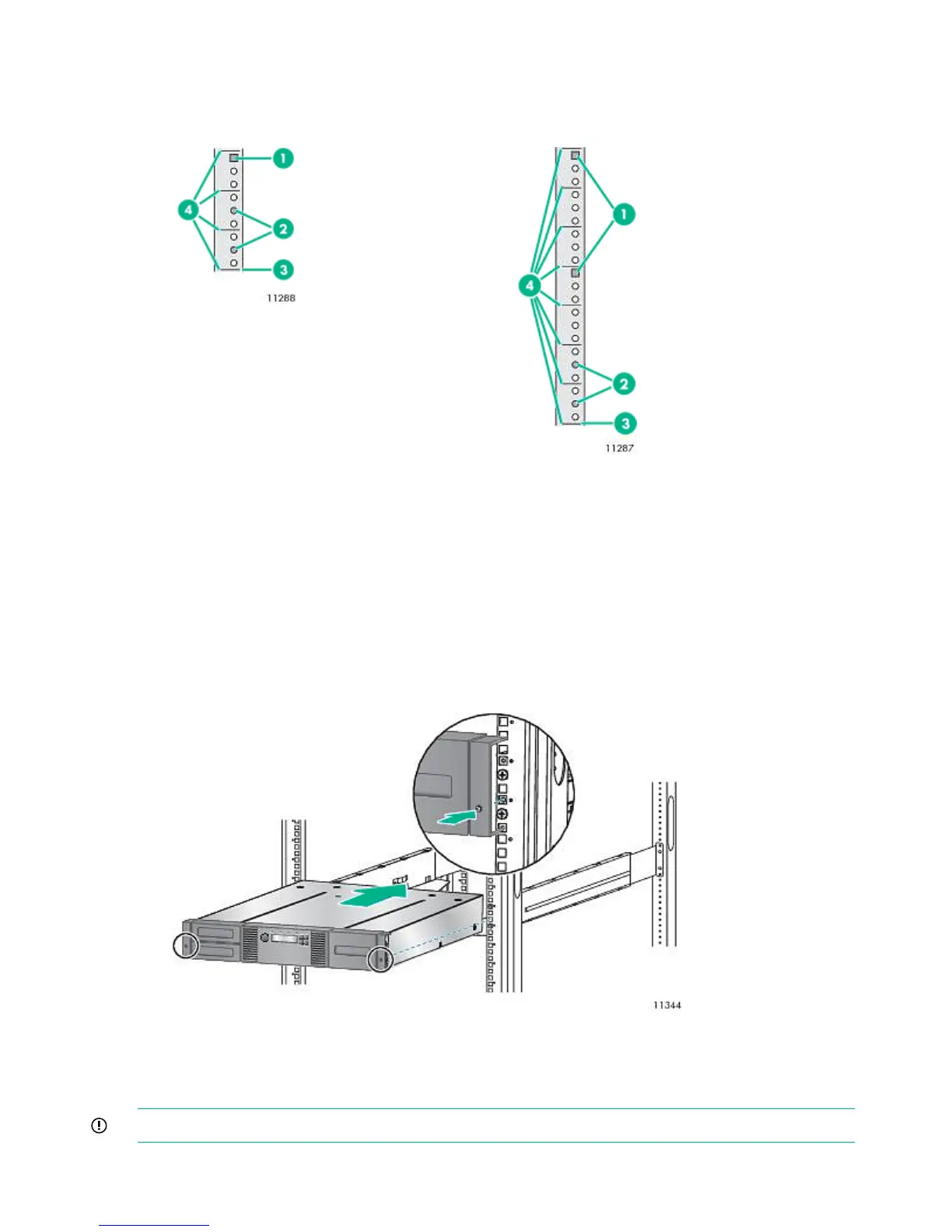

4. For the MSL4048, MSL8048, and MSL8096 insert the clip nuts on the front of the rack in
the locations shown. These will be used to secure the library to the rack.
MSL8048 and MSL8096MSL4048
2. Rail screw location1. Clip nut location
4. U marker3. Bottom of the library
Install the library in the rack
1. Slide the library onto the rails.
2. From the front of the library, secure the front bezel to the rack using a #2 Phillips screw
driver placed through the small holes in the mounting bracket. Tighten the captive screws
on each side of the library until they are seated.
Installing the tabletop conversion kit
The Rack to Tabletop Conversion Kit supports the edges of the library, but is not a structural top.
IMPORTANT: Do not place any weight on top of the tape library, even with the cover installed.
To install the cover:
32 Installing the tape library
To Next Page
