HP StoreEver MSL2024 Service Manual

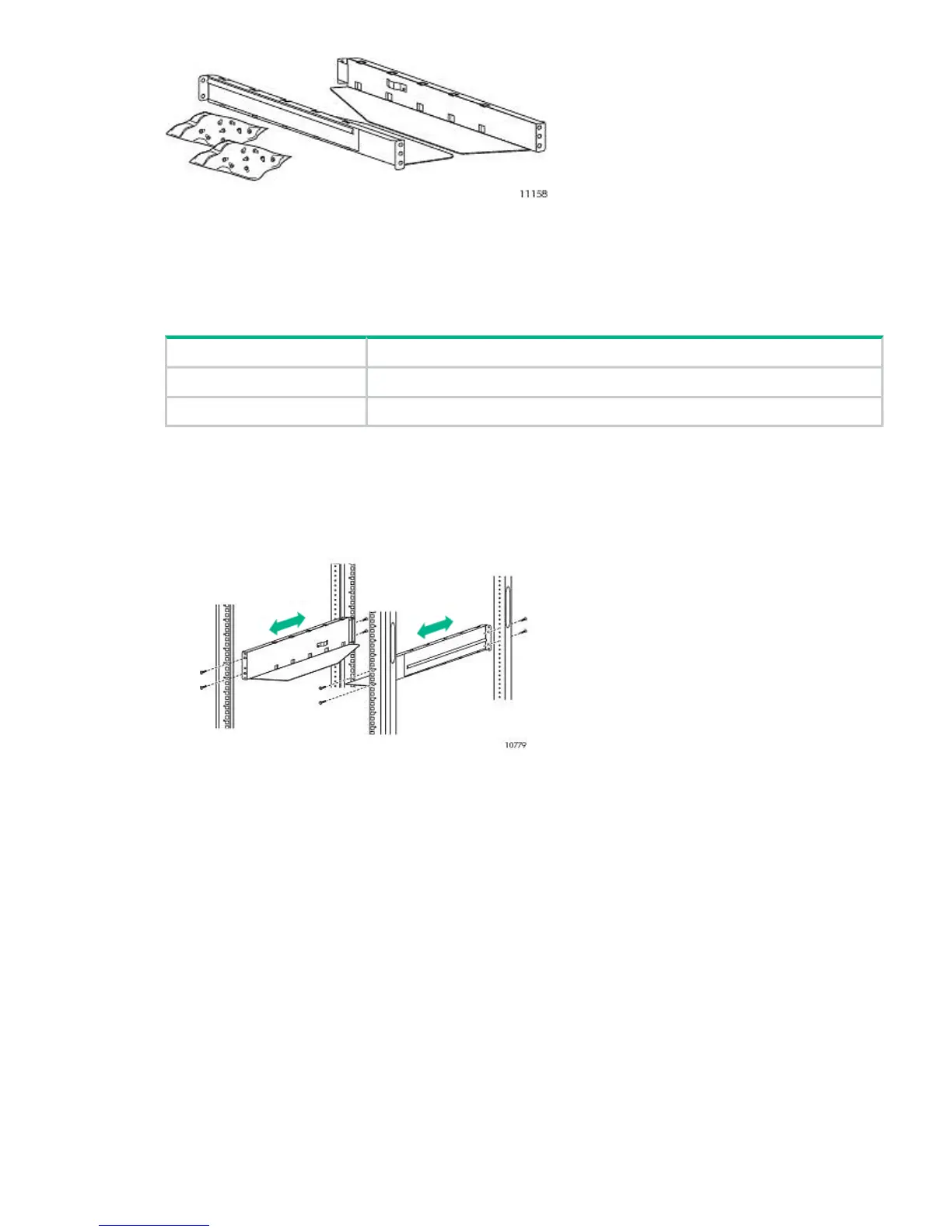

• Two rails
• Hardware packets containing M6 screws.
Select the hardware packet for your rack
Applicable racksPacket label
HPE supported racks with 7.1 mm round holes in the rack column7.1 mm Round-Hole Rack
HPE supported racks with 9.5 mm square holes in the rack column9.5 mm Square-Hole Rack
Install the rails
1. Using the screws from the packet for your rack and a #3 Phillips screwdriver, secure the
front of one rail to the front of the rack. The support platform of each rail is tapered, narrowing
towards the rear.
2. Extend the rail to the depth of the rack and secure the rail to the back of the rack.
3. Repeat steps 1 and 2 to install the other rail.
Installing the library in a rack 31

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
