HP StoreEver MSL2024 Service Manual

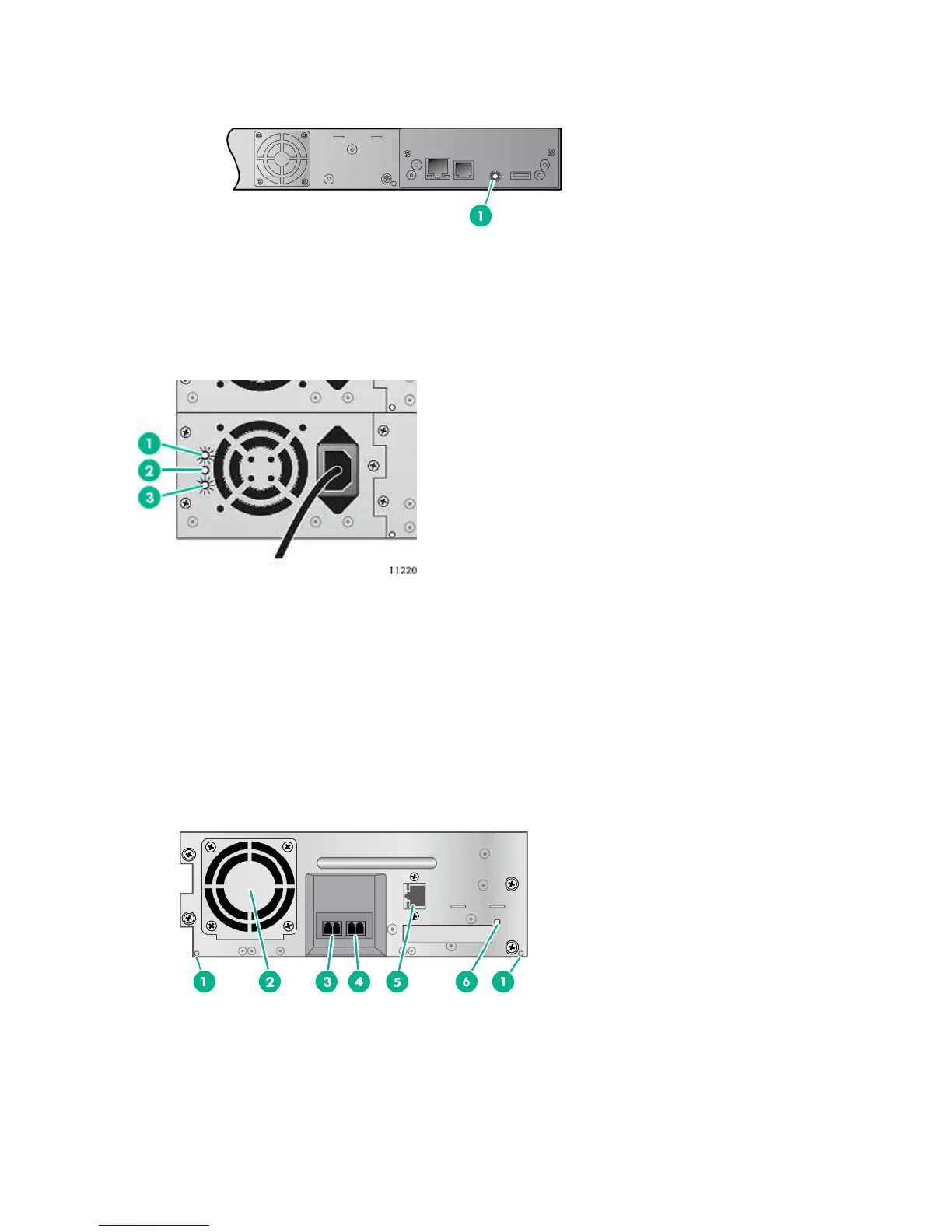

Figure 8 Controller health status indicator location
1. Controller health status LED
Power supply back panel (MSL4048, MSL8084, and MSL8096)
Figure 9 Power supply LEDs
AC power is connected.1. Blue
Fan failure. The fan is running too slow or is defective.2. Yellow
The power supply is producing good power for the library.3. Green
Tape drive back panels
Fibre Channel
LTO-4 and LTO-5 full-height
1. Magazine release hole
2. Fan
3. FC port A
4. FC port B (when present)
12 Features

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
