HP StoreEver MSL2024 Service Manual

5. Tape drive Ethernet port (when present)
6. Tape drive power indicator

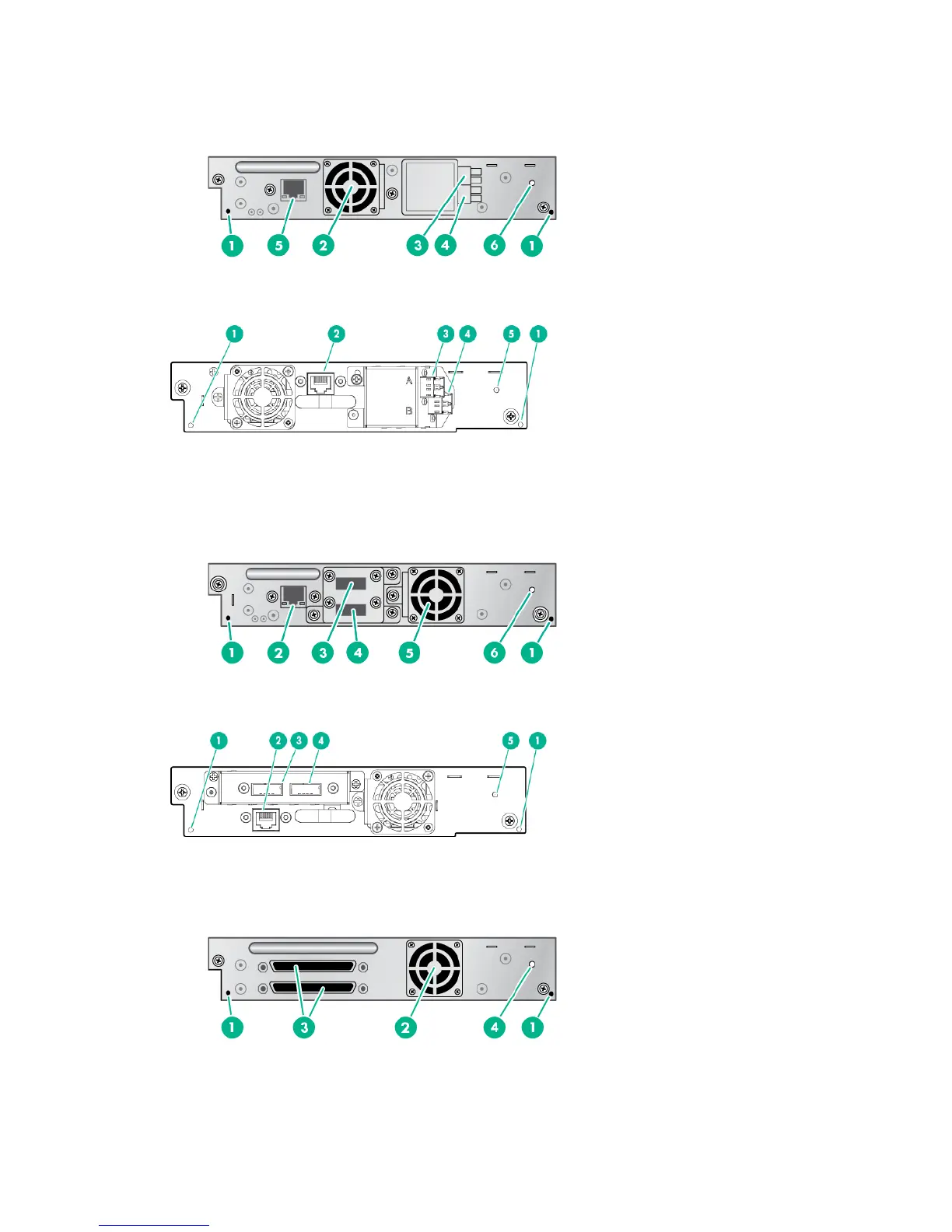

LTO-5 half-height and LTO-6
1. Magazine release hole
2. Fan
3. FC port A
4. FC port B (when present)
5. Tape drive Ethernet port
6. Tape drive power indicator
LTO-7
1. Magazine release hole
2. Tape drive Ethernet port
3. FC port A
4. FC port B
5. Tape drive power indicator
SAS
LTO-4, LTO-5, and LTO-6
1. Magazine release hole
2. Tape drive Ethernet port (when present)
3. SAS port A
4. SAS port B (when present)
5. Fan
6. Tape drive power indicator
LTO-7
1. Magazine release hole
2. Tape drive Ethernet port
3. SAS port A
4. SAS port B
5. Tape drive power indicator
Parallel SCSI
1. Magazine release hole
2. Fan
3. Parallel SCSI ports
4. Tape drive power indicator
Tape drive power indicator
Each tape drive has a green power indicator LED, which indicates that the tape drive is powered
on.
Tape drive back panels 13

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
