HP StoreEver MSL2024 Service Manual

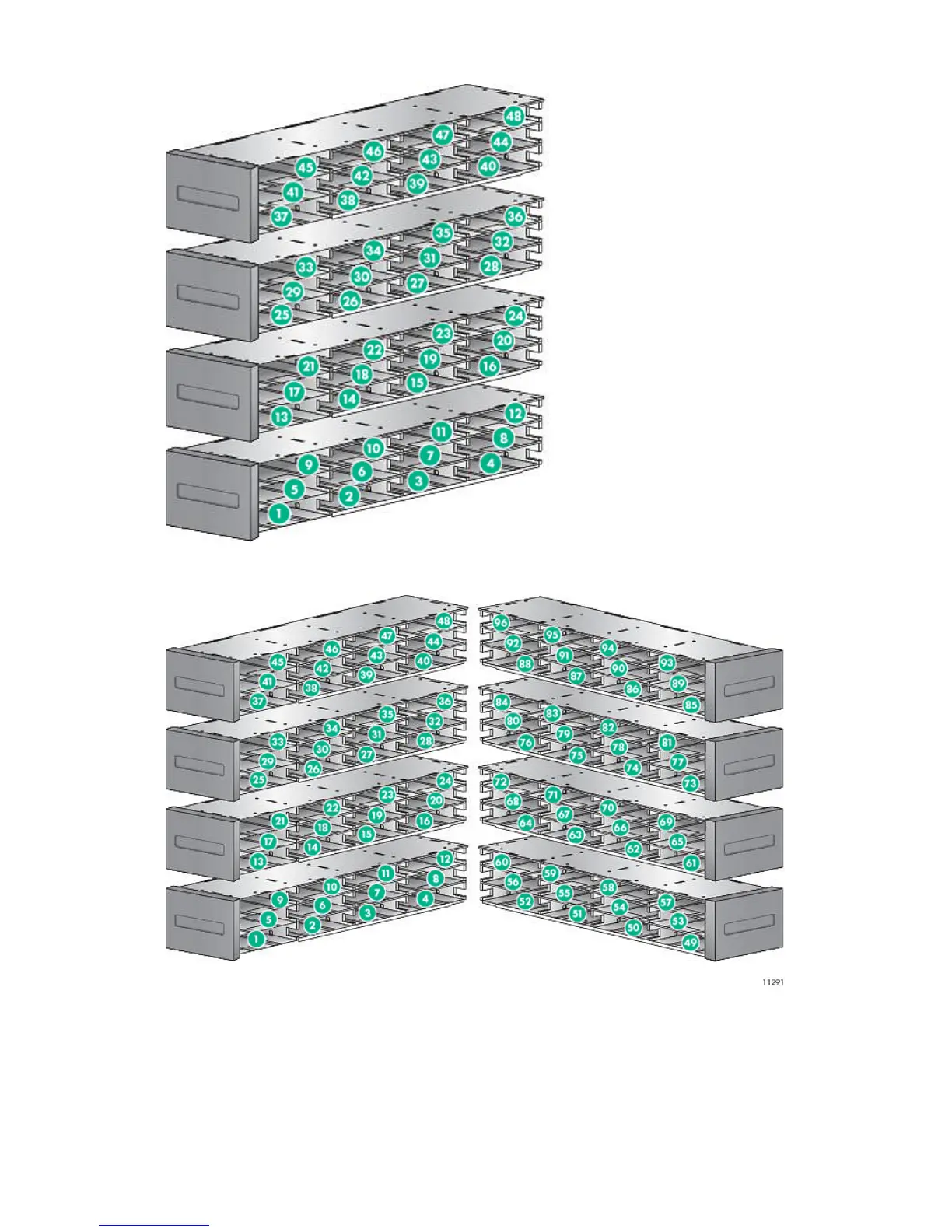

Figure 22 MSL8048 slot numbering with mailslot disabled
Figure 23 MSL8096 slot numbering with mailslots disabled
When the MSL4048 or MSL8048 mailslot, or the MSL8096 lower-left mailslot is enabled, all of
the storage slot numbers are adjusted, as shown in Figure 24 (page 50). The storage slots in
the other magazines are renumbered accordingly.
Magazines 49

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
