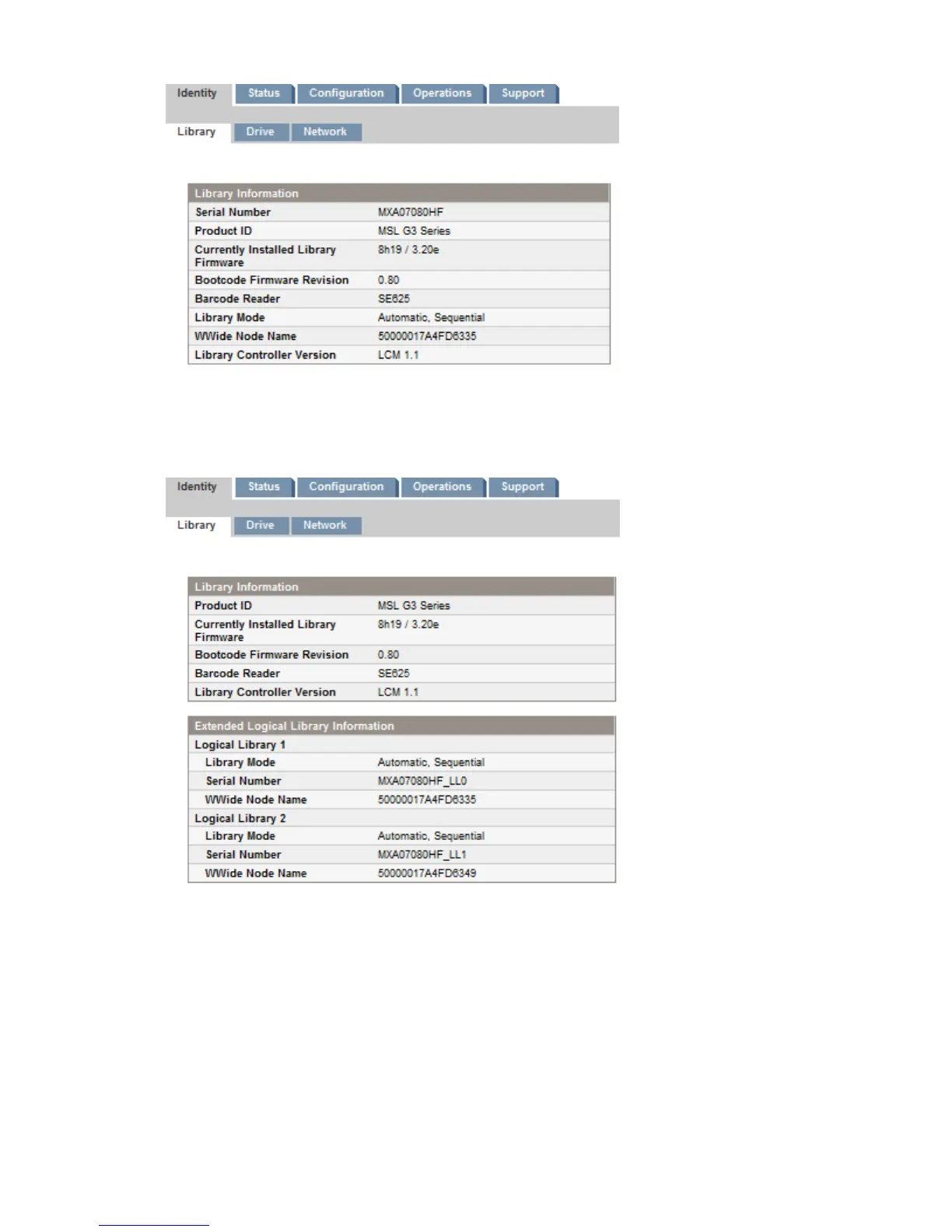

Figure 30 Identity > Library page
When the library is partitioned into multiple logical libraries, the information for the library and
the logical libraries is presented as shown in Figure 31 (page 55).
Figure 31 Identity > Library page with two logical libraries
You can see, but not modify, the following:
• Serial Number — the electronic serial number for the device. It should match the serial
number printed on the device's label, located on the pull out tab under the drive on the back
of the device. When the library is configured into multiple logical libraries, the serial number
includes the serial number on the device and the logical library number.
• Product ID — how the device identifies itself to the host computer.
• Currently Installed Library Firmware x.xx / y.yy
x.xx is the version of the tape library controller firmwareâ—¦
â—¦ y.yy is the version of the robotics firmware.
Using the RMI 55
