HP StoreEver MSL2024 Service Manual

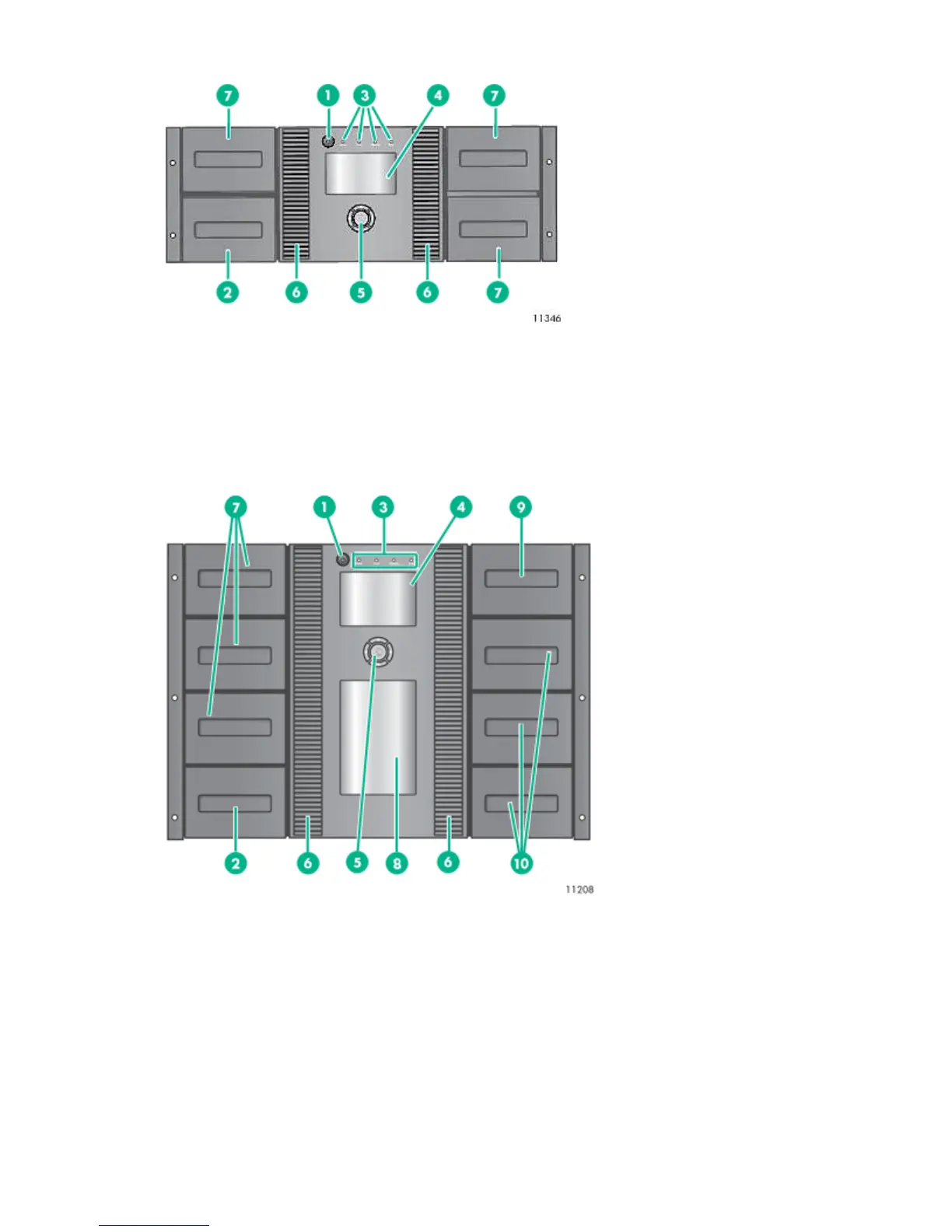

Figure 2 MSL4048 front panel overview
2. Magazine, mailslot location1. Power button
4. Front panel LCD screen3. Front panel LEDs
6. Air vents5. Control buttons
7. Magazines
Figure 3 MSL8048 and MSL8096 front panel overview
2. Magazine, mailslot location1. Power button
4. Front panel LCD screen3. Front panel LEDs
6. Air vents5. Control buttons
8. Observation window7. Magazine
10. Magazine (MSL8096 only)9. 12-slot mailslot (MSL8096 only)
The OCP includes four LEDs that indicate system status information.
Front panel 9

HP StoreEver MSL2024 Specifications

General

Dimensions (WxDxH)	87 x 480 x 806 mm
Media type	Tape Cartridge
Form factor	2U
Product type	Storage auto loader & library
Standard interfaces	Serial Attached SCSI (SAS)
Number of slots (max)	24
Storage media types supported	LTO-7
