FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
In the hot aisle containment, install the camera at the front right position in the aisle.
Procedure
Step 1 (Optional) Install an SD card.
1. Loosen the screws on the front cover of the camera using a wrench, remove the front
cover, and take out the inner cover over the lens, as shown in Figure 3-178.

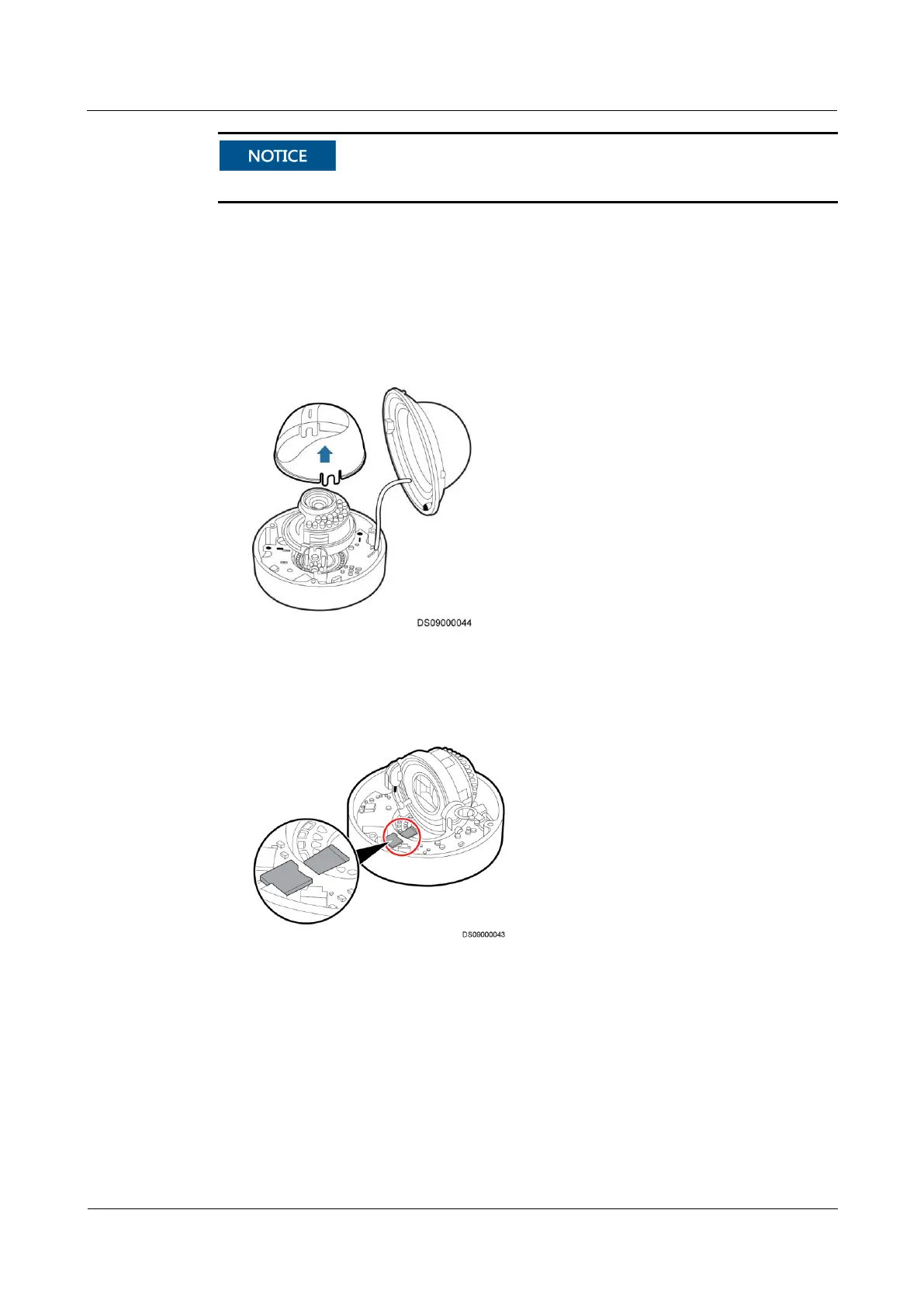

Figure 3-178 Removing front and inner covers
2. Gently insert the SD card into the SD card slot, as shown in Figure 3-179.
Figure 3-179 Installing an SD card
Step 2 Align the mounting holes in the dome camera base with those in the mounting plate, and
screw the camera to the mounting plate, as shown in Figure 3-180.
