FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

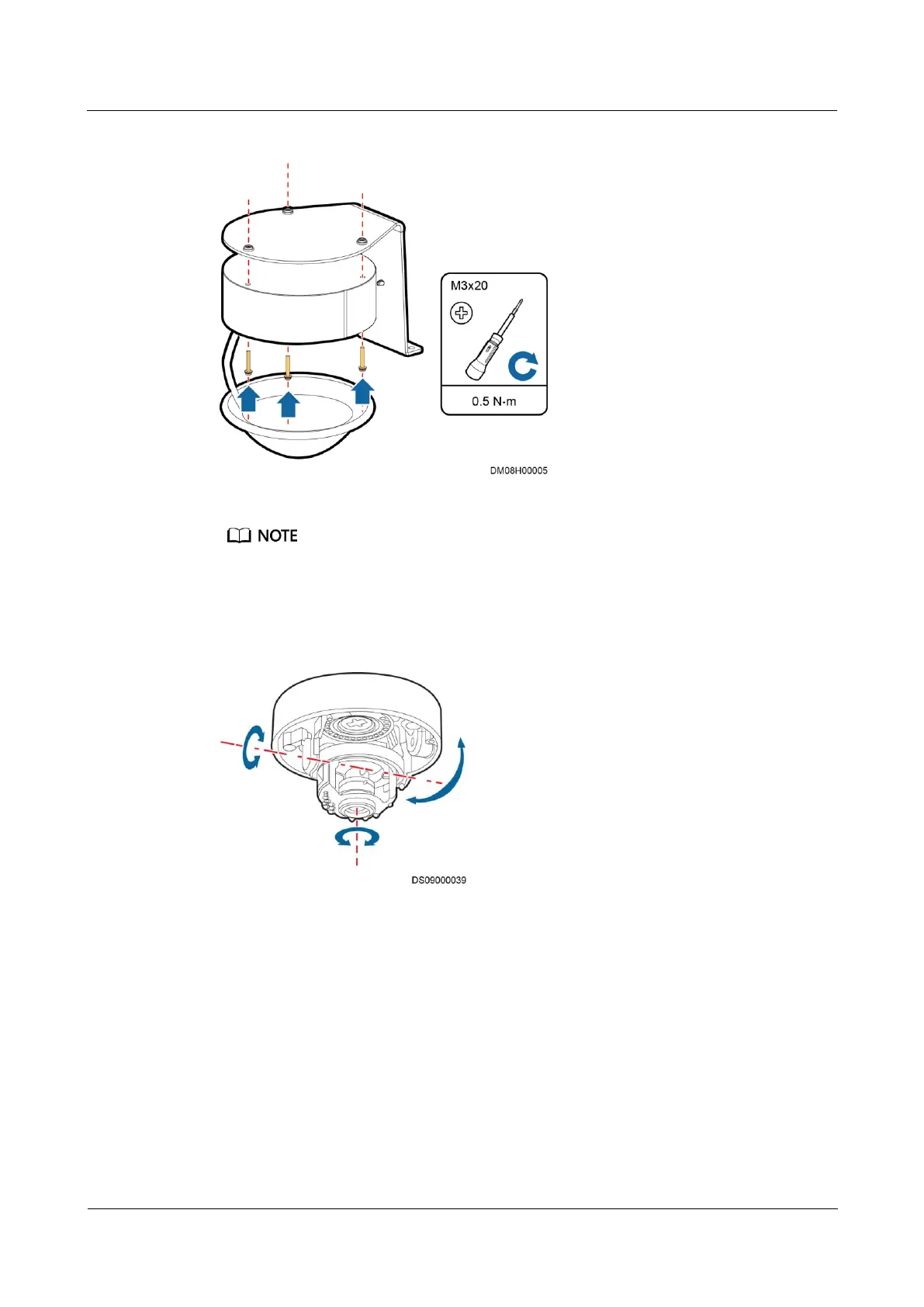

Figure 3-180 Installing a Camera
This camera model provides triple-axis adjustment design. Connect the auxiliary video cable delivered
with the camera to a display device such as the monitor. Rotate the camera 0-355 degrees horizontally,
0-75 degrees vertically, or 0-355 degrees in the revolving direction to achieve an appropriate angle.
Figure 3-181 shows the adjustment methods.
Figure 3-181 Triple-axis adjustment
Step 3 Install the mounting plate with the camera at the top of the front door of the end cabinet, as
shown in Figure 3-182.
