Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
169
(4) Conversion cable end B,
connected to the water detection
cable
(5) Water detection cable end A,
connected to the conversion cable
(6) Water
detection cable

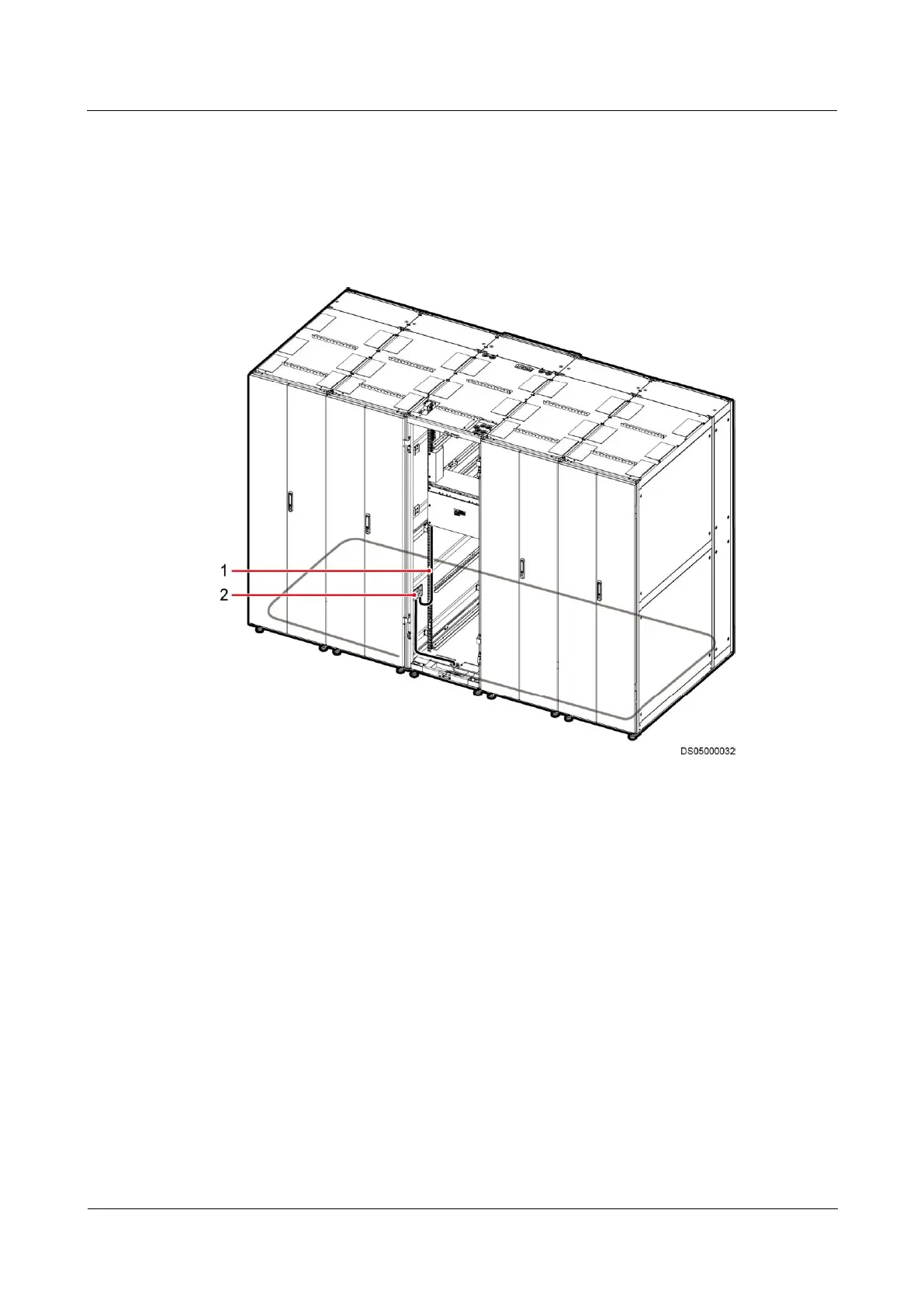

Figure 3-195 Laying out the water detection cable
(1) Factory-installed water detector cable
(2) Water detector
Procedure
Step 1 Install the water detector.
1. Remove the cover from the water detector, as shown in Figure 3-196.
