FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

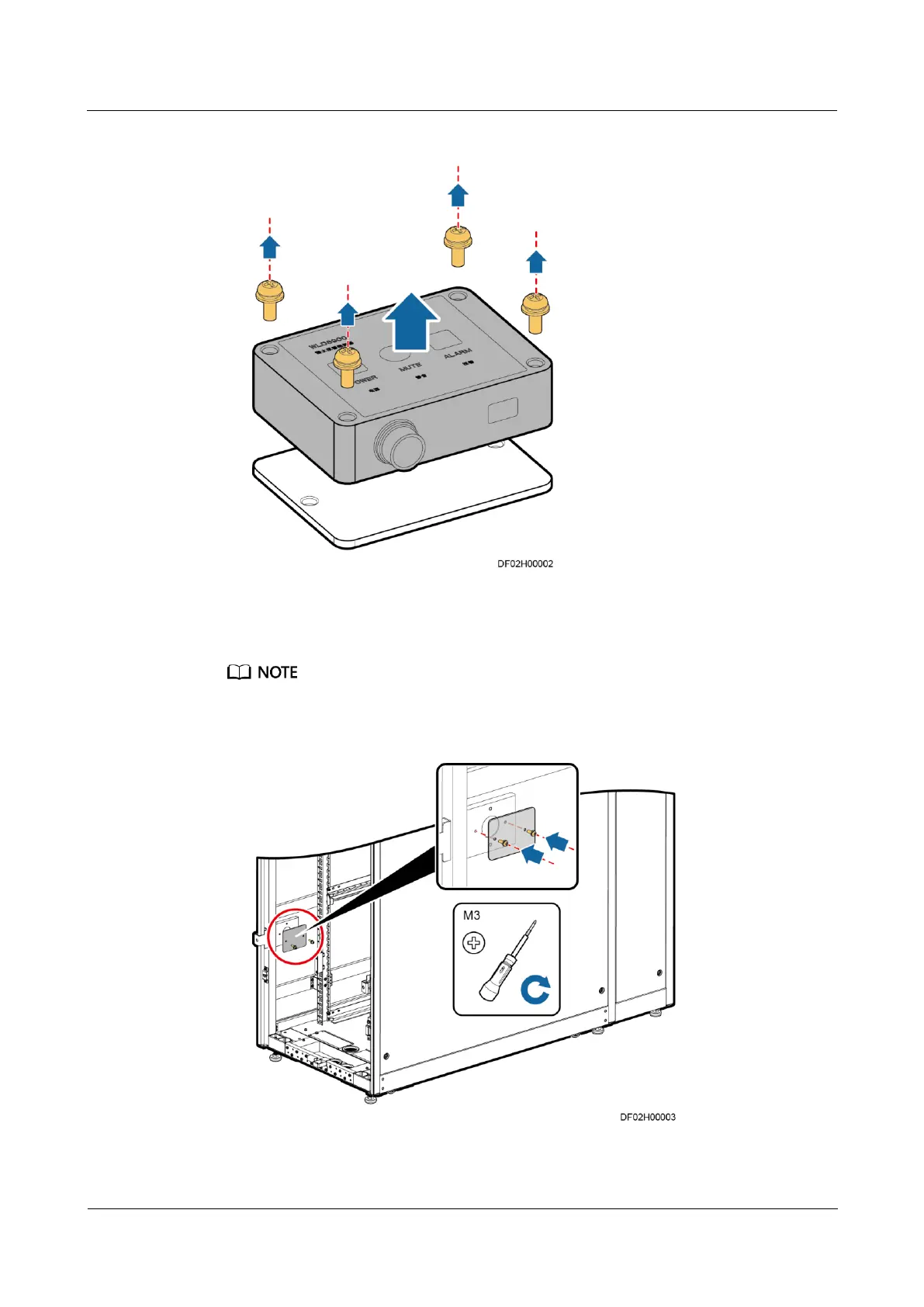

Figure 3-196 Removing the cover from the water detector
2. Install the water detector bottom plate in the Converged Cabinet using two M3 screws,
as shown in Figure 3-197.
The screws for installing a water detector bottom plate are in the Converged Cabinet fitting bag.
Figure 3-197 Installing a water detector bottom plate
