FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

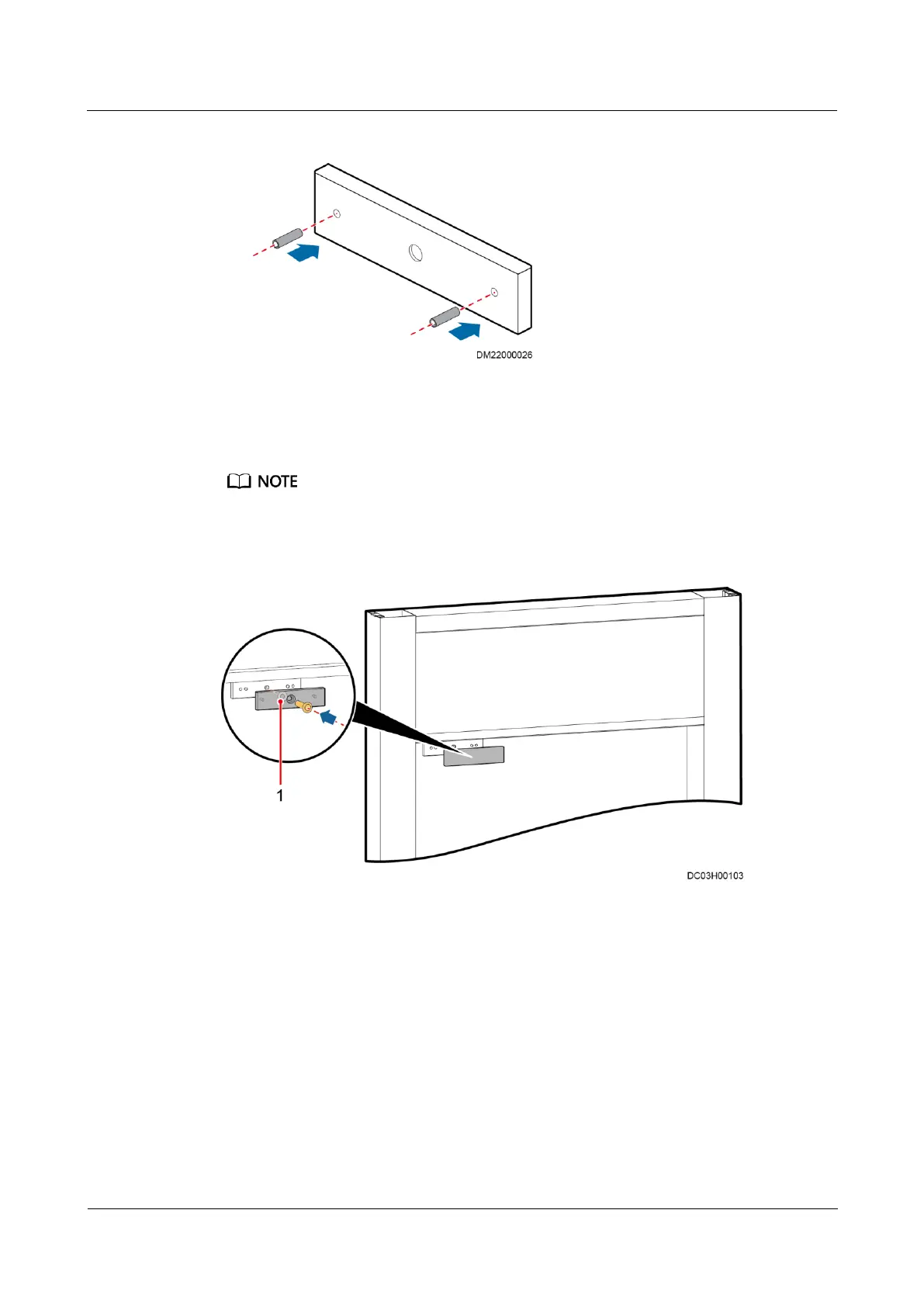

Figure 3-218 Installing positioning pins of a magnet
2. Insert the assembled magnet into the positioning holes in the door, and secure the magnet
to the door using the screws and rubber pad delivered with the magnetic lock, as shown
in Figure 3-219.
When securing the magnet to the door panel, do not over-tighten the screws so that the rubber pad is
elastic. The rubber pad will adjust the magnet to a correct position because of its elasticity.
Figure 3-219 Installing a magnet
Step 8 (Optional) Adjust the magnet.
1. If the magnet cannot attract the door properly after power-on, place a magnetized metal
part near the magnet to check whether the magnet provides a proper magnetic force.
2. If the magnetic lock and the magnet do not work properly, check and troubleshoot the
circuit.
----End
