FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

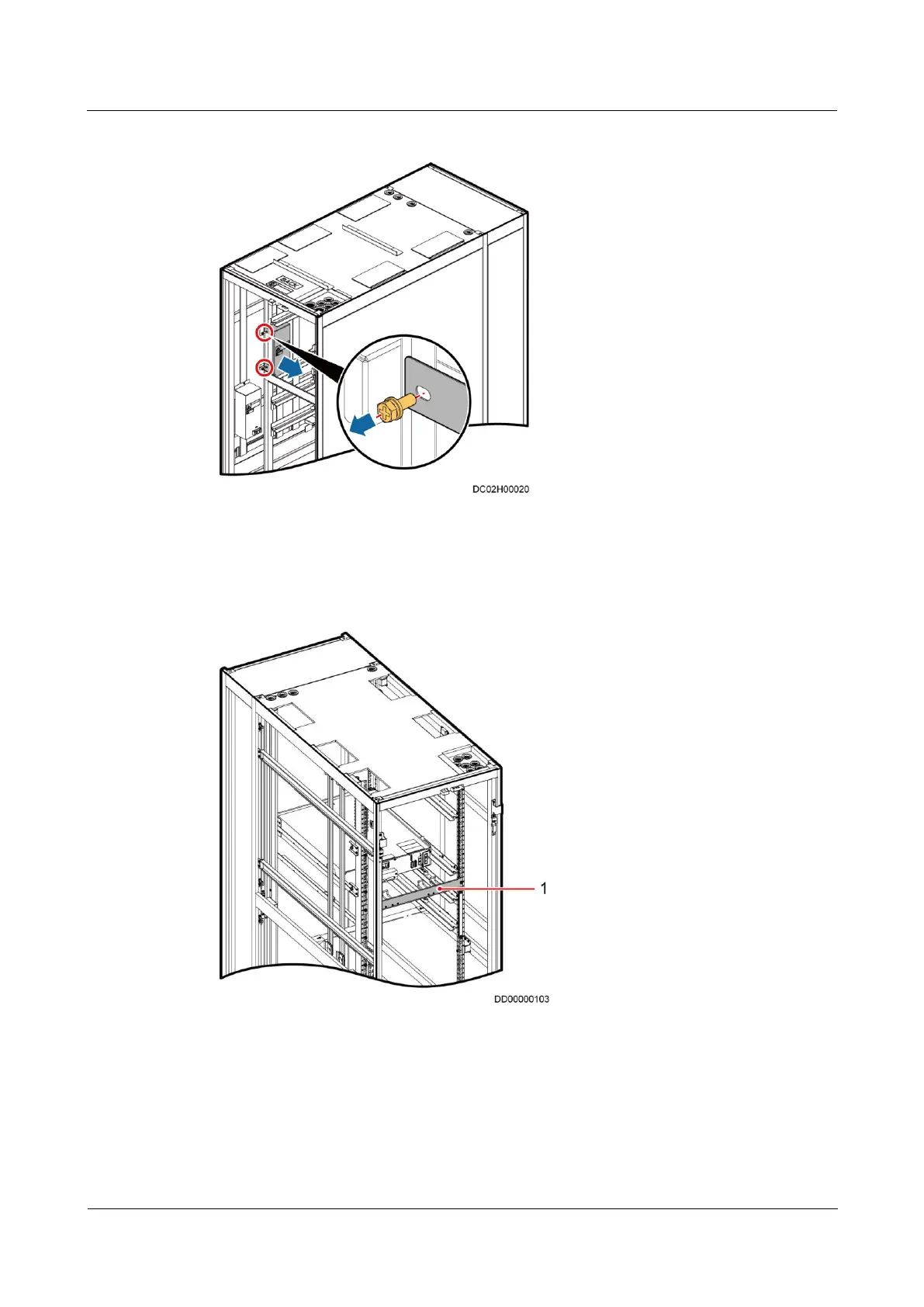

Figure 4-22 Removing the cover from the N busbar
Cables can be bound to the side panel or mounting bar of the Converged Cabinet. Figure 4-23
shows the place for binding cables routed across the cabinet interior.
Figure 4-23 Place for binding cables routed across the cabinet interior
(1) Place binding cables routed across the cabinet interior
