FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
thread: G 1/2 inch, delivered
with the water inlet pipe
G 1/2 inch, connected to a rigid
pipe with outer screw threads
made of PP-R or
other material
(4) Pagoda conversion adapter:
G 1/2 inch, connected to a pipe
with outer screw threads
(6) Hose: made of
EPDM or other
material
The object shown in the broken line box is the water inlet pipe connector with inner screw threads
delivered with smart cooling products. This object and the hose clamp (part 5) are configured in standard
configuration. Other parts are not configured and need to be purchased onsite.
Procedure
Step 1 Take the water inlet pipe out of the smart cooling product fitting bag. Route the pipe through
the water inlet hole at the bottom and connect the pipe to the water inlet solenoid valve, as
shown in Figure 3-66.
Check that the water inlet solenoid valve is tightened with 2-3 circles of screw threads
exposed.

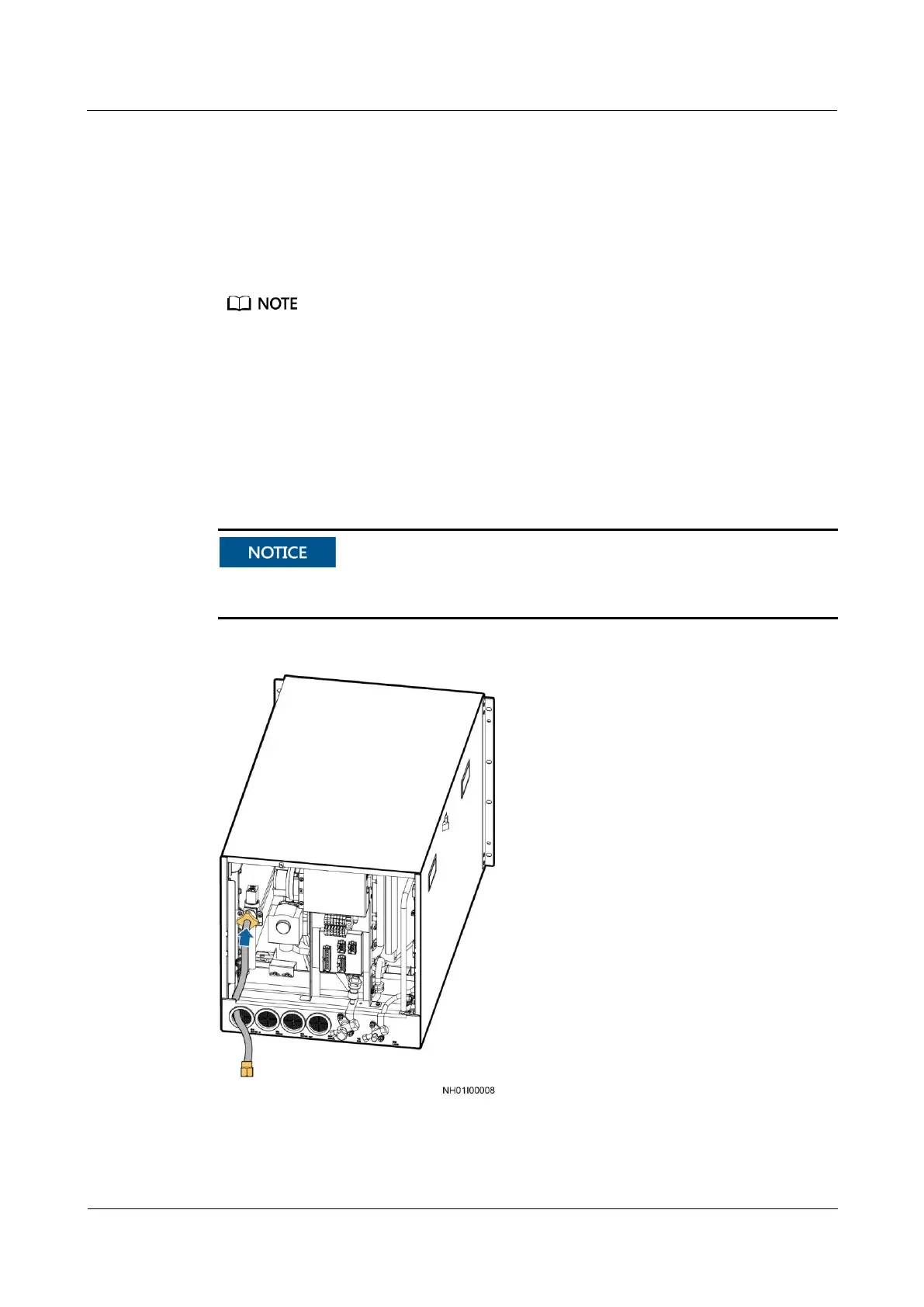

Figure 3-66 Installing the humidifier water inlet pipe
