Preparations
Tool: protective gloves
Material: spare air filters
Documents required: none
Skill requirement: cooling engineer
Procedure
Step 1 Open the rear door, and rotate the fixing cards on the two sides of the gauze, as shown by 1 in
Figure 5-9.
Step 2 Pull out the air filter, as shown by 2 in Figure 5-9.

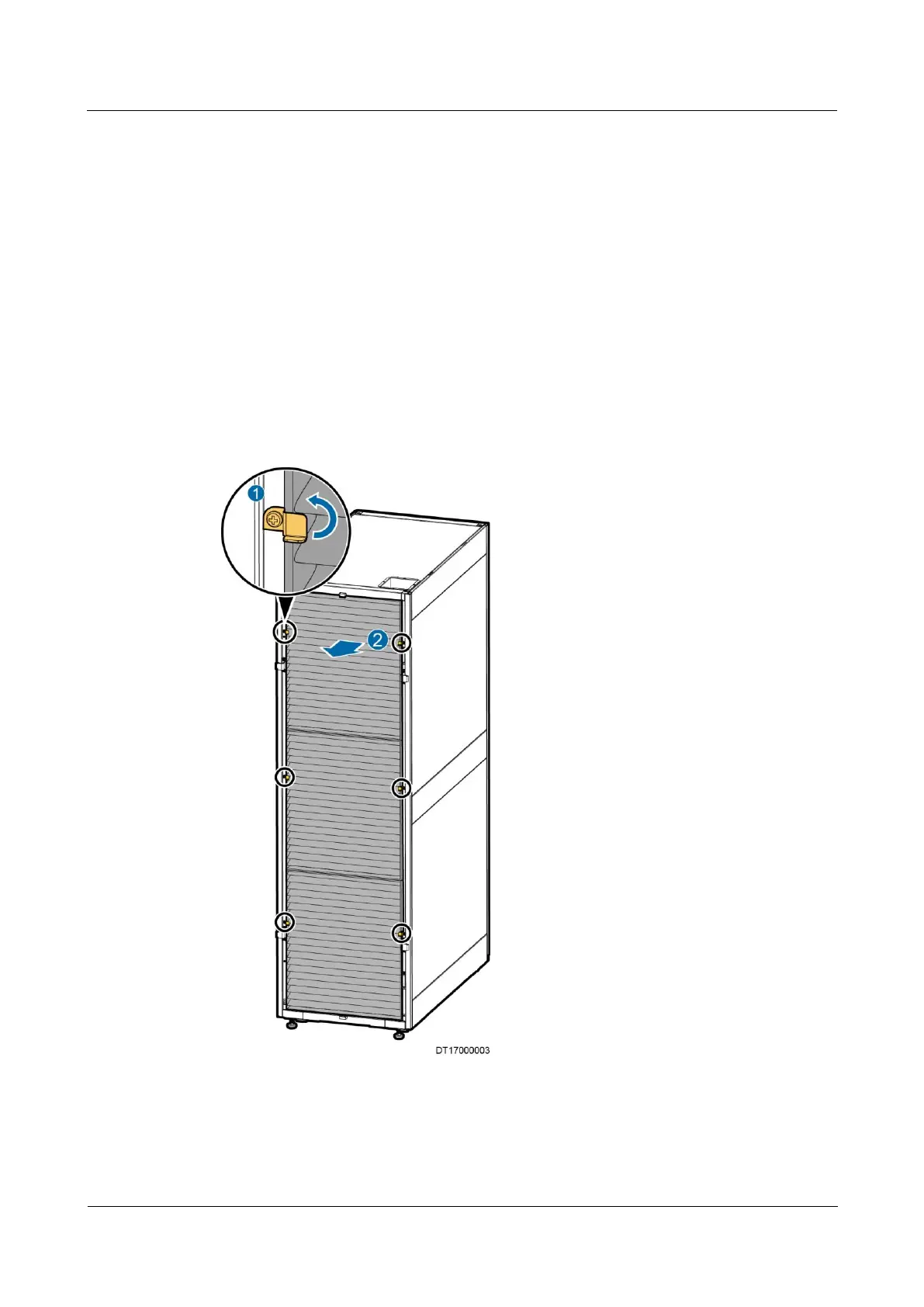

Figure 5-9 Removing the air filter
Step 3 Remove air filters at the middle and bottom in the same way.
Step 4 Install new air filters.
