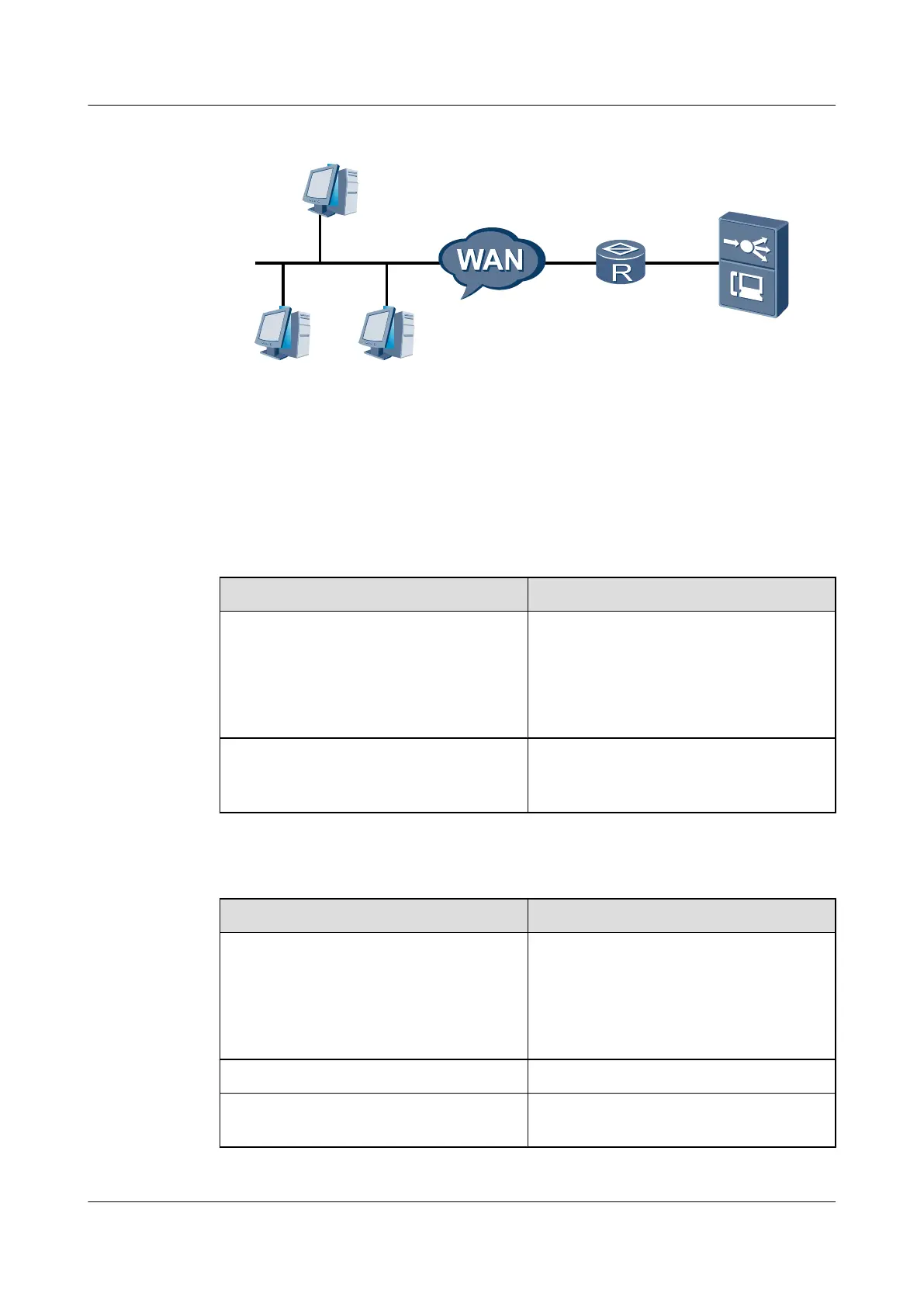

Figure 1-14 Network example for outband management through telnet in a WAN
PC
PC
PC
Router
LAN
Access node
Data Plan
Table 1-12 and Table 1-13 provide the data plan for the outband management through telnet in
a LAN and in a WAN respectively.
Table 1-12 Data plan for the outband management through telnet in a LAN
Item Data
Maintenance Ethernet port of the MA5600T/
MA5603T/MA5608T
IP address: 10.50.1.10/24
NOTE
By default, the IP address of the maintenance
Ethernet port (ETH port on the control board) is
10.11.104.2, and the subnet mask is
255.255.255.0.
Maintenance terminal IP address: 10.50.1.20/24 (in the same subnet
as the IP address of the maintenance Ethernet
port)
Table 1-13 Data plan for the outband management through telnet in a WAN
Item Data
Maintenance Ethernet port of the MA5600T/
MA5603T/MA5608T
IP address: 10.50.1.10/24
NOTE
By default, the IP address of the maintenance
Ethernet port (ETH port on the control board) is
10.11.104.2, and the subnet mask is
255.255.255.0.
Maintenance terminal IP address: 10.10.1.10/24
Router port connecting to the MA5600T/
MA5603T/MA5608T
IP address: 10.50.1.1/24
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
28
