Hunter X-CORE

6

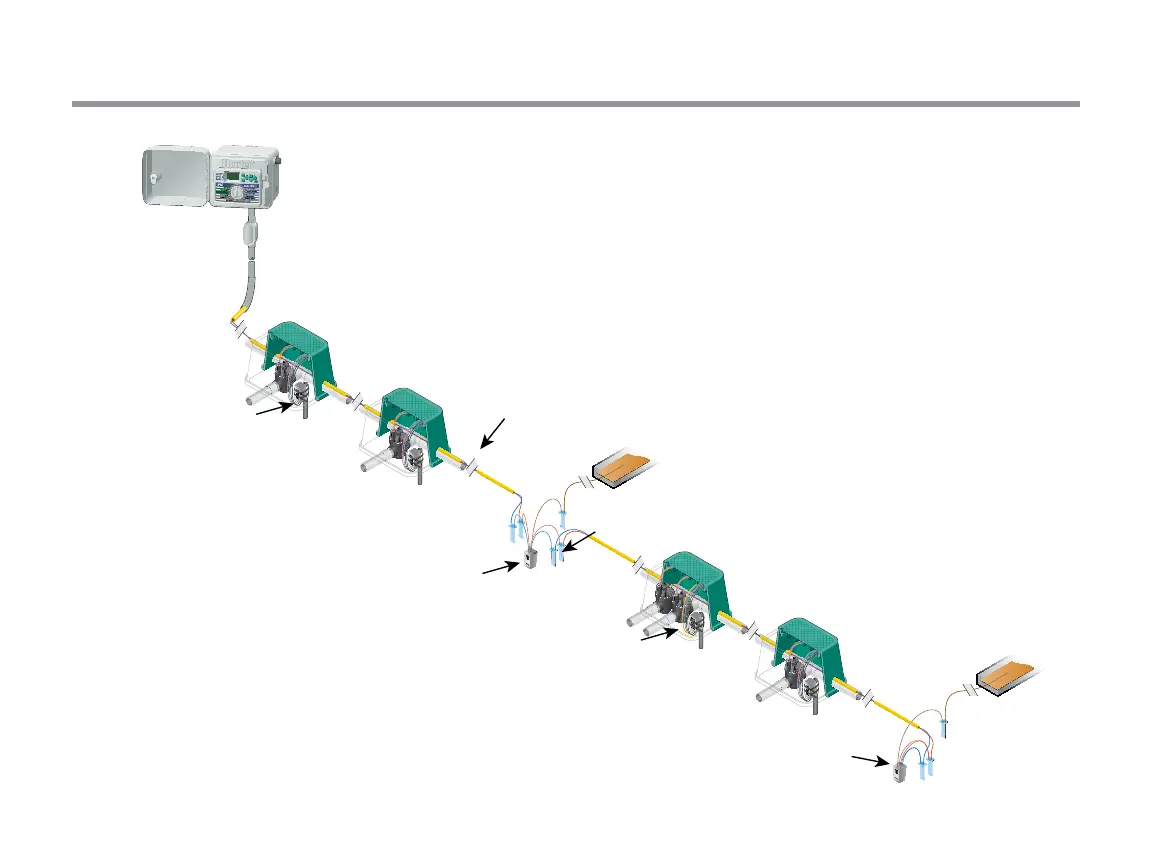

SYSTEM OVERVIEW
I-CORE CONTROLLER
DUAL -1
(OnE-STATiOn DEcODEr)
DUAL-S SURGE ARRESTOR
(rEcOMMEnDED EvEry 1000 fEET, 330 M)
DUAL-2
(TwO-STATiOn DEcODEr)
DBr/y-6 wATErprOOf cOnnEcTOrS
in ALL TwO-wirE pATH SpLicES
DUAL-S
(pLAcED AT EnD Of TwO-wirE pATH)
MAX DISTANCE TO END OF TWO-WIRE PATH
ID1 WIRE (14 Ga) 5000 fEET (1500 m) Or
ID2 WIRE (12 Ga) 7500 fEET (2300 m)
GROUND PLATE
(Or GrOUnD rOD)
MAxiMUM DiSTAncE 5000 fEET (1500 M)
TO EnD Of TwO-wirE pATH
