Hunter X-CORE User Manual

7
1. Route a wire pair from the pump relay into the controller housing.
2. Connect the pump common wire to the terminal slot “COM”
(Common) and the remaining wire from the pump relay to the P/MV
screw slot.
Relay holding current draw must not exceed .28 amps (24 VAC).
Do not connect the controller directly to the pump –
damage to controller will result.
NOTE: Complete this section only if you have a pump
and pump start relay installed. A pump start relay is an
electronic device that uses a signal current from the
irrigation controller to activate a pump to provide water
to your system.
When a pump is to be operated by the controller, a pump start relay is
typically used. Hunter offers a full range a pump start relays for most
applications.

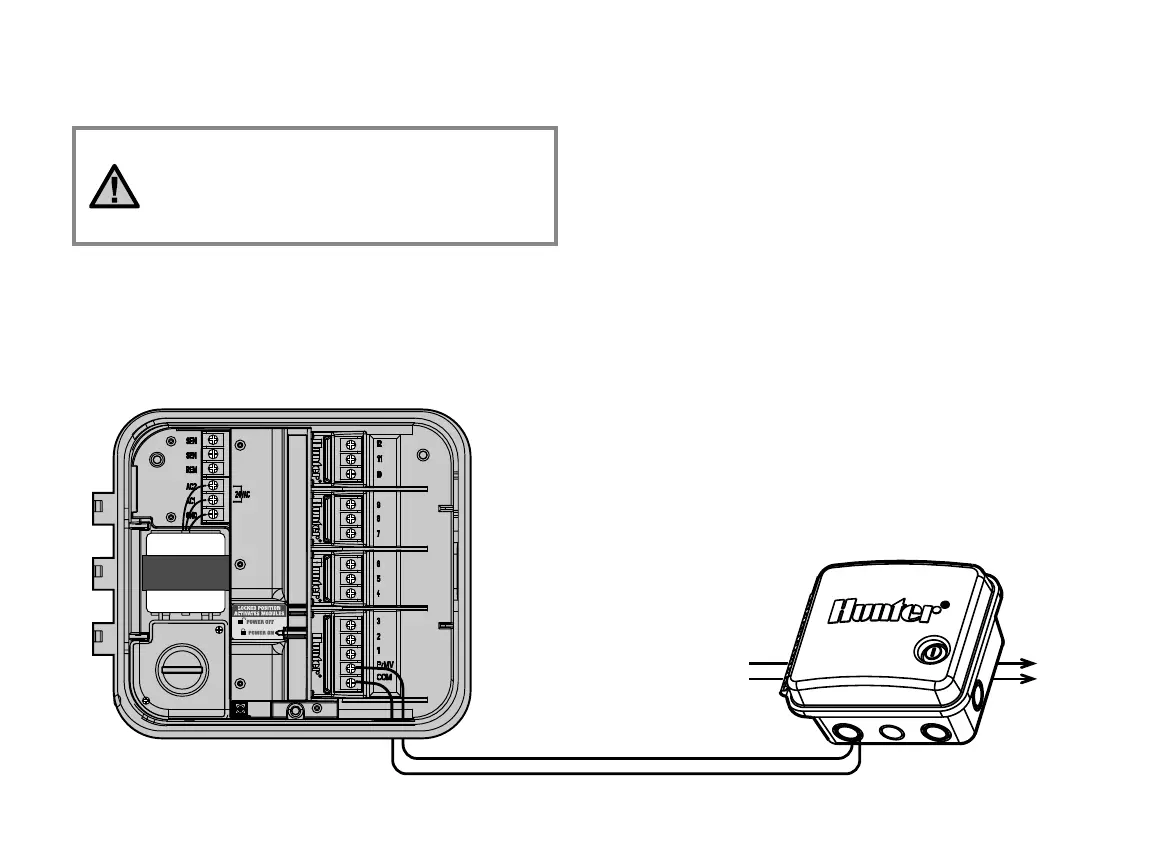

CONNECTING A PUMP START RELAY .................................................................................
High Voltagle in to Relay
To Pump
Pump Relay Common Wire
PSR Series
Pump Start Relay
Pump Relay Wire

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
